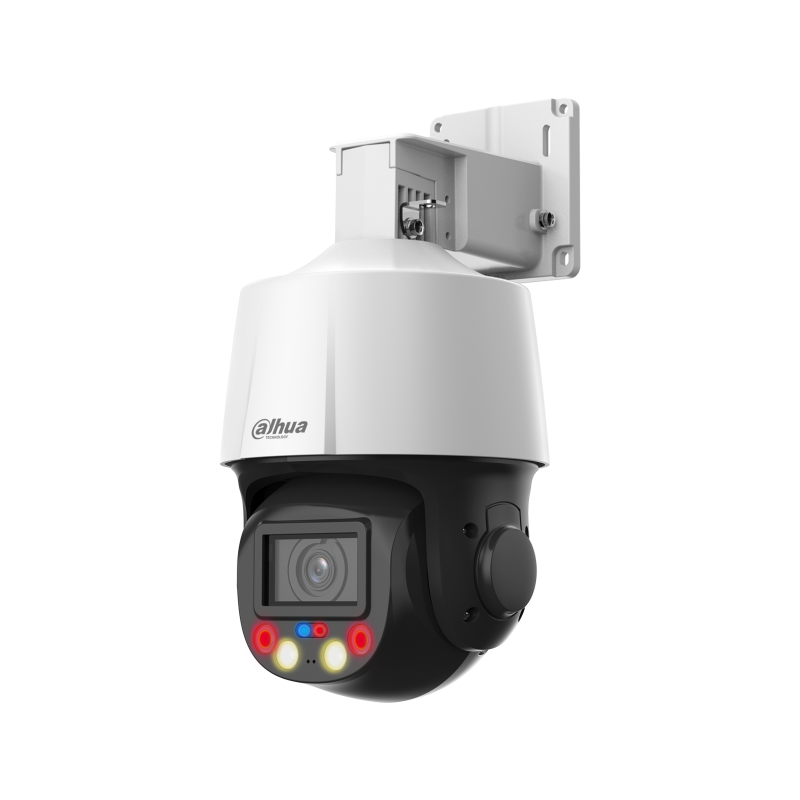

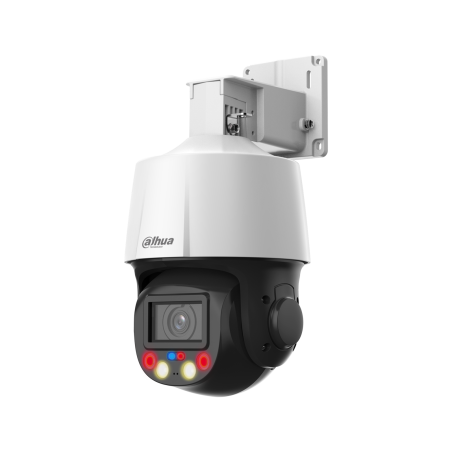

IP camera Dahua SD3E405DB-GNY-A-PV1-27135
€342.72
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 4 Megapixel Progressive CMOS |
| RAM/ROM | 512 MB/128 MB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/1 s–1/30,000 s |
| Minimum illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 50 |
| IR On/Off Control | Priority to Zoom/Manual/Auto/Off |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Priority to Zoom/Manual/Auto/Off |
| Number of fill LED lights | 2 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 355° (pan) and -15° - 90° (tilt) |
| Manual mode speed | 0.1° ~36° /s (pan); 0.1° ~25.8° /s (tilt) |
| Preset speed | 35.7° /s (pan); 27.1° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| On power failure | Yes |
| Default motion detection | Presets |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 13.5 mm |
| Zoom | 5x optical; 16x digital |
| Max. aperture | F1.6 ~ F3.0 |
| Field of view | 94.9° - 30.1° (H) |
| Iris Type | Fixed aperture |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 1.5 m |
Video
| Frames per second | Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 720p/CIF @(1–25/30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H.264: 96Kbps - 14848Kbps H.265: 38Kbps - 8960Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
Perimeter protection
| Performance | Line crossing, intrusion, fence jumping, loitering detection; abandoned/missing object; fast moving through perimeter; parking detection in a defined perimeter; crowd gathering; vehicle/human alarm classification |
| AI features | Abandoned/missing object, Defog (electronic fog removal), EIS (Electronic image stabilization), Intrusion, Parking space detection, Perimeter protection, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing, Automatic object tracking, TiOC (red and blue light alarm) |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Audio output | 1 (LINE OUT; bare wire) |
| Alarm input/output | 1/1 |
| Audio compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Compatibility | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | DMSS; DSS PRO |
| Compatible accessories | PFA121, PFA152-E |
Power supply
| Power supply | 12 VDC, 2 A ± 10% PoE+ (802.3at) |
| Power consumption | Max. 15W |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | 142.6 mm × 140 mm × 236.1 mm |
| Net weight | 1.5 kg |
| Gross weight | 2.1 kg |
