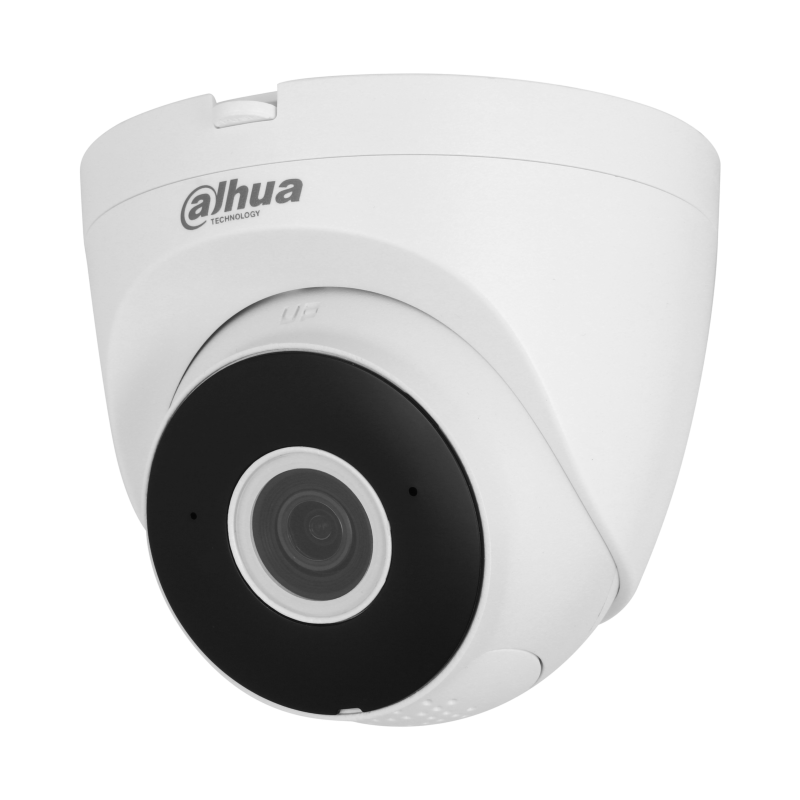

IP camera Dahua IPC-HDW1430DT-STW-0280B
€103.02
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Wireless |
| Color | White |
| Image sensor | 1/3” 4 Megapixel progressive CMOS |
| RAM/ROM | 64 MB/16 MB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 1 |
| Storage | Micro SD card (256G) |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 90° (H) |
| Focus control | Fixed |
| Minimum focus distance | 1 m |
Video
| Frames per second | Main stream: 2560 × 1440 (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) |
| Video compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 36 Mbps incoming |
| Bitrate | H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / DWDR |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0° / 180° |
| Mirror image | Yes |
Smart features
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
Additional ports
| Audio compression | G.711a; G.711Mu |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G |
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Compatibility | ONVIF (Profile S/Profile T); CGI; P2P |
| Max. number of users | 6 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS, DSS, DMSS |
| Compatible accessories | PFA13G, PFA109, PFA152-E, PFB220C |
Power supply
| Power supply | 12V DC |
| Power consumption | Max. 6.1 W (12 VDC) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø109.9 mm × 102.2 mm |
| Net weight | 0.352 kg |
| Gross weight | 0.53 kg |
