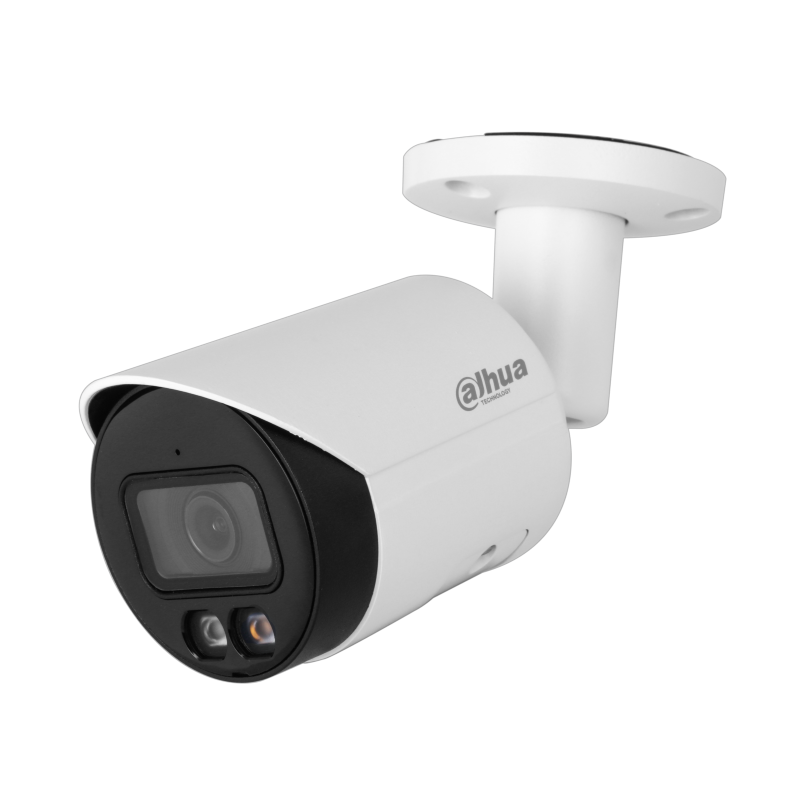

IP camera Dahua IPC-HFW2449S-S-IL-0360B

€164.22
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeBullet
SeriesWizSense
ColorWhite
Image sensor1/2.9” 4 Megapixel Progressive CMOS
RAM/ROM128 MB/128 MB
Resolution4M (2688 × 1520)
Effective pixels4
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs1
Fill light (white light) distance up to30 m
Fill light on/offAuto/manual
Number of fill LED lights1
StorageFTP; Micro SD card (up to 256 GB); SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation)

Lens

LensFixed
Focal length3.6 mm
Mounting typeM16
Max. apertureF1.6
Field of view95° (H)
Iris TypeFixed aperture
Minimum focus distance1.6 m

Video

Frames per secondMain stream: 2688 × 1520@(1–20 fps)/2566 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
Bandwidth36 Mbps incoming
BitrateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 2688 × 1560 resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes
Low-light visibility technologyFull-Color
Full-ColorYes

Perimeter protection

PerformanceLine crossing, intrusion (both functions support classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) searchSmart search – works together with Smart NVR for more specialized search
AI featuresPerimeter protection, Privacy masking, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), Line crossing, Intrusion

Smart features

Motion detectionyes
Full Color technologyyes
Intelligent video surveillanceLine crossing; Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnected; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; SMD; voltage detection; security exception

Certification

CertificationsCE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B

Additional ports

Audio compressionG.711a; G.711Mu; PCM; G.726
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
CompatibilityONVIF (Profile S/Profile T); CGI; P2P; Milestone
Max. number of users6
Web browser live viewChrome; IE9 or later; Firefox
Management softwareDSS, DMSS
Compatible accessoriesPFA130-E, PFA134, PFA152-E

Power supply

Power supply12V DC/PoE (802.3af)
Power consumptionMax. 4.4 W (12 VDC); 5.2 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH
Storage temperature-40°C to +60°C
Protection ratingIP67

Construction

MaterialMetal
Dimensions166.2 mm × 70.0 mm × 70.0 mm
Net weight0.48 kg
Gross weight0.59 kg
Dahua
BIT-1720048_3

Specific References

ean13
6923172537751
