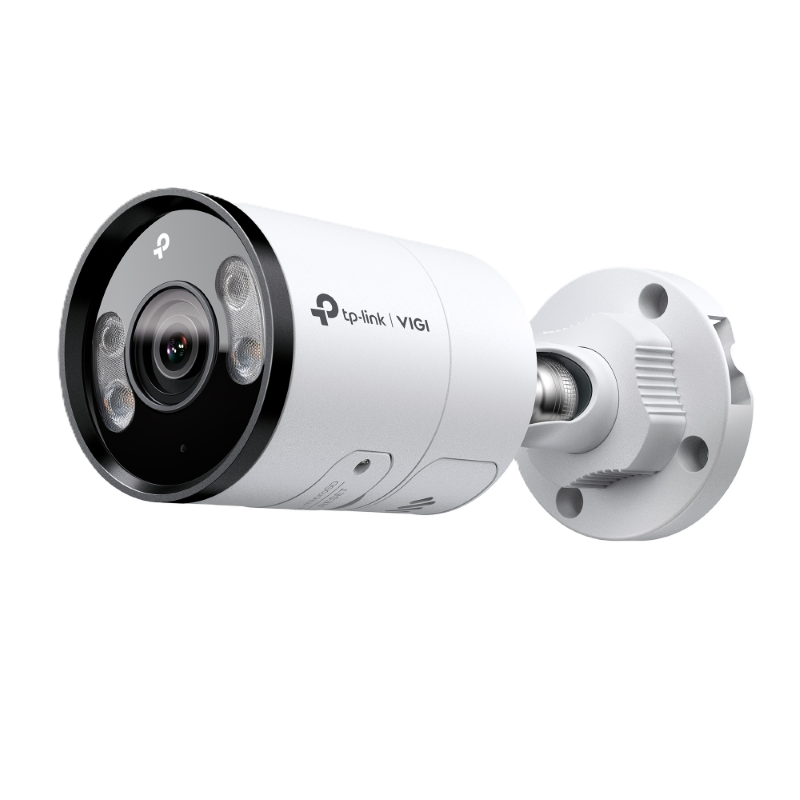

IP camera VIGI INSIGHT S345 - 6.0
€193.19
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Insight |
| Color | White |
| Image sensor | 1/2.7” 4 Megapixel Progressive CMOS |
| Resolution | 4M (2688 × 1520) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/3 to 1/10000 s |
| Minimum illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto/Off |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual/off |
| Number of fill LED lights | 2 |
Camera
| Signal-to-noise ratio | > 52dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 6.0 mm |
| Mounting type | M12 |
| Max. aperture | F1.6 |
| Field of view | 52.7° (H) |
Video
| Frames per second | Main stream: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; Sub stream: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Streaming capability | 3 main streams, 3 sub streams |
| Bitrate | 256 Kbps - 6 Mbps |
| Bitrate control | CBR/VBR |
| OSD menu | Yes |
| BLC | BLC / WDR |
| WDR | 120dB |
| Noise reduction | 3D DNR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | 4 zones |
| Region of interest | yes |
Perimeter protection
| AI features | Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Sound Detection, SMD Plus (human/vehicle detection), Line crossing, Abandoned/missing object |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; exception |
Certification
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Additional ports
| Audio compression | G.711 alaw |
| Audio sample rate | 8KHz |
| Audio bitrate | 64 Kbps per channel |
| Built-in microphone | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Compatibility | ONVIF Profile S/T |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
Power supply
| Power supply | 12 VDC (±5%); PoE (802.3af/at) |
| Power consumption | Max. 9.7 W (12 VDC); 10.7 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | 184 mm × 74 mm × 74 mm |
| Net weight | 0.525 kg |
