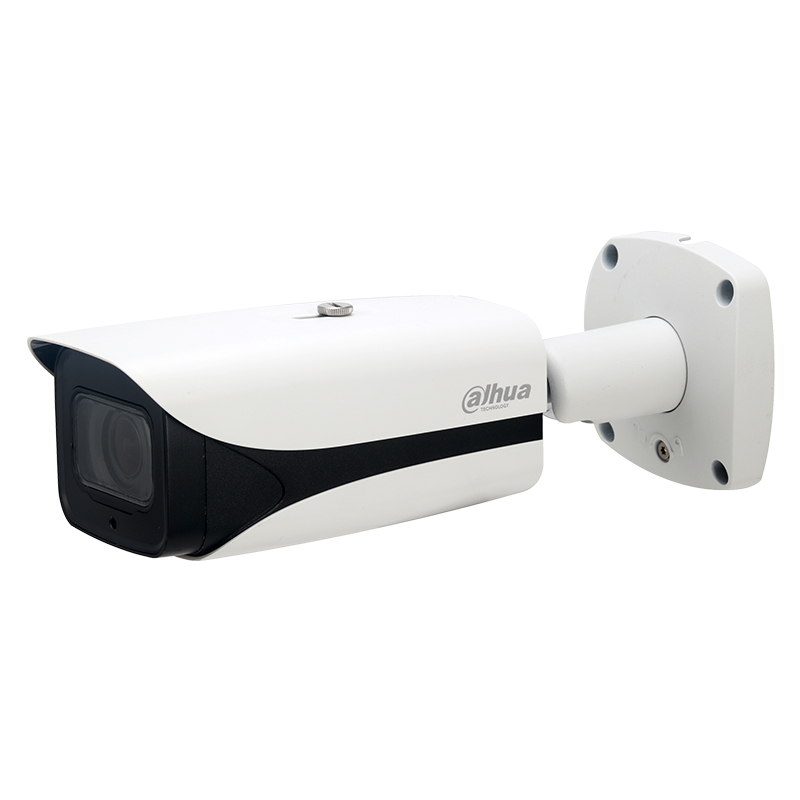

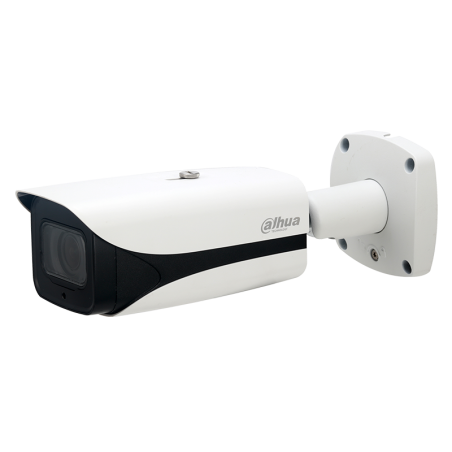

IP camera Dahua IPC-HFW5442E-ZE-2712
€499.80
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | WizMind |
| Color | White |
| Image sensor | 1/1.8” 4 Megapixel Progressive CMOS |
| RAM/ROM | 1 GB/4 GB |
| Resolution | 4M (2688 × 1520) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 60 |
| IR On/Off Control | Priority to Zoom/Manual/Auto |
| IR LEDs | 4 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 12 mm |
| Mounting type | Ø14 |
| Max. aperture | F1.8 |
| Field of view | 115° - 47°(H) |
| Iris Type | Automatic |
| Minimum focus distance | 1.5 m |
Video
| Frames per second | Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) |
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream only) |
| Smart Codec | AI H.265; AI H.264, Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bitrate | H.264: 32 kbps–16384 kbps;H.265: 12 kbps–11008 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 140dB |
| White balance | Auto/natural/street light/outdoor/manual |
| Gain Control | Auto / manual |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 8 zones |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
Perimeter protection
| Performance | Line crossing, intrusion, fast moving through zone (all three functions support classification and accurate detection of vehicles and humans); loitering detection, crowd gathering and parking detection in a defined perimeter. |
| AI (Artificial Intelligence) search | Smart search – works together with Smart NVR for more specialized search |
| AI features | SMD Plus (human/vehicle detection), Abandoned/missing object, Heat map, Face detection, People counting, Intrusion, Line crossing, Perimeter protection, Defog (electronic fog removal), EIS (Electronic image stabilization), AcuPick, Metadata, Smart Sound Detection |
Metadata
| Face | Gender, age, expression, glasses, face mask and beard. |
| Motor vehicle | Vehicle model, color, logo, plate color, decorations, seat belt, phone call |
| Human body | Gender, top/bottom type and color, bag, hat and umbrella |
| Non-motor vehicle | Type, color, number of people, top type and color, hat. |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Abandoned/missing objects |
| Smart motion detection | yes |
| Advanced smart features | Face detection, People counting, Heat map |
| People counting | Supports line crossing; Queue people counting; 4 independent access zones; 4 independently counted zones |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; abandoned object; missing object; det |
| Trigger events | Motion detection, tampering, scene change, network disconnection, IP address conflict, illegal access, storage anomaly |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 2 inputs: 5mA 3V–5V DC |
| Alarm output | 1 output: 300mA 12V DC |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Built-in microphone | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Compatibility | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | SmartPSS Lite; DSS; DMSS |
| Compatible accessories | PFA156, PFA121 |
Power supply
| Power supply | 12 VDC/PoE (802.3af)/ePoE |
| Power consumption | Max. 9.8 W (12 VDC); 12.3 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal + plastic |
| Dimensions | 273.2 mm x 95 mm x 95 mm |
| Net weight | 1.12 kg |
| Gross weight | 1.66 kg |
