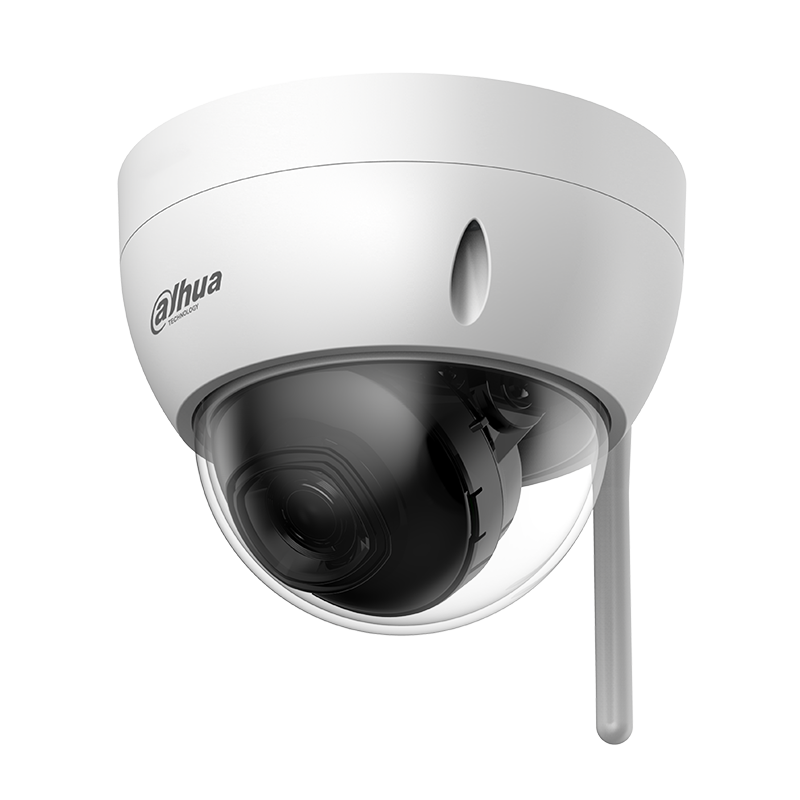

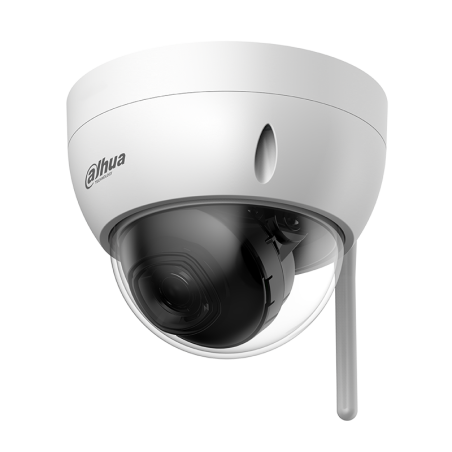

IP camera Dahua IPC-HDBW1430DE-SW-0280B
€104.04
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Wireless |
| Color | White |
| Image sensor | 1/3” 4 Megapixel progressive CMOS |
| RAM/ROM | 64 MB/16 MB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 3 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 355° (pan); 0° - 75° (tilt); 0° - 355° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 90° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 1 m |
Video
| Frames per second | Main stream: 2560 × 1440@ (1–20 fps) Sub stream: 704 × 576@ (1–25 fps) 704 × 480@ (1–30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 36 Mbps incoming |
| Bitrate | H264: 24 kbps–4096 kbps; H265: 9 kbps–4096 kbps |
| Bitrate control | CBR/VBR |
| BLC | Yes |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0° / 180° |
| Mirror image | Yes |
| Region of interest | yes |
Perimeter protection
| AI features | ROI (Region of interest) |
Smart features
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
Additional ports
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz |
| Ethernet | RJ-45 (10/100 Base-T) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Compatibility | ONVIF (Profile S/Profile G); CGI; P2P |
| Max. number of users | 6 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS, DSS, DMSS |
| Compatible accessories | PFA109, PFA136, PFB203W, PFA152-E, PFB220C |
Power supply
| Power supply | 12V DC (power adapter included) |
| Power consumption | < 4.9W |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal |
| Dimensions | Ø110.7 mm × 88.7 mm |
| Net weight | 0.414 kg |
| Gross weight | 0.592 kg |
