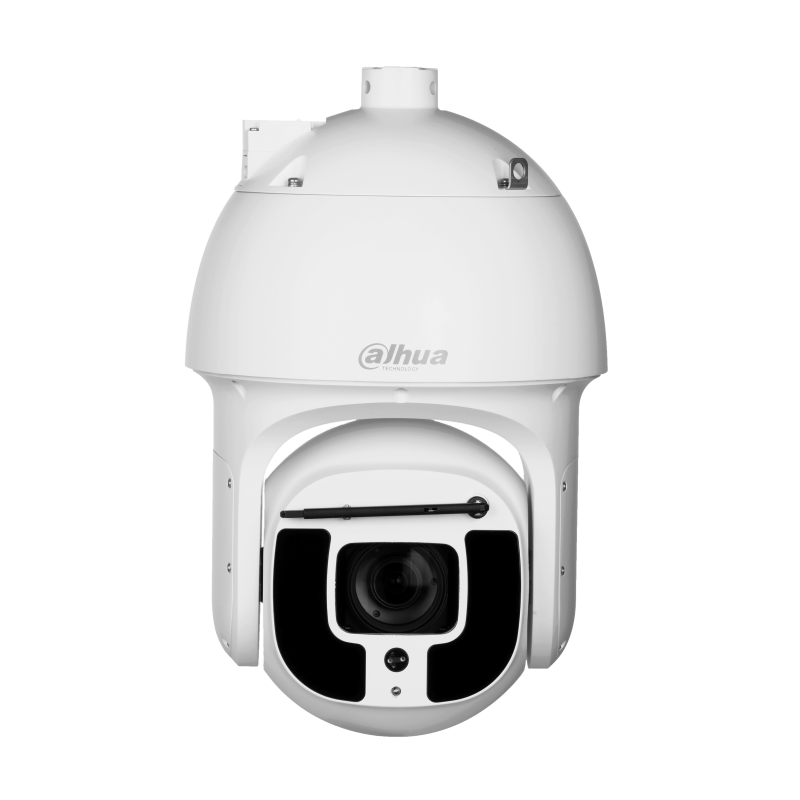

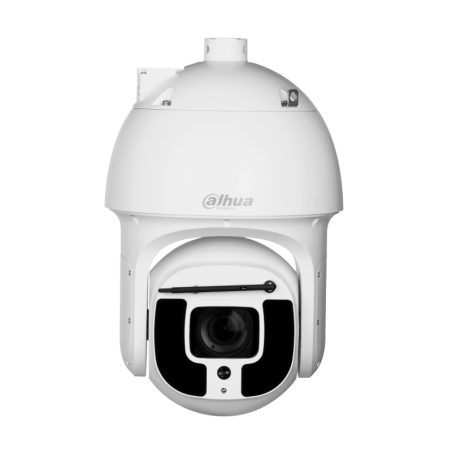

IP camera Dahua SD8A840-HNF-PA

Name: IP camera Dahua SD8A840-HNF-PA
Brand: Dahua
SKU: BIT-1720159
Price: 3284.4 EUR
Availability: OutOfStock

€3,284.40

Tax included

Quantity

Out of stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Series	WizMind
Color	White
Image sensor	1/1.8" 8 Megapixels Progressive CMOS
RAM/ROM	2 GB/8 GB
Resolution	4K (3840 × 2160)
Effective pixels	8
Scanning system	Progressive
Electronic shutter speed	1/1 s–1/30,000 s
Minimum illumination	Color: 0.005 lux@F1.4 B/W: 0.0005 lux@F1.4 0 lux@F1.4 (illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	500
IR On/Off Control	Priority to Zoom/Manual/Smart IR
IR LEDs	10
Smart wiper	yes
Storage	FTP; Micro SD card (512 GB)

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 55dB
Housing movement	0° - 360° (pan); -30° - 90° (tilt), 180° auto flip
Manual mode speed	0.1° ~240° /s (pan); 0.1° ~100° /s (tilt)
Preset speed	240° /s (pan); 120° /s (tilt)
Number of presets	300
PTZ / PT	yes
PTZ mode	5 patterns, 8 tours, 5 scans
Speed adjustment	Yes
On power failure	Yes
Default motion detection	Preset/Tour/Pattern/Scan
Protocol	DH-SD, Pelco-P/D (auto detection)

Lens

Lens	Fixed
Focal length	5.6 mm to 223 mm
Zoom	40x optical; 16x digital
Max. aperture	F1.4 ~ F4.5
Field of view	63.9° - 2.0°(H)
Focus control	Auto / Semi-auto / Manual
Minimum focus distance	0.5 m – 2 m

Video

Frames per second	Main stream: 4K/4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Video compression	H.265/H.264/MJPEG (Sub Stream1)
Smart Codec	Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	64 Mbps incoming
Bitrate	H264: 512 kbps–16384 kbps H265: 256 kbps–10240 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR
WDR	120dB
White balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light
Gain Control	Auto / manual
Noise reduction	2D NR/3D NR
Image rotation	0° / 180°
Privacy masks	up to 24 zones
Region of interest	yes
Optical defog	yes
Low-light visibility technology	Starlight

Perimeter protection

AI features

Automatic object tracking, Defog (electronic fog removal), Face recognition, Intrusion, Metadata, Perimeter protection, Privacy masking, ROI (Region of interest), Abandoned/missing object, Line crossing

Smart features

Motion detection	yes
Alarm signal	Motion detection, video tampering, scene change, network disconnection, IP address conflict, illegal access and storage anomaly

Certification

Certifications

CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Additional ports

Audio input	1
Audio output	1
Alarm input/output	7/2
Video port	1 channel BNC
RS485	1
Audio compression	G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723
SD card	yes
SD card capacity	Micro SD up to 512 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP
Compatibility	ONVIF (Profile S&G&T); CGI
Max. number of users	20
Streaming method	Unicast / Multicast
Web browser live view	IE, Chrome, Firefox, Safari
Management software	Smart PSS; DSS; DMSS; Easy4ip; IVSS
Compatible accessories	PFA120, PFB301C, PFB306W, PFB301S-E, PFA150, PFA151, PFB710C
