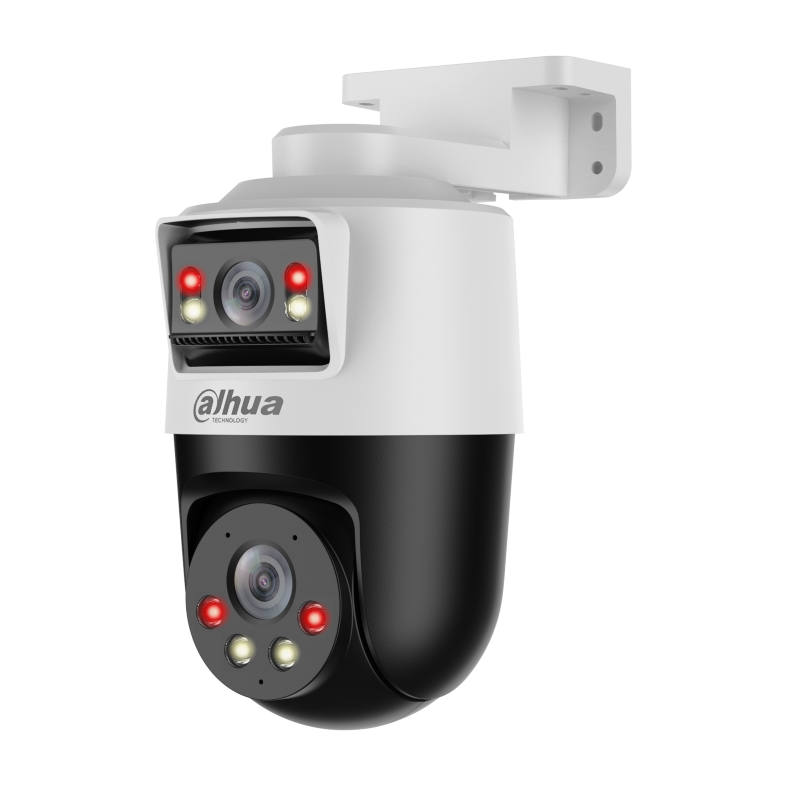

IP camera Dahua SDT2A200-2F-NB-A-PV-0400B
€151.98
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | X-Spans |
| Color | White |
| Image sensor | 2 x 1/2.8" 2 Megapixels Progressive CMOS |
| RAM/ROM | 128 MB/128 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | 1 s – 1/100000 s |
| Minimum illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto/Off |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual/off |
| Number of fill LED lights | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | Fixed camera: 0-290°(pan) & -10-15°(tilt), PTZ: 0-350°(pan) & 0-90°(tilt) |
| Manual mode speed | 0.1° ~36° /s (pan); 0.1° ~25° /s (tilt) |
| Preset speed | 36° /s (pan); 25° /s (tilt) |
| Number of presets | 50 |
| PTZ / PT | yes |
| On power failure | Yes |
| Default motion detection | Presets |
Lens
| Lens | Fixed |
| Focal length | 2 x 4 mm |
| Max. aperture | 2 x F1.6 |
| Field of view | 2 x 85.7° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 2 x 0.8 m |
Video
| Frames per second | Main stream: 1080p/720p/640x360@(1–25/30 fps) Sub stream 1: 640x360/QVGA@(1–25/30 fps) |
| Video compression | H.265; H.264B; H.264M; H.264H |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H264: 48 kbps–4,096 kbps H265: 19 kbps–4,096 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
Perimeter protection
| AI features | SMD Plus (human/vehicle detection), Smart Dual Illuminators |
Smart features
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 |
Additional ports
| Audio input | 1 channel: built-in microphone |
| Audio output | 1 channel: built-in speaker |
| Audio compression | PCM; G.711a; G.711Mu; G.726 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter |
| Compatibility | CGI; SDK; ONVIF (Profile S & Profile T) |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
Power supply
| Power supply | 12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power consumption | < 12W |
Operating conditions
| Operating temperature | -20°C to +50°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | 110 mm × 159.4 mm × 210.1 mm |
| Net weight | 1 kg |
| Gross weight | 1.5 kg |
