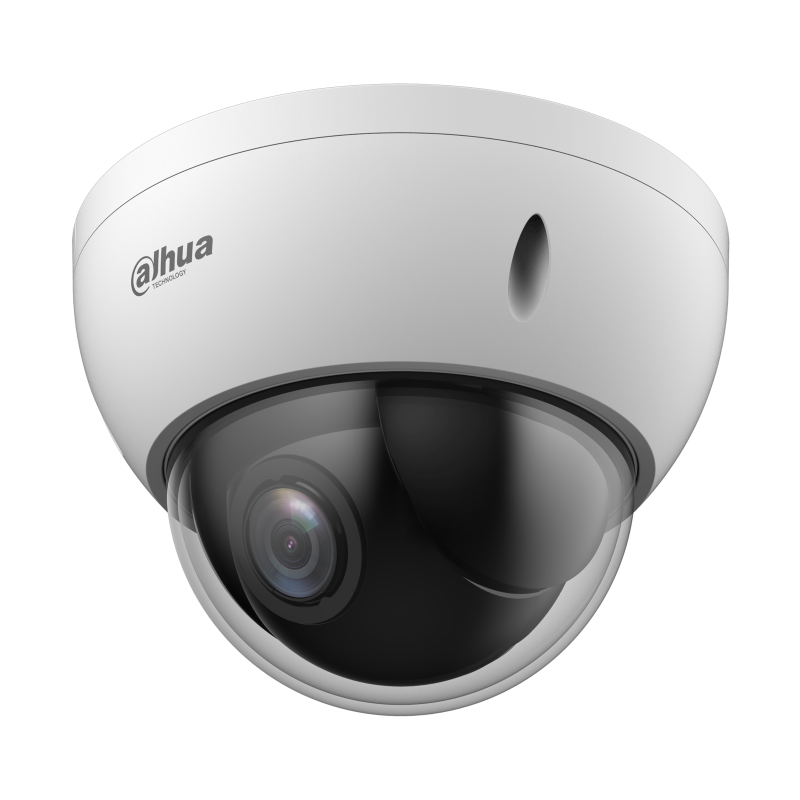

IP camera Dahua SD22204DB-GNY

€244.80
Tax included
Quantity

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

SeriesWizSense
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM256 MB/128 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speed1/1 s–1/30,000 s
Minimum illuminationColor: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6
Day/night modesAuto (ICR) / Color / B&W
StorageFTP; Micro SD card (512 GB); NAS

Camera

Signal-to-noise ratio> 55dB
Housing movement0° - 355° (pan) and 0° - 90° (tilt)
Manual mode speed0.1° ~100° /s (pan); 0.1° ~60° /s (tilt)
Preset speed100° /s (pan); 60° /s (tilt)
Number of presets300
PTZ / PTyes
PTZ mode5 patterns, 8 tours
Default motion detectionPreset/Tour/Pattern
ProtocolDH-SD, Pelco-P/D (auto detection)

Lens

LensVarifocal
Focal length2.8 mm to 12 mm
Zoom4x optical; 16x digital
Max. apertureF1.6 ~ F3.0
Field of view99.1° - 31.9°(H)
Iris TypeFixed aperture
Focus controlAuto / Semi-auto / Manual
Minimum focus distance1.5 m

Video

Frames per secondMain stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
Video compressionH.265+/H.265/H.264+/H.264/MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability3 streams
Bandwidth64 Mbps incoming
BitrateH.264: 2048 kbps–8192 kbps H.265: 768 kbps–6400 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / DWDR
WDRDWDR
White balanceAuto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light
Gain ControlAuto / manual
Noise reduction2D NR/3D NR
Image rotation180°
Region of interestyes
Electronic image stabilizationyes
Software defogyes
Low-light visibility technologyStarlight

Perimeter protection

PerformanceLine crossing; intrusion; fence jumping detection; wandering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
AI featuresDefog (electronic fog removal), Face detection, EIS (Electronic image stabilization), Abandoned/missing object, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing, Intrusion

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing; Intrusion; Abandoned/missing objects
Smart motion detectionyes
Alarm signalMotion detection/tampering; network disconnection detection; IP conflict detection; memory card status detection; storage space detection; power exception detection

Certification

CertificationsCE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Additional ports

SD cardyes
SD card capacityMicro SD up to 512 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
CompatibilityONVIF(Profile S&G&T); P2P; CGI; SDK
Max. number of users20
Streaming methodUnicast / Multicast
Web browser live viewChrome; IE9 or later; Firefox
Management softwareDSS, DMSS
Compatible accessoriesPFA137, PFB203W, PFB200C, PFA152-E, PFA106, PFB220C

Power supply

Power supply12 VDC/1 A ± 10% PoE (802.3af)
Power consumption< 6.1W

Operating conditions

Operating temperature-30°C to +60°C
Operating humidity< 95% RH
Storage temperature-30°C to +60°C
Protection ratingIP66
Vandal resistance ratingIK10

Construction

DimensionsØ122 mm x 89 mm
Net weight0.5 kg
Gross weight0.7 kg
