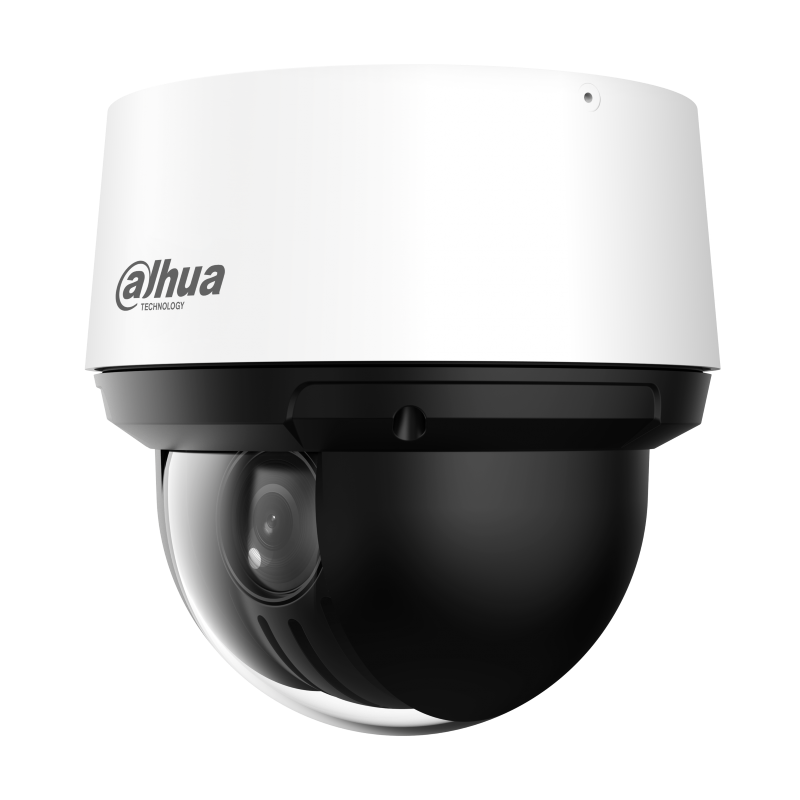

IP camera Dahua SD4A216DB-HNY
€523.26
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel Progressive STARVIS™ CMOS |
| RAM/ROM | 512 MB/128 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/1 s–1/30,000 s |
| Minimum illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 100 |
| IR On/Off Control | Priority to Zoom/Manual/Auto/Off |
| IR LEDs | 6 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | Pan: 0° ~ 360° endless; Tilt: -5° ~ 90°; 180° auto flip |
| Manual mode speed | 0.1° ~240° /s (pan); 0.1° ~160° /s (tilt) |
| Preset speed | 240° /s (pan); 160° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
| Protocol | DH-SD |
Lens
| Lens | Varifocal |
| Focal length | 5 mm to 80 mm |
| Zoom | 16x optical; 16x digital |
| Max. aperture | F1.6 ~ F3.5 |
| Field of view | 53.9° - 4.6°(H) |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 0.1 m – 0.5 m |
Video
| Frames per second | Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H264: 64 kbps–8192 kbps H265:25 kbps–6400 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Privacy masks | up to 24 zones |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| Performance | Line crossing, intrusion, fence jumping, loitering detection; abandoned/missing object; fast moving through perimeter; parking detection in a defined perimeter; crowd gathering; vehicle/human alarm classification |
| AI features | Abandoned/missing object, Automatic object tracking, Defog (electronic fog removal), EIS (Electronic image stabilization), Face detection, Intrusion, Parking space detection, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Face detection; Line crossing; Abandoned/missing objects |
| Smart motion detection | yes |
| Technology | Face detection |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2,No. 62368-1 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Audio output | 1 (LINE OUT; bare wire) |
| Alarm input/output | 2/1 |
| Audio compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;SNMPv1/v2c/v3(MIB-2);Qos;RTSP;ARP |
| Compatibility | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, IOS |
| Management software | DSS; DSS Pro |
| Compatible accessories | PFB5310C, PFA101, PFB303W, PFA150, PFA151, PFB300C, PFB303S |
Power supply
| Power supply | 12 VDC/2 A ± 10% (included), PoE+ (802.3at) |
| Power consumption | Max. 19W |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | Ø171.1 mm x 170.4 mm |
| Net weight | 2.5 kg |
| Gross weight | 3.2 kg |
