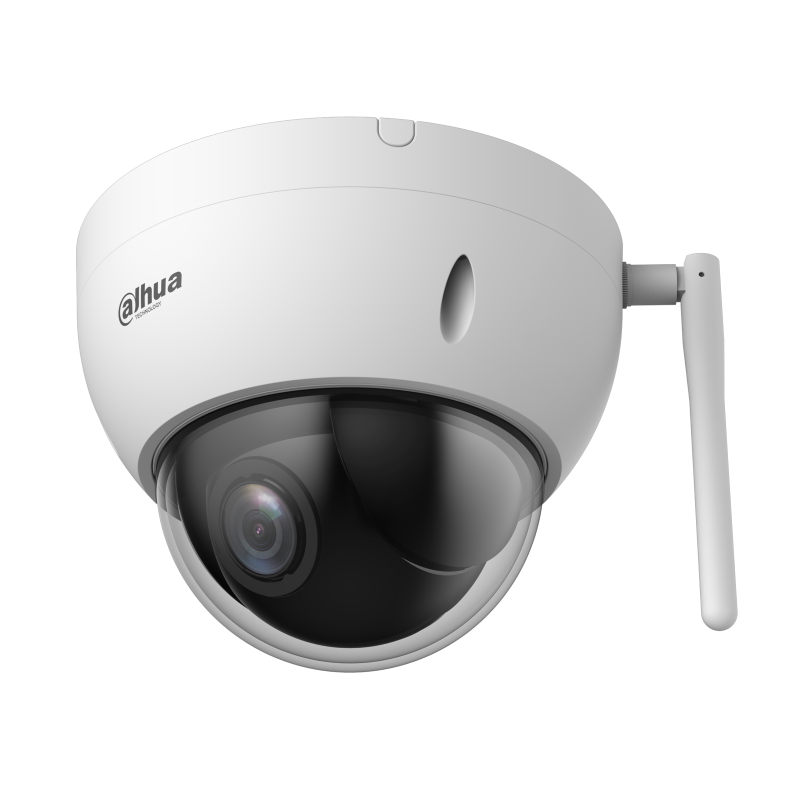

IP camera Dahua SD22404DB-GNY-W
€300.90
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 4 Megapixel Progressive CMOS |
| RAM/ROM | 512 MB/128 MB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/1 s–1/30,000 s |
| Minimum illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
| Storage | FTP; Micro SD card (512 GB); NAS |
Camera
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 355° (pan) and 0° - 90° (tilt) |
| Manual mode speed | 0.1° ~100° /s (pan); 0.1° ~60° /s (tilt) |
| Preset speed | 100° /s (pan); 60° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours |
| Default motion detection | Preset/Tour/Pattern |
| Protocol | DH-SD, Pelco-P/D (auto detection) |
Lens
| Lens | Varifocal |
| Focal length | 2.8 mm to 12 mm |
| Zoom | 4x optical; 16x digital |
| Max. aperture | F1.6 ~ F3.0 |
| Field of view | 90.3° - 29.4° (H) |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 1.5 m |
Video
| Frames per second | Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 720p@(1–25/30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Abandoned/missing object, EIS (Electronic image stabilization), Face detection, Intrusion, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/, EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
Additional ports
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Wi-Fi | IEEE802.11b/g/n 2.4 GHz |
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Compatibility | ONVIF(Profile S&G&T); P2P; CGI; SDK |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | DSS, DMSS |
| Compatible accessories | PFA137. PFB203W, PFA152-E, PFA106 |
Power supply
| Power supply | 12 VDC/1 A |
| Power consumption | < 4.8W |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP66 |
| Vandal resistance rating | IK10 |
Construction
| Dimensions | Ø122 mm x 89 mm |
| Net weight | 0.5 kg |
| Gross weight | 0.7 kg |
