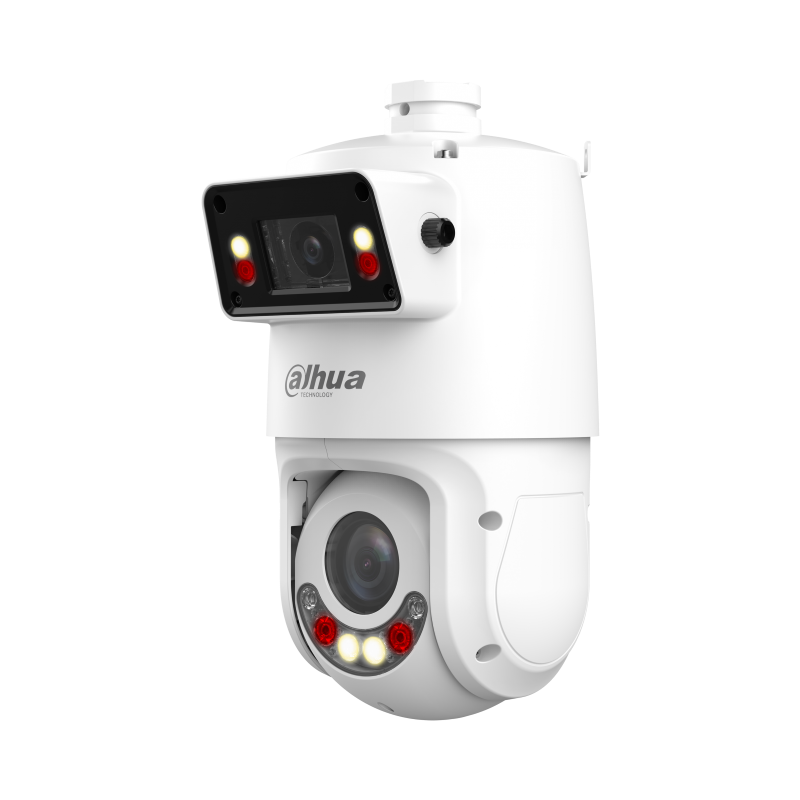

IP camera Dahua SDT4E225-4F-GB-A-0280
€688.50
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | Fixed camera: 1/2.8” 4 Megapixel progressive CMOS; PTZ camera: 1/2.8” 2 Megapixel progressive CMOS |
| RAM/ROM | Fixed camera: 1GB /4GB; PTZ camera: 1GB / 4GB |
| Resolution | Fixed camera: 4M (2560 × 1440); PTZ camera: 1080p (1920 × 1080) |
| Effective pixels | 4 + 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Fixed camera: 1/3s-1/100000s; PTZ camera: 1s-1/30000s |
| Minimum illumination | Fixed camera: 0.001 lux@F1.0 (Color, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); PTZ camera: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 (Fixed camera), 100 (PTZ camera) |
| IR On/Off Control | Fixed camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| IR LEDs | 2 x 2 |
| Fill light (white light) distance up to | Fixed camera: 30 m; PTZ camera: 50 m |
| Fill light on/off | Fixed camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| Number of fill LED lights | 2 x 2 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 360° (pan); -15° - 90° (tilt), 180° auto flip |
| Manual mode speed | 0.1° ~200° /s (pan); 0.1° ~120° /s (tilt) |
| Preset speed | 240° /s (pan); 200° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
Lens
| Lens | Fixed camera: Fixed; PTZ camera: Varifocal |
| Focal length | Fixed camera: 2.8 mm; PTZ camera: 5 mm – 125 mm |
| Zoom | PTZ camera: 25x optical, 16x digital |
| Max. aperture | Fixed camera: F1.0; PTZ camera: F1.6 – F3.6 |
| Field of view | Fixed camera: 101° (H); PTZ camera: 51.9°–3.0° (H) |
| Iris Type | Auto/Manual |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | Fixed camera: 0.2 m; PTZ camera: 0.1 m – 0.5 m |
Video
| Frames per second | Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps) |
| Video compression | H.264H; H.264B; H.265; H.264M; MJPEG (Sub Stream 1) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H264: 96 Kbps–14,848 Kbps H265: 38 Kbps–8,960 Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Automatic object tracking, Defog (electronic fog removal), Parking space detection, Abandoned/missing object, Intrusion, Perimeter protection, Line crossing, ROI (Region of interest), EIS (Electronic image stabilization), SMD Plus (human/vehicle detection), Quick Pick |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input | 2 (0–5 VDC) |
| Alarm output | 1 |
| Audio compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;QoS;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;RTSP;ARP |
| Compatibility | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | DMSS; DSS PRO |
| Compatible accessories | PFA126, PFB301C, PFB301S-E, PFA150, PFA151, PFB300C, PFB303S, PFA114 |
Power supply
| Power supply | 12 VDC, 3 A ± 10% PoE+ (802.3at) |
| Power consumption | < 25W |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | 160 mm × 184.4 mm × 304.6 mm |
| Net weight | 3.41 kg |
