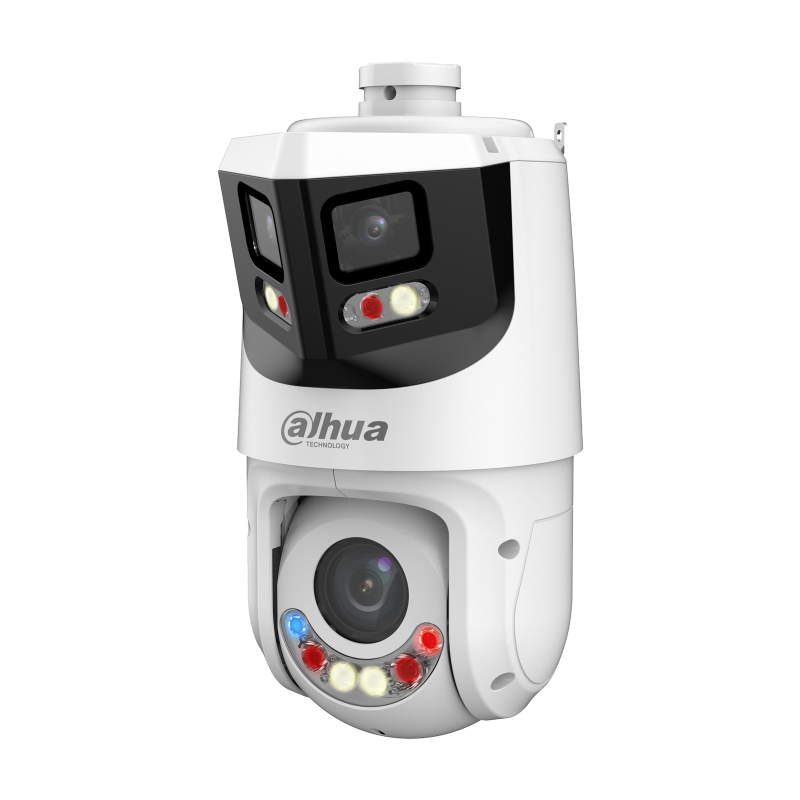

IP camera Dahua SDT4E425-8P-GB-APV1-0280-S2
€974.10
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | X-Spans |
| Color | White |
| Image sensor | 180-degree camera: 1/2.7” 8 Megapixel progressive CMOS; PTZ camera: 1/2.8” 4 Megapixel progressive CMOS |
| RAM/ROM | 180-degree camera: 2GB /4GB; PTZ camera: 1GB / 4GB |
| Resolution | 180-degree camera: 8MP (4096 × 1860); PTZ camera: 4MP (2560 × 1440) |
| Effective pixels | 8MP + 4MP |
| Scanning system | Progressive |
| Electronic shutter speed | 1s–1/30,000s |
| Minimum illumination | Panoramic camera: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) PTZ camera: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/night modes | Auto; Color; B&W; Electronic |
| IR illumination up to | Panoramic camera: 30; PTZ camera: 100 |
| IR On/Off Control | Panoramic camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| IR LEDs | 2 x 2 |
| Fill light (white light) distance up to | 180-degree camera: 30 m; PTZ camera: 50 m m |
| Fill light on/off | Panoramic camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| Number of fill LED lights | 2 x 2 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 360° (pan); -15° - 90° (tilt), 180° auto flip |
| Manual mode speed | 0.1° ~180° /s (pan); 0.1° ~90° /s (tilt) |
| Preset speed | 0.1° ~180° /s (pan); 0.1° ~90° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
Lens
| Lens | Fixed camera: Fixed; PTZ camera: Varifocal |
| Focal length | Panoramic camera: 2.8 mm; PTZ camera: 5 mm – 125 mm |
| Zoom | PTZ camera: 25x optical, 16x digital |
| Max. aperture | Panoramic camera: F1.4; PTZ camera: F1.6 – F3.6 |
| Field of view | Panoramic camera: 180° (H); PTZ camera: 51.9°–3.0° (H) |
| Iris Type | Detail camera: Auto; manual; iris priority |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | Panoramic camera: 0.6 m; PTZ camera: 0.1 m – 0.5 m |
Video
| Frames per second | Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CI |
| Video compression | H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | 180-degree camera: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; PTZ camera: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 180-degree camera: DWDR; PTZ camera: 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual / gain priority |
| Noise reduction | 2D NR/3D NR |
| Image rotation | PTZ camera: 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
Perimeter protection
| AI features | Abandoned/missing object, Automatic object tracking, Defog (electronic fog removal), EIS (Electronic image stabilization), Intrusion, Parking space detection, Perimeter protection, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), TiOC (red and blue light alarm), Line crossing, Active deterrence |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; network disconnection detection; IP conflict detection; memory card status detection; storage space detection; power exception detection |
Certification
| Certifications | CE: EN 50130-4; EN 55032; EN 55035; EN 61000-3-3; EN IEC 61000-3-2; EN 62368-1 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Audio output | 1 (LINE OUT; bare wire) |
| Alarm input/output | 2/1 |
| Audio compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (100/1000 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS |
| Compatibility | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | DMSS; DSS PRO |
| Compatible accessories | PFA126, PFB301C, PFB301S-E, PFB305W, PFA150, PFA151, PB300C, PFB303S, PFA111 |
Power supply
| Power supply | 12 VDC, 3 A ± 10%;PoE (802.3at) |
| Power consumption | < 25W |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | 194.2 mm × 160 mm × 311 mm |
| Net weight | 3.1 kg |
| Gross weight | 4.6 kg |
