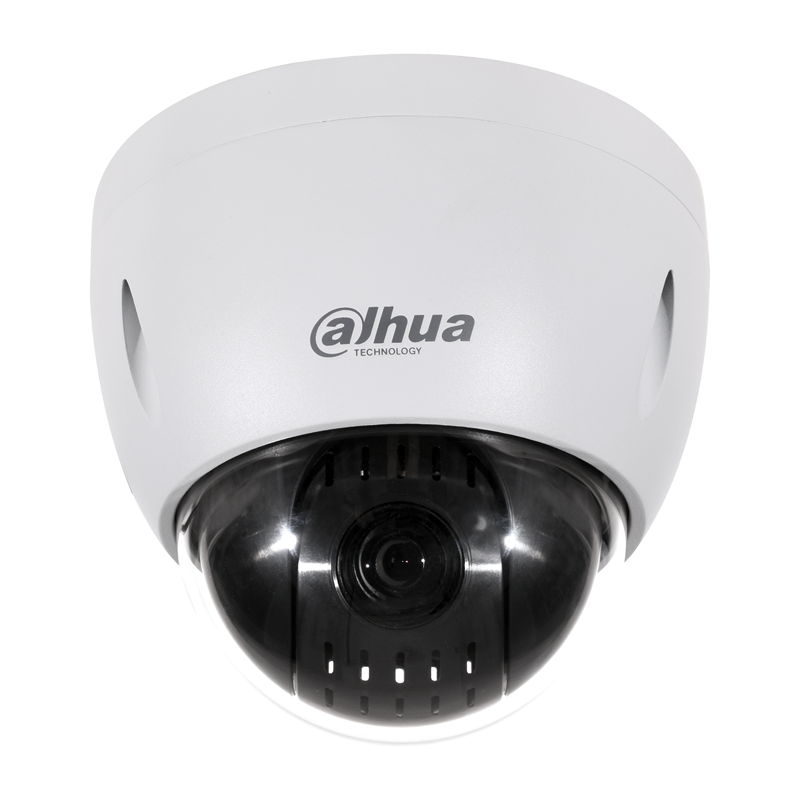

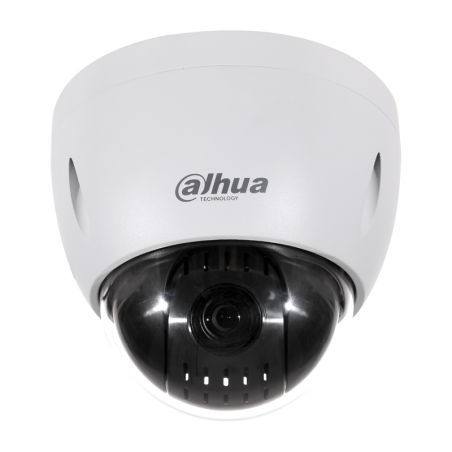

IP camera Dahua SD42212T-HN

€403.92
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

SeriesPro
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive STARVIS™ CMOS
RAM/ROM1 GB/128 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speed1/1 s–1/30,000 s
Minimum illuminationColor: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6
Day/night modesAuto (ICR) / Color / B&W
StorageNAS; Local PC for instant recording; Micro SD card 256GB

Camera

Housing movementPan: 0° ~ 360° endless; Tilt: -2° ~ 90°, 180° auto flip
Manual mode speed0.1° ~300° /s (pan); 0.1° ~120° /s (tilt)
Preset speed300° /s (pan); 200° /s (tilt)
Number of presets300
PTZ / PTyes
PTZ mode5 Patterns, 8 Tours, Auto pan, Auto scan
Speed adjustmentHuman-oriented focal length / speed adaptation
On power failureAutomatic restoration of the camera's previous state after power failure
Default motion detectionPreset/ Scan/ Tour/ Pattern activation when idle for a set time
ProtocolDH-SD, Pelco-P/D (Auto recognition)

Lens

LensVarifocal
Focal length5.3 mm to 64 mm
Zoom12x optical; 16x digital
Max. apertureF1.6 ~ F4.4
Field of view58.2° ~ 4.8°(H)
Focus controlAuto / manual
Minimum focus distance0.1 m – 1.0 m

Video

Frames per secondMain stream: 1080P/720P(1 ~ 25/30fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)
Video compressionH.265+/H.265/H.264+/H.264/MJPEG (sub stream only)
Streaming capability3 streams
BitrateH.265/H.264: 448K ~ 8192Kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto, ATW, indoor, outdoor, manual
Gain ControlAuto / manual
Noise reductionUltra DNR (2D/3D)
Image rotation180°
Privacy masksup to 24 zones
Region of interestyes
Software defogyes
Low-light visibility technologyStarlight

Perimeter protection

AI featuresDefog (electronic fog removal), Privacy masking, ROI (Region of interest), Intrusion, Line crossing, Abandoned/missing object, Face detection

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing; Intrusion; Abandoned/missing objects
Advanced smart featuresFace detection
Trigger eventsMotion detection, video tampering, network disconnection, IP address conflict, illegal access, storage anomaly

Certification

CertificationsCE (EN55032; EN55024; EN50130-4) FCC (Part15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2,No.60950-1)

Additional ports

Audio input1
Audio output1
Alarm input/output2/1
Audio compressionG.711a/ G.711Mu/ AAC/ G.726
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

EthernetRJ-45 (10XBase-T/100Base-TX)
Mobile appAndroid, iOS
Network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
CompatibilityONVIF Profile S&G, API
Max. number of users20
Streaming methodUnicast / Multicast
Web browser live viewIE, Chrome, Firefox, Safari
Management softwareSmart PSS, DSS, DMSS
Compatible accessoriesPFB302S, PFA102, PFA150, PFA151, PFB300C

Power supply

Power supplyDC 24V/2.5A(±25%), PoE+(802.3at)
Power consumption< 12W

Operating conditions

Operating temperature-30°C to +60°C
Operating humidity< 95% RH
Protection ratingIP66
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ170 mm x 155 mm
Net weight1.8 kg
Gross weight3.3 kg
Dahua
BIT-1720067

Specific References

ean13
6939554932281
