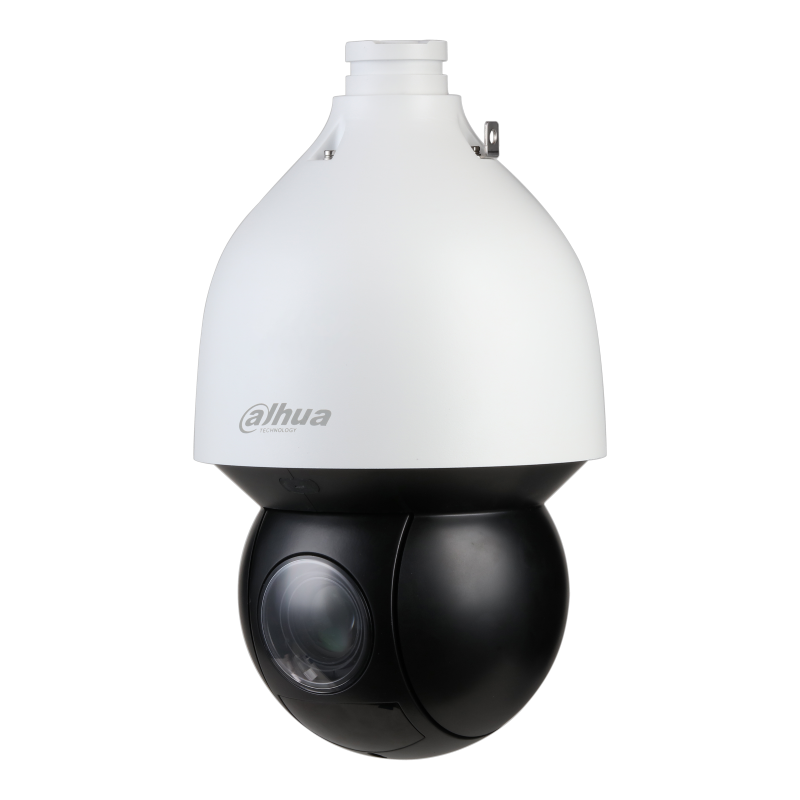

IP camera Dahua SD5A432GB-HNRDAHUA SD5A432GB-HNR
€1,159.72
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 4 Megapixel Progressive CMOS |
| RAM/ROM | 1 GB/4 GB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 150 |
| IR On/Off Control | Priority to Zoom/Manual/Smart IR |
| IR LEDs | 4 |
| Storage | FTP; Micro SD card (512 GB); NAS |
Camera
| Signal-to-noise ratio | > 55dB |
| Housing movement | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°; 180° auto flip |
| Manual mode speed | 0.1° ~300° /s (pan); 0.1° ~200° /s (tilt) |
| Preset speed | 400° /s (pan); 300° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
| Protocol | DH-SD, Pelco-P/D (auto detection) |
Lens
| Lens | Varifocal |
| Focal length | 4.8 mm to 154 mm |
| Zoom | 32x optical; 16x digital |
| Max. aperture | F1.6 ~ F4.0 |
| Field of view | 55.8°–2.4° (H) |
| Iris Type | Auto/Manual |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 0.8 m – 5 m |
Video
| Frames per second | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Video compression | Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Image rotation | 180° |
| Privacy masks | up to 24 zones |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| Performance | Line crossing, intrusion, fence jumping, loitering detection; abandoned/missing object; fast moving through perimeter; parking detection in a defined perimeter; crowd gathering; vehicle/human alarm classification |
| AI features | Defog (electronic fog removal), EIS (Electronic image stabilization), Privacy masking, Quick Pick, ROI (Region of interest), SMD Plus (human/vehicle detection), Automatic object tracking, Abandoned/missing object, Perimeter protection, Intrusion, Line crossing, Face detection |
Smart features
| Motion detection | yes |
| Auto tracking | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Technology | Face detection |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection; power exception detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
Additional ports
| Audio input | 2 |
| Audio output | 1 |
| Alarm input/output | 1/1 |
| Two-way audio | Yes |
| Audio compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP |
| Compatibility | ONVIF (Profile T/Profile S/Profile G); CGI |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Compatible accessories | PFA120, PFB301C, PFB305W, PFA150, PFA140, PFA151, PFB300C, PFA111 |
Power supply
| Power supply | DC 24V/2.5A(±25%), PoE+(802.3at) |
| Power consumption | Max. 22 W (illuminator + PTZ in motion) |
Operating conditions
| Operating temperature | -40°C to +70°C |
| Operating humidity | < 95% RH |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Dimensions | Ø190 mm × 332 mm |
| Net weight | 4.7 kg |
| Gross weight | 8 kg |
