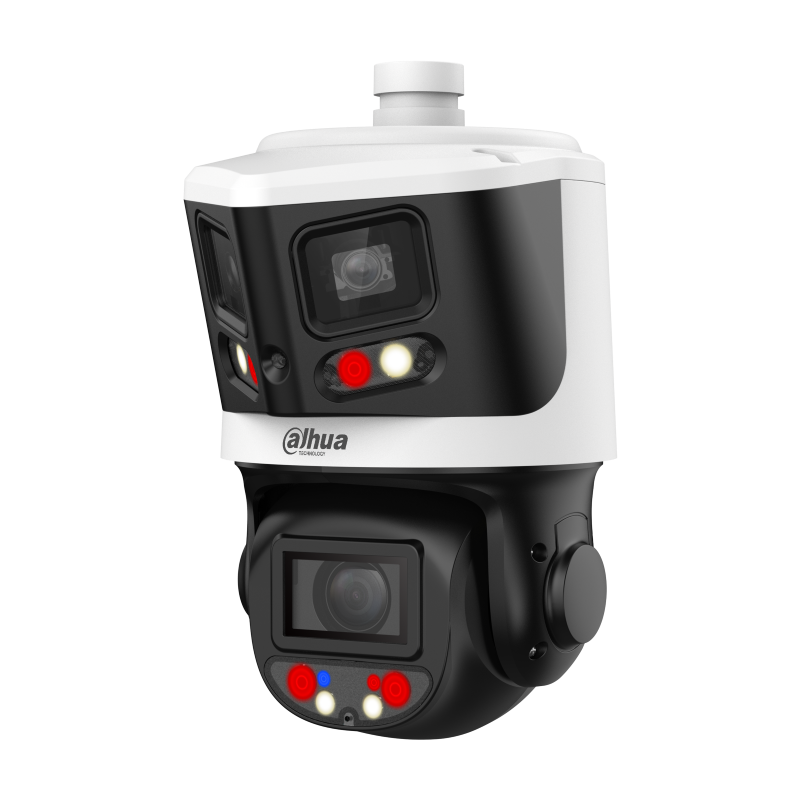

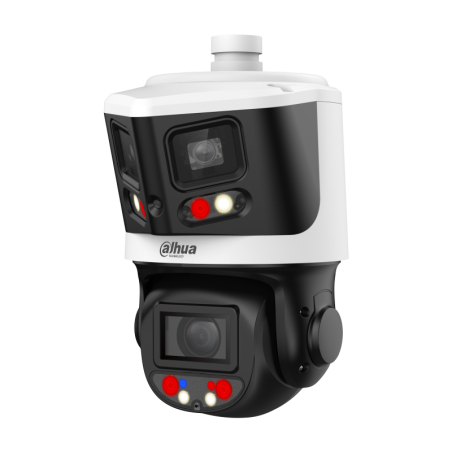

IP camera Dahua SDT3E410-8P-MB-A-PV1-0280
€627.30
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | X-Spans |
| Color | White |
| Image sensor | 180-degree camera: 1/2.8” 8 Megapixel progressive CMOS; PTZ camera: 1/2.8” 4 Megapixel progressive CMOS |
| RAM/ROM | 180-degree camera: 4GB / 2GB; PTZ camera: 4GB / 1GB |
| Resolution | 180-degree camera: 8MP (5376 × 1520); PTZ camera: 4MP (2560 × 1440) |
| Effective pixels | 8MP + 4MP |
| Scanning system | Progressive |
| Electronic shutter speed | 180-degree camera: 1 s–1/100,000 s; PTZ camera: 1 s–1/30,000 s |
| Minimum illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 180-degree camera: 30; PTZ camera: 70 |
| IR On/Off Control | 180-degree camera: Manual; Auto; Off; PTZ camera: Zoom priority; Manual; Auto; Off |
| IR LEDs | 2 x 2 |
| Fill light (white light) distance up to | 2 x 30 m |
| Fill light on/off | 180-degree camera: Manual; Auto; Off; PTZ camera: Zoom priority; Manual; Auto; Off |
| Number of fill LED lights | 2 x 2 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 345° (pan) and -10° - 90° (tilt) |
| Manual mode speed | 0.1° ~80° /s (pan); 0.1° ~50° /s (tilt) |
| Preset speed | 80° /s (pan); 50° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| On power failure | Yes |
| Default motion detection | Presets |
Lens
| Lens | Fixed camera: Fixed; PTZ camera: Varifocal |
| Focal length | 180-degree camera: 2.8 mm; PTZ camera: 4 mm – 40 mm |
| Zoom | PTZ camera: 10x optical, 16x digital |
| Max. aperture | 180-degree camera: F1.6; PTZ camera: F1.6 - F3.6 |
| Field of view | 180-degree camera: 180° (H); PTZ camera: 58° - 11.3° (H) |
| Iris Type | Fixed aperture |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 180-degree camera: 0.6 m ; PTZ camera: 0.1 m – 0.5 m |
Video
| Frames per second | 180-degree camera: Main stream: 5376 × 1520 @(1–25/30 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps); PTZ camera: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CI |
| Video compression | H.265M; H.264H; H.264B; H.265; MJPEG (Sub Stream 1) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | 180-degree camera: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; PTZ camera: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 180-degree camera: DWDR; PTZ camera: 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual / gain priority |
| Noise reduction | 2D NR/3D NR |
| Image rotation | PTZ camera: 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Abandoned/missing object, Defog (electronic fog removal), EIS (Electronic image stabilization), Face detection, Parking space detection, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), Line crossing, Intrusion, Perimeter protection, TiOC (red and blue light alarm) |
Smart features
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; network disconnection detection; IP conflict detection; memory card status detection; storage space detection; power exception detection |
Certification
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Audio output | 1 (LINE OUT; bare wire) |
| Alarm input/output | 1/1 |
| Audio compression | 180-degree camera: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP |
| Compatibility | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | DSS; DSS Pro |
| Compatible accessories | PFB5310W, PFA121, PFB301C, PFA150, PFA152-E, PFB300C, PFA106 |
Power supply
| Power supply | 12 VDC, 3 A ± 10% PoE+(802.3at) |
| Power consumption | < 25W |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
Construction
| Dimensions | 140.3 mm × 181.7 mm × 238.8 mm |
| Net weight | 2.17 kg |
| Gross weight | 3.1 kg |
