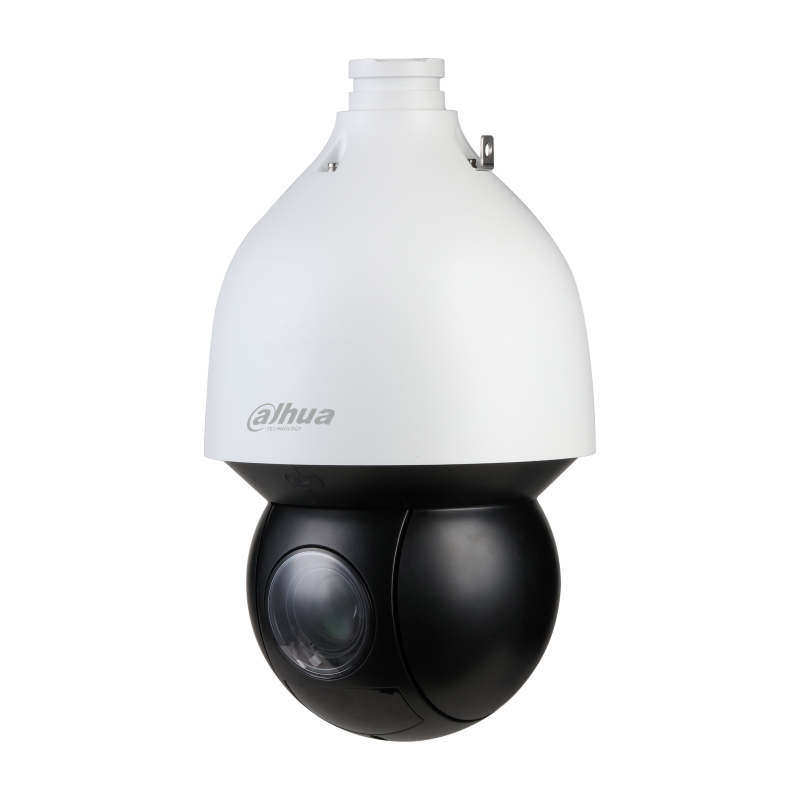

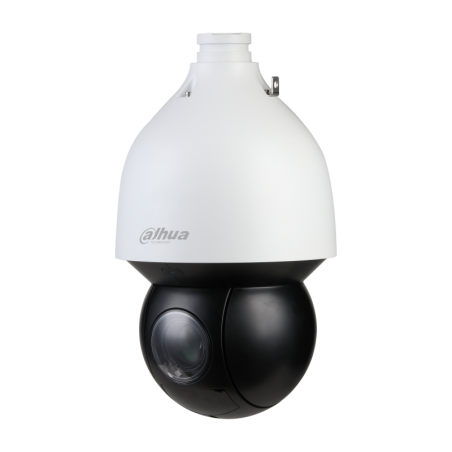

IP camera Dahua SD5A232GB-HNR

Name: IP camera Dahua SD5A232GB-HNR
Brand: Dahua
SKU: BIT-1720095_9
Price: 1001.64 EUR
Availability: InStock

€1,001.64

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Series	WizSense
Color	White
Image sensor	1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM	1 GB/4 GB
Resolution	1080p (1920 × 1080)
Effective pixels	2
Scanning system	Progressive
Electronic shutter speed	1/1 s–1/30,000 s
Minimum illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	150
IR On/Off Control	Priority to Zoom/Manual/Smart IR/Off
IR LEDs	4
Storage	FTP; Micro SD card (512 GB); NAS

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 55dB
Housing movement	Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°; 180° auto flip
Manual mode speed	0.1° ~300° /s (pan); 0.1° ~200° /s (tilt)
Preset speed	400° /s (pan); 300° /s (tilt)
Number of presets	300
PTZ / PT	yes
PTZ mode	5 patterns, 8 tours, 5 scans
On power failure	Yes
Default motion detection	Preset/Tour/Pattern/Scan

Lens

Lens	Varifocal
Focal length	4.5 mm to 144 mm
Zoom	32 x optical; 16x digital
Max. aperture	F1.6 ~ F4.0
Field of view	58.4° ~ 3°(H)
Iris Type	Auto/Manual
Focus control	Auto / Semi-auto / Manual
Minimum focus distance	0.1 m – 1.5 m

Video

Frames per second	Main stream: 1080p/1.3M/720p@(1-50/60 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	64 Mbps incoming
Bitrate	H264: 64 kbps–10496 kbps H265: 25 kbps–6400 kpbs
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR
WDR	120dB
White balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light
Gain Control	Auto / manual
Noise reduction	2D NR/3D NR
Image rotation	180°
Privacy masks	up to 24 zones
Region of interest	yes
Electronic image stabilization	yes
Software defog	yes
Low-light visibility technology	Starlight

Perimeter protection

AI features

Abandoned/missing object, AcuPick, Auto Patrol, Automatic object tracking, Defog (electronic fog removal), EIS (Electronic image stabilization), Face detection, Intrusion, Metadata, Parking space detection, People counting, Perimeter protection, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing

Smart features

Motion detection	yes
Smart motion detection	yes
Alarm signal	Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection

Certification

Certifications

CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Additional ports

Audio input	1
Audio output	1
Alarm input/output	2/1
Audio compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
SD card	yes
SD card capacity	Micro SD up to 512 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Compatibility	ONVIF (Profile S&G&T); CGI; SDK
Max. number of users	20
Streaming method	Unicast / Multicast
Web browser live view	Chrome; IE9 or later; Firefox
Management software	DSS, DMSS
Compatible accessories	PFA120, PFB301C, PFB305W, PFA150, PFA151, PFB300C, PFA111
