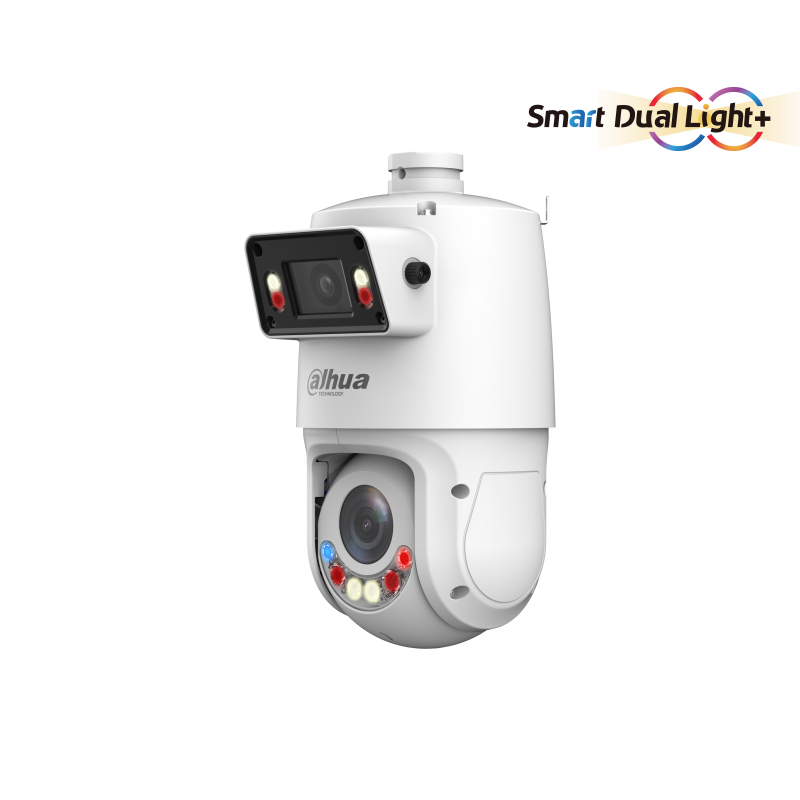

IP camera Dahua SDT4E425-4F-GB-A-PV1-0400
€835.38
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | X-Spans |
| Color | White |
| Image sensor | 2 x 1/2.8" 4 Megapixels Progressive CMOS |
| RAM/ROM | 2 x 4 GB / 2 x 1 GB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Panoramic camera: 1/3s-1/100000s; PTZ camera: 1s-1/30000s |
| Minimum illumination | Panoramic camera: 0.001 lux@F1.0 (Color, 30 IRE); 0.0005 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on); PTZ camera: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | Panoramic camera: 30; PTZ camera: 100 |
| IR On/Off Control | Panoramic camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| IR LEDs | 2 x 2 |
| Fill light (white light) distance up to | Panoramic camera: 30; PTZ camera: 50 m |
| Fill light on/off | Panoramic camera: Auto; Manual; Off; PTZ camera: Zoom priority; Auto; Manual; Off |
| Number of fill LED lights | 2 x 2 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | Panoramic camera: Vertical: 13° to 23°; PTZ camera: Horizontal: 0° to 360° endless; Vertical: –15° to 90°, 180° auto flip |
| Manual mode speed | 0.1° ~200° /s (pan); 0.1° ~120° /s (tilt) |
| Preset speed | 240° /s (pan); 200° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
Lens
| Lens | Panoramic camera: Fixed; PTZ camera: Varifocal |
| Focal length | Panoramic camera: 2.8 mm; PTZ camera: 5 mm – 125 mm |
| Zoom | PTZ camera: 25x optical, 16x digital |
| Max. aperture | Panoramic camera: F1.0; PTZ camera: F1.6 – F3.6 |
| Field of view | Panoramic camera: 101° (H); PTZ camera: 51.9°–3.0° (H) |
| Iris Type | Auto/Manual |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | Panoramic camera: 0.2 m; PTZ camera: 0.1 m – 0.5 m |
Video
| Frames per second | Main stream: 4 MP/3 MP/1080p/1.3 MP/720p@(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps) |
| Video compression | H.265M; H.264H; H.264B; H.265; MJPEG (Sub Stream 1) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H264: 96 kbps–14848 kbps H265: 38 kbps–8960 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Abandoned/missing object, Automatic object tracking, Defog (electronic fog removal), EIS (Electronic image stabilization), Intrusion, Parking space detection, Perimeter protection, Quick Pick, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), TiOC (red and blue light alarm), Line crossing |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Audio output | 1 (LINE OUT; bare wire) |
| Alarm input/output | 2/1 |
| Audio compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Compatibility | ONVIF(Profile S&G&T);CGI;SDK |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | DSS; DSS Pro |
| Compatible accessories | PFA126, PFB301C, PFB301S-E, PFB305W, PFA150, PFA151, PB300C, PFB303S, PFA111 |
Power supply
| Power supply | 12 VDC, 3 A ± 10% PoE+(802.3at) |
| Power consumption | < 25W |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
Construction
| Dimensions | 160 mm × 184.4 mm × 304.6 mm |
| Net weight | 3.41 kg |
