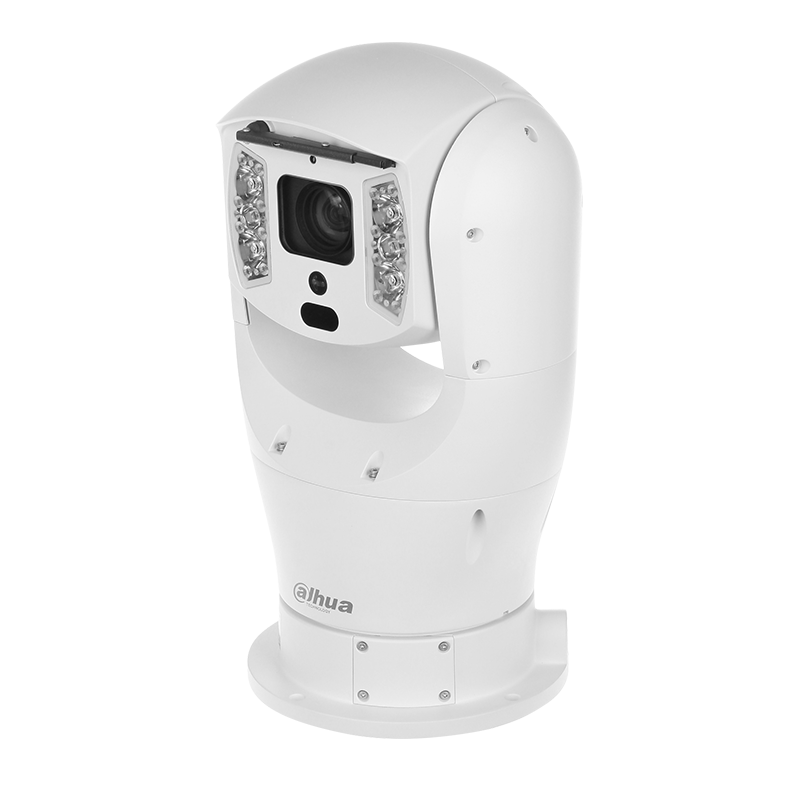

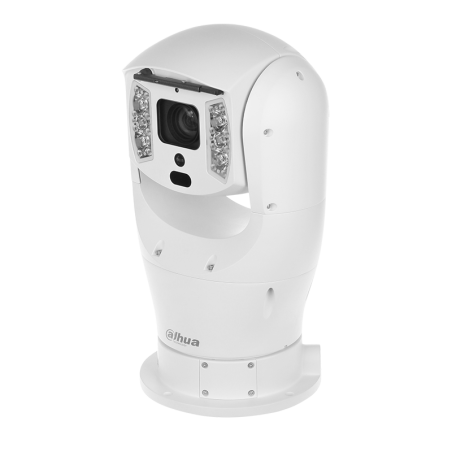

IP camera Dahua PTZ19240V-IRB-N

Name: IP camera Dahua PTZ19240V-IRB-N
Brand: Dahua
SKU: BIT-1720064
Price: 3755.64 EUR
Availability: InStock

€3,755.64

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Color	White
Image sensor	1/2.8” 2 Megapixel Progressive STARVIS™ CMOS
Resolution	1080p (1920 × 1080)
Effective pixels	2
Scanning system	Progressive
Electronic shutter speed	1/1 s–1/30,000 s
Minimum illumination	Color: 0.005Lux@F1.2; B/W: 0.0005Lux@F1.2; 0Lux@F1.2 (IR on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	300
IR On/Off Control	Manual/Auto
IR LEDs	8
Smart wiper	yes
Storage	NAS; Local PC for instant recording; Micro SD card 256GB

Camera

Signal-to-noise ratio	> 55dB
Housing movement	Pan: 0° ~ 360° endless; Tilt: 0° ~ 360° endless, Effective tilt angle: -55° ~ 223°
Manual mode speed	0.1° ~120° /s (pan); 0.1° ~60° /s (tilt)
Preset speed	120° /s (pan); 60° /s (tilt)
Number of presets	300
PTZ / PT	yes
PTZ mode	5 Patterns, 8 Tours, Auto pan, Auto scan
Speed adjustment	Human-oriented focal length / speed adaptation
On power failure	Automatic restoration of the camera's previous state after power failure
Default motion detection	Preset/ Scan/ Tour/ Pattern activation when idle for a set time
Protocol	DH-SD, Pelco-P/D (Auto recognition)

Lens

Lens	Varifocal
Focal length	4.5 mm to 180 mm
Zoom	40x optical; 16x digital
Max. aperture	F1.2 ~ F3.5
Field of view	67.5° - 1.7°(H)
Focus control	Auto / manual
Minimum focus distance	0.1 m – 1.0 m

Video

Frames per second	Main stream: 1080P/1.3M/720P(1~50/60fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)
Video compression	H.265+/H.265/H.264+/H.264
Streaming capability	3 streams
Bitrate	H.265/H.264: 256K ~ 8192Kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR
WDR	140dB
White balance	Auto, ATW, indoor, outdoor, manual
Gain Control	Auto / manual
Noise reduction	Ultra DNR (2D/3D)
Image rotation	180°
Privacy masks	up to 24 zones
Region of interest	yes
Electronic image stabilization	yes
Optical defog	yes
Low-light visibility technology	Starlight

Perimeter protection

AI features

Defog (electronic fog removal), EIS (Electronic image stabilization), Privacy masking, ROI (Region of interest), Automatic object tracking, Abandoned/missing object, Intrusion, Line crossing, Face detection, Heat map

Smart features

Motion detection	yes
Auto tracking	yes
Intelligent video surveillance	Line crossing; Intrusion; Abandoned/missing objects
Advanced smart features	Face detection, Heat map
Trigger events	Motion detection, video tampering, network disconnection, IP address conflict, illegal access, storage anomaly

Certification

Certifications

CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014

Additional ports

Audio input	1
Audio output	1
Alarm input/output	7/2
Video port	1 port (BNC, 1.0V[p-p], 75Ω)
RS485	1
Audio compression	G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2
SD card	yes
SD card capacity	Micro SD up to 256 GB

Network features

Ethernet	RJ-45 (10Base-T/100Base-TX)
Mobile app	Android, iOS
Network protocols	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Compatibility	ONVIF Profile S&G, API
Max. number of users	20
Streaming method	Unicast / Multicast
Web browser live view	IE, Chrome, Firefox, Safari
Management software	Smart PSS, DSS, DMSS
Compatible accessories	PFB731W, PFA120A
