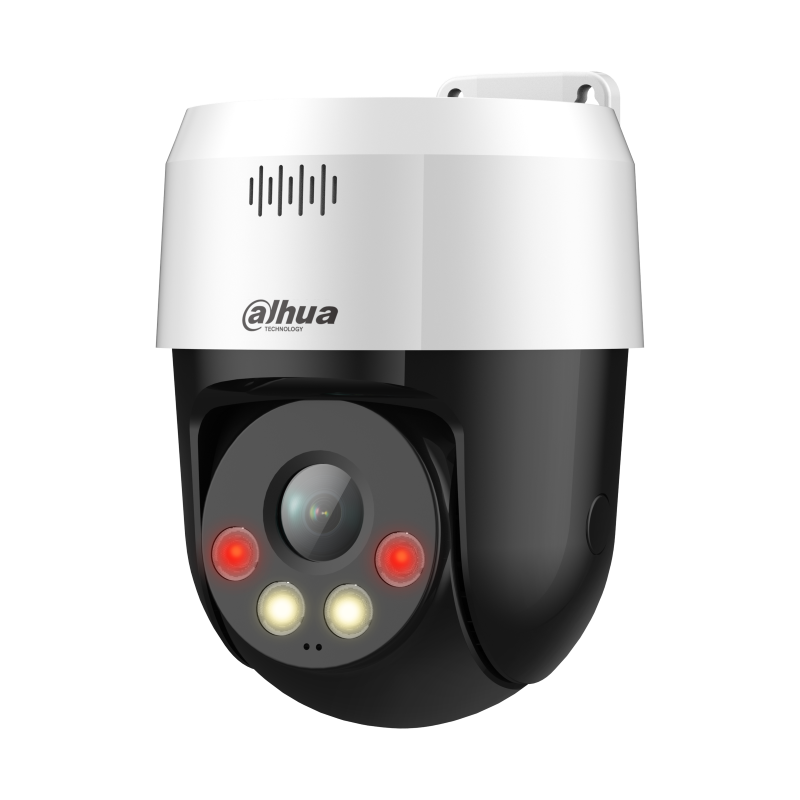

IP camera Dahua SD2A500NB-GNY-A-PV-400-S2
€123.42
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 5 Megapixel Progressive CMOS |
| RAM/ROM | 128 MB/128 MB |
| Resolution | 5M (2560 × 1920) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | 1 s – 1/100000 s |
| Minimum illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto/Off |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual/off |
| Number of fill LED lights | 2 |
| Storage | Micro SD card (256G) |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | 0° - 345° (pan) and 0° - 80° (tilt) |
| Manual mode speed | 0.1° ~74° /s (pan); 0.1° ~36.4° /s (tilt) |
| Preset speed | 62.0° /s (pan); 36.3° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| On power failure | Yes |
| Default motion detection | Presets |
Lens
| Lens | Fixed |
| Focal length | 4.0 mm |
| Max. aperture | F1.6 |
| Field of view | 80.4°(H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.3 m |
Video
| Frames per second | Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Video compression | H.265M; H.264H; H.264B; H.265; MJPEG (Sub Stream 1) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
| Electronic image stabilization | yes |
Perimeter protection
| AI features | Defog (electronic fog removal), Intrusion, ROI (Region of interest), SMD (human detection), Line crossing |
Smart features
| Motion detection | yes |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; |
Certification
| Certifications | CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1; FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
Additional ports
| Audio input | 1 channel: built-in microphone |
| Audio output | 1 channel: built-in speaker |
| Two-way audio | Built-in speaker and microphone |
| Audio compression | PCM; G.711a; G.711Mu; G.726; AAC |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
| Compatibility | RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Player; Smart Player; DMSS; ConfigTool; NVR; Smart PSS |
Power supply
| Power supply | 12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power consumption | < 9 W |
Operating conditions
| Operating temperature | -30°C to +55°C |
| Operating humidity | < 95% RH |
Construction
| Dimensions | Ø111 mm x 140.5 mm |
| Net weight | 0.5 kg |
| Gross weight | 1 kg |
