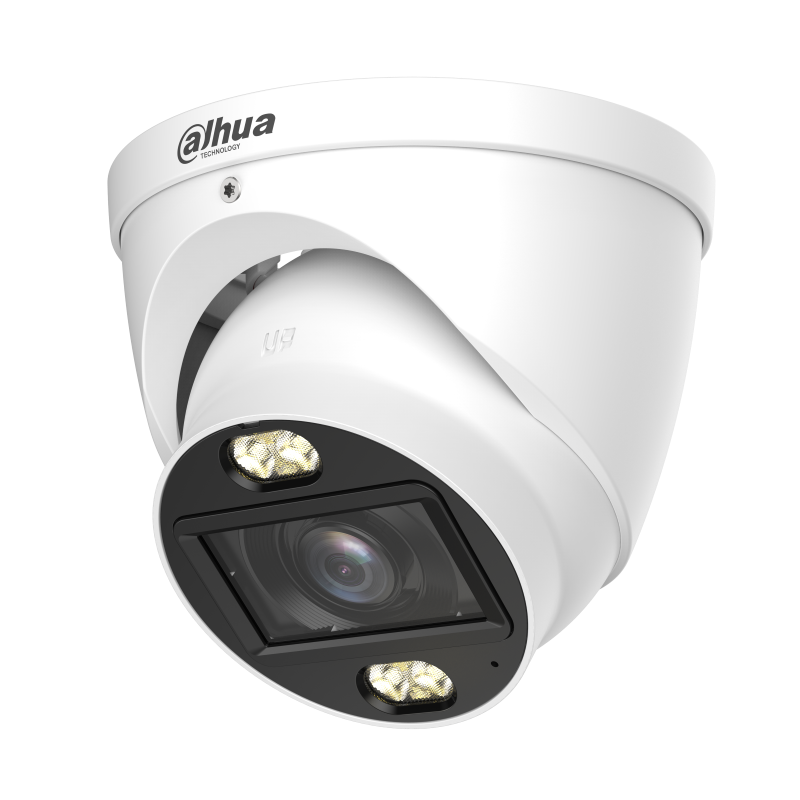

Analog camera Dahua HAC-HDW1801T-Z-IL-A-27135-S3-DIP
€100.98
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 4K Progressive CMOS |
| Resolution | 4K (3840 × 2160) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 80 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 4 |
| Fill light (white light) distance up to | 60 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 4 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 13.5 mm |
| Mounting type | Ø14 |
| Max. aperture | F1.6 |
| Field of view | 32.7°–111.8° (H) |
| Focus control | Fixed |
| Minimum focus distance | 1.2 m |
Video
| Frames per second | CVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H@50 fps NTSC: 960H@60 fps |
| BLC | BLC / HLC / WDR |
| WDR | WDR |
| White balance | Auto |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
Perimeter protection
| AI features | Smart Dual Illuminators |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Additional ports
| Video port | CVI/TVI/AHD/CVBS video output selectable over one BNC port (DIP switch) |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFB2203W, PFA156, PFA137, PFB305W, PFA150, PFA151, PFA106 |
Power supply
| Power supply | 12 VDC (±30%) |
| Power consumption | Max.7.4 W (12 VDC, IR on) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | Ø122 mm × 108.2 mm |
| Net weight | 0.6 kg |
| Gross weight | 0.76 kg |
