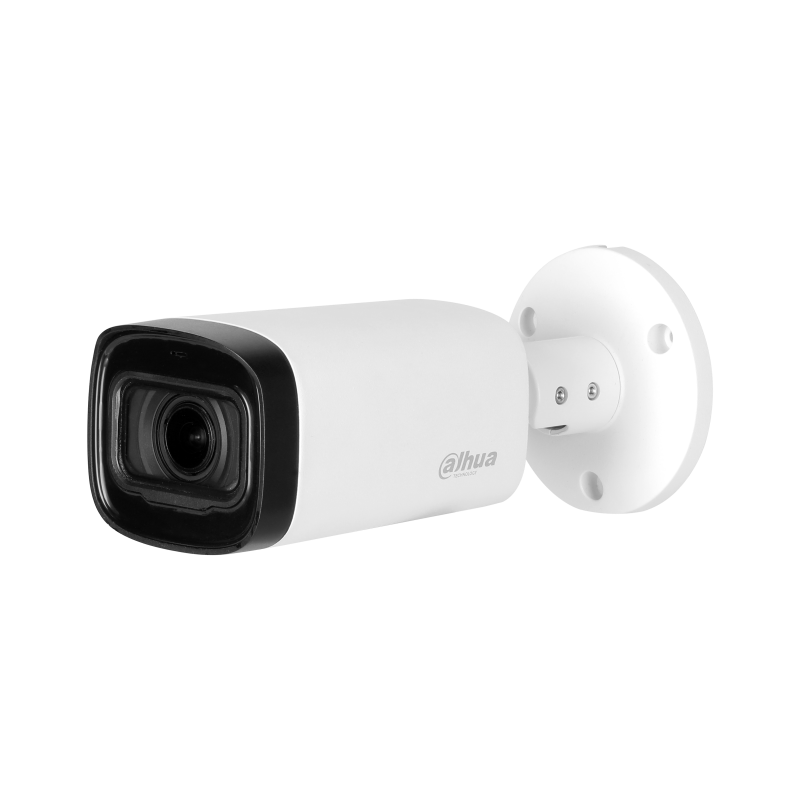

Analog camera Dahua HAC-HFW1801R-Z-A-27135-S2
€148.92
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Lite |
| Color | White |
| Image sensor | 8 Megapixel Progressive CMOS |
| Resolution | 4K (3840 × 2160) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F1.5 (Color, 30 IRE) 0.001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 80 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 4 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 13.5 mm |
| Zoom | 4x digital |
| Mounting type | Ø14 |
| Max. aperture | F1.5 |
| Field of view | 114° - 32°(H) |
| Iris Type | Fixed aperture |
| Focus control | Auto |
| Minimum focus distance | 0.8 m |
Video
| Frames per second | CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| White balance | Auto; Area WB |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Defog (electronic fog removal), Privacy masking |
Smart features
| Motion detection | yes |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFA130-E, PFA152-E |
Power supply
| Power supply | 12 VDC ± 30% |
| Power consumption | Max. 10.6W (12 VDC, IR on) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | 209.6 mm × 90.4 mm × 90.1 mm |
| Net weight | 0.55 kg |
| Gross weight | 0.72 kg |
