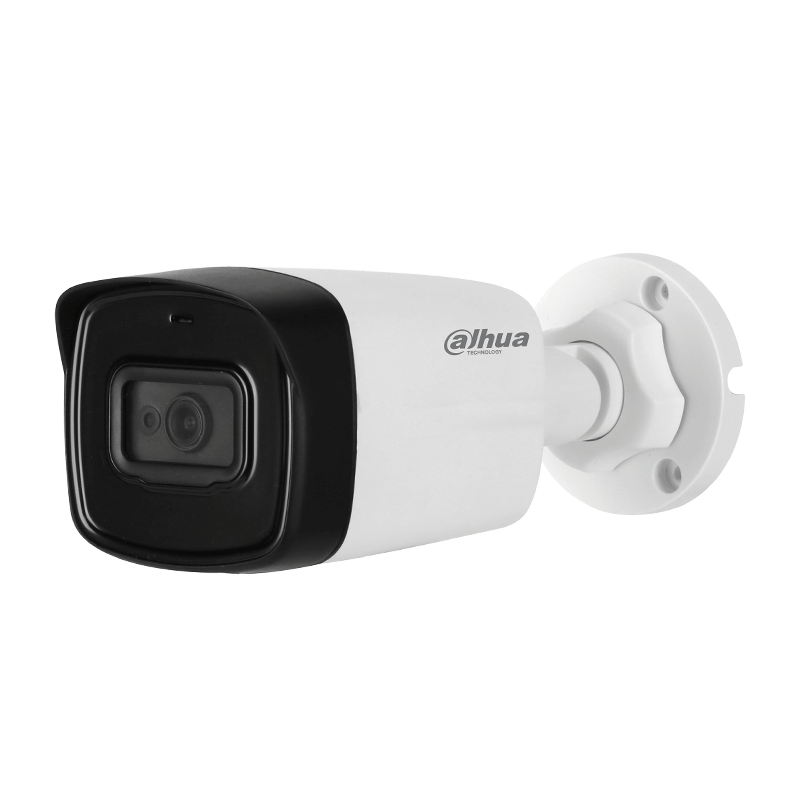

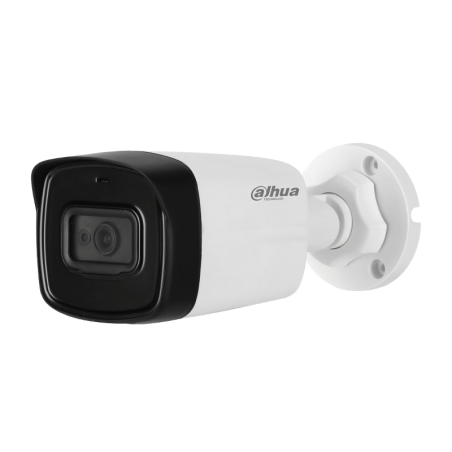

Analog camera Dahua HAC-HFW1800TL-A-0360B
€66.30
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Lite |
| Color | White |
| Image sensor | 1/2.7” 4K Progressive CMOS |
| Resolution | 8M (3840 × 2160) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| Day/night modes | Auto (ICR) |
| IR illumination up to | 80 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
Lens
| Lens | Fixed |
| Focal length | 3.6 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 87° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 1.9 m |
Video
| Frames per second | CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto / manual |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR |
| Mirror image | On/off |
| Privacy masks | On/off (8 zones, rectangle) |
Certification
| Certifications | CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Audio port | 1 incoming |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFA12A, PFA134, PFA152-E |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | Max. 6W (12V DC, IR on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | 198.9 mm x 80.2 mm x 76.2 mm |
| Net weight | 0.28 kg |
| Gross weight | 0.42 kg |
