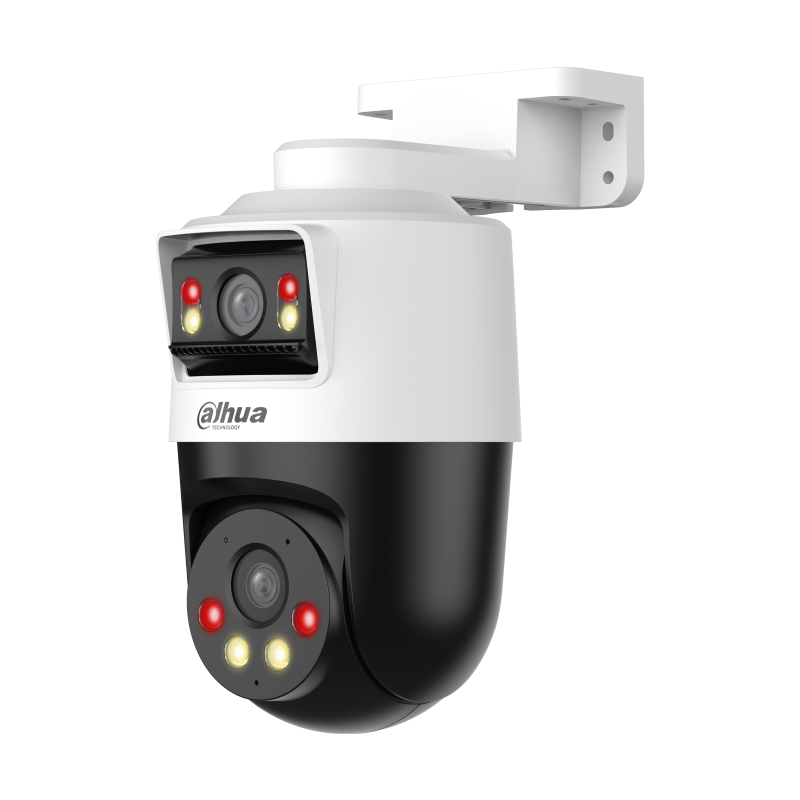

IP camera Dahua IPC-PTS1439B-E2-S-PV-0360B

€159.12
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

SeriesPT
ColorWhite
Image sensor2 x 1/3” 4 Megapixel Progressive CMOS
RAM/ROM512 MB/128 MB
Resolution2 x 4M (2560 × 1440)
Effective pixels4 + 4
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.008 lux@F1.6 (Color,30 IRE) 0.0008 lux@F1.6( B/W,30 IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs4
Fill light (white light) distance up to30 m
Fill light on/offAuto/manual
Number of fill LED lights4
StorageFTP; Micro SD card (256G)

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movementFixed camera: 0~326° pan and -10~50° tilt, PTZ: 0~350° pan and 0~90° tilt
Manual mode speed0.1° ~55.4° /s (pan); 0.1° ~29.3° /s (tilt)
Preset speed55.4° /s (pan); 29.3° /s (tilt)
Number of presets50
PTZ / PTyes
On power failureYes
Default motion detectionPresets

Lens

LensFixed
Focal length2 x 3.6 mm
Mounting typeM12
Max. aperture2 x F1.6
Field of view2 x 78° (H)
Focus controlFixed
Minimum focus distance2 x 1.5 m

Video

Frames per secondChannel 1 (PT Lens): Main stream: 2560 × 1440@(1–25 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25 fps) Channel 2 (Fixed Lens): Main stream: 2560 × 1440@(1–25 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
Bandwidth48 Mbps incoming
BitrateH.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0° / 180°
Mirror imageYes
Privacy masks4 zones
Region of interestyes

Perimeter protection

AI featuresActive deterrence, SMD Plus (human/vehicle detection), Smart Dual Illuminators, Privacy masking, ROI (Region of interest)

Smart features

Motion detectionyes
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD; security exception

Certification

CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio compressionG.711a; G.711Mu; PCM; G.726
Built-in microphoneyes
Built-in speakeryes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration
CompatibilityONVIF (Profile S & Profile G & Profile T); CGI
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS Lite; DSS; DMSS

Power supply

Power supply12 VDC (±30%); PoE (802.3af)
Power consumptionMax. 8.6 W (12 VDC); 10.5 W (PoE)

Operating conditions

Operating temperature-40°C to +50°C
Operating humidity< 95% RH (non-condensing)
Storage temperature-40°C to +50°C
Protection ratingIP66

Construction

MaterialPlastic
Dimensions159.4 mm × 110.1 mm × 210 mm
Net weight0.62 kg
Gross weight0.85 kg
Dahua
BIT-1720203

Specific References

ean13
6937552407671
