- Out of stock

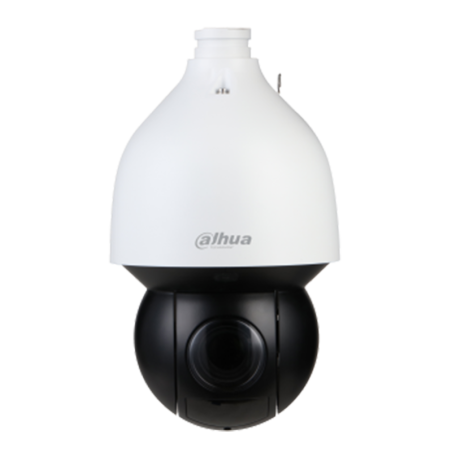

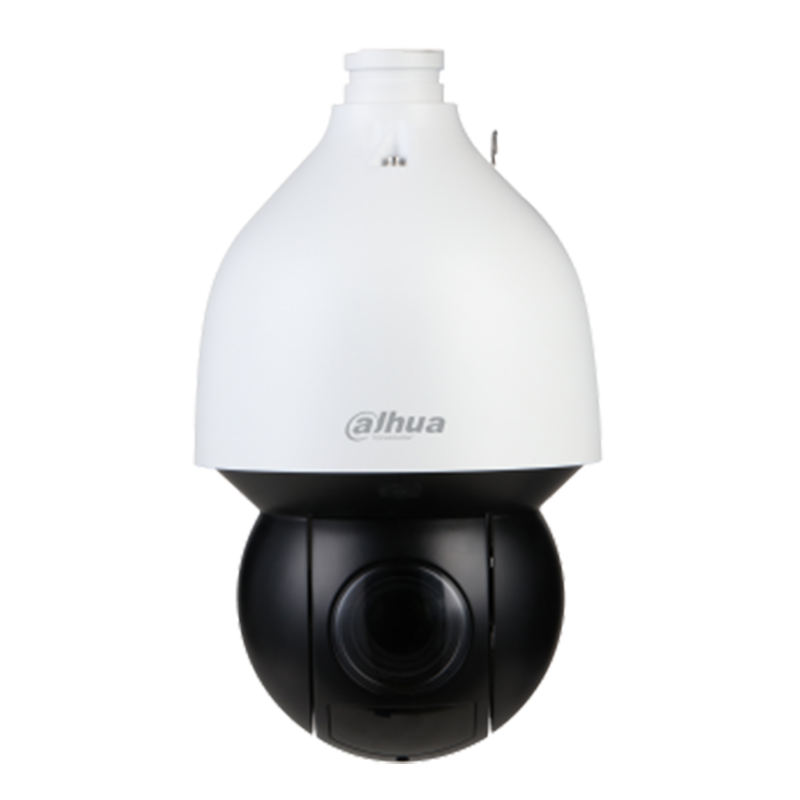

IP camera Dahua SD5A445GB-HNR
€1,333.14
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Image sensor | 1/2.8” 4 Megapixel Progressive STARVIS™ CMOS |
| RAM/ROM | 1 GB/4 GB |
| Resolution | 4M (2560 × 1440) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/1 s–1/30,000 s |
| Minimum illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 150 |
| IR On/Off Control | Priority to Zoom/Manual/Smart IR/Off |
| IR LEDs | 4 |
| Storage | FTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Housing movement | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°; 180° auto flip |
| Manual mode speed | 0.1° ~300° /s (pan); 0.1° ~200° /s (tilt) |
| Preset speed | 400° /s (pan); 300° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
Lens
| Lens | Varifocal |
| Focal length | 3.95 mm to 177.75 mm |
| Zoom | 45x optical; 16x digital |
| Max. aperture | F1.6 ~ F4.95 |
| Field of view | 65.7° - 1.9°(H) |
| Iris Type | Auto/Manual |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 0.1 m – 1.0 m |
Video
| Frames per second | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Video compression | H.264H; H.264B; H.264; H.265; MJPEG (Sub Stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Privacy masks | up to 24 zones |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Abandoned/missing object, AcuPick, Auto Patrol, Automatic object tracking, Defog (electronic fog removal), Face detection, Intrusion, Metadata, Parking space detection, People counting, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Auto tracking | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB,ANSI C63.4- 2014; UL: UL60950-1+CAN/CSA 22.2,No.60950-1 |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input/output | 2/1 |
| Audio compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Compatibility | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Max. number of users | 20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | DSS, DMSS |
| Compatible accessories | PFA120, PFB301C, PFB305W, PFA150, PFA151, PFB300C, PFA111 |
Power supply
| Power supply | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Power consumption | < 22W |
Operating conditions
| Operating temperature | -40°C to +70°C |
| Operating humidity | < 95% RH |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Dimensions | Ø190 mm × 332 mm |
| Net weight | 4.7 kg |
| Gross weight | 8 kg |
