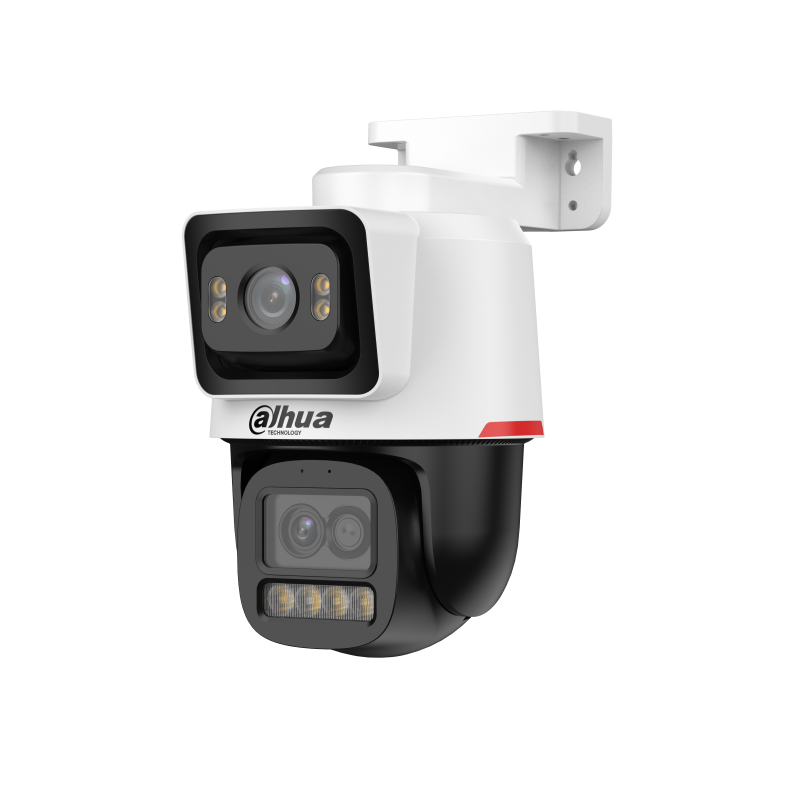

IP camera Dahua IPC-PTS2449C-4E3Z-S-PV-LED-0280B/3684-PRO

Name: IP camera Dahua IPC-PTS2449C-4E3Z-S-PV-LED-0280B/3684-PRO
Brand: Dahua
SKU: BIT-1720224
Price: 284.58 EUR
Availability: OutOfStock

€284.58

Tax included

Quantity

Out of stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Series	PT
Color	White
Image sensor	Fixed camera: 1/1.8” 4 Megapixel Progressive CMOS, PTZ camera: 1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM	512 MB/256 MB
Resolution	Fixed camera: 4MP (2688 x 1520), PTZ camera: 2MP (1920 x 1080)
Effective pixels	4 + 2 x 2
Scanning system	Progressive
Electronic shutter speed	1 s – 1/100000 s
Minimum illumination	Fixed camera: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) PT camera: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
Day/night modes	Color
Fill light (white light) distance up to	Fixed camera: 30, PTZ camera: 50 m
Fill light on/off	Auto/manual/off
Number of fill LED lights	4
Storage	FTP; Micro SD card (512 GB)

Camera

Signal-to-noise ratio	> 55dB
Housing movement	Fixed camera: Pan: 0° to 285°; Tilt: -7° to +20° (manual), PTZ camera: Pan: 0° to 350°; Tilt: 0° to +90°
Manual mode speed	40°/s (pan); 40°/s (tilt)
Preset speed	40° /s (pan); 40° /s (tilt)
Number of presets	80
PTZ / PT	yes
PTZ mode	8 Tours
On power failure	Yes
Default motion detection	Preset/Tour/Home position (setting supported only via DMSS)

Lens

Lens	Fixed
Focal length	Fixed camera: 2.8 mm, PTZ camera: 3.6 mm; 8.4 mm
Zoom	6x hybrid
Max. aperture	F1.0
Field of view	Fixed camera: 112° (H), PTZ camera: 81.5° – 15.1° (H)
Iris Type	Fixed aperture
Minimum focus distance	Fixed camera: 1.8 m, PTZ camera: 3.6 mm: 1.7 m, 8.4 mm: 6 m

Video

Frames per second	Fixed Lens: Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream: D1/VGA/CIF@(1–25/30 fps) PT Lens: Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream: D1/VGA/CIF@(1–25/30 fps)
Video compression	H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
Smart Codec	Smart H.265+/ Smart H.264+
Streaming capability	2 streams
Bandwidth	64 Mbps incoming
Bitrate	Fixed Lens: H264: 96 kbps–8192 kbps H265: 38 kbps–8192 kbps PT Lens: H264: 64 kbps–8192 kbps H265: 25 kbps–7424 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR
WDR	Fixed camera: 120dB, PTZ camera: DWDR
White balance	Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light
Gain Control	Auto / manual / gain priority
Noise reduction	2D NR/3D NR
Image rotation	180°
Region of interest	yes
Software defog	yes
Low-light visibility technology	WizColor

Perimeter protection

AI features

ROI (Region of interest), Defog (electronic fog removal), SMD Plus (human/vehicle detection), Auto tracking Lite, Line crossing, Intrusion, Perimeter protection

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing, Intrusion
Smart motion detection	yes
Alarm signal	Motion detection/tampering; audio detection; network disconnection detection; IP conflict detection; memory card status detection; storage space detection

Certification

Certifications

Additional ports

Audio input	1 channel: built-in microphone
Audio output	1 channel: built-in speaker
Audio compression	PCM, G.711A, G.711Mu
Built-in microphone	yes
Built-in speaker	yes
SD card	yes
SD card capacity	Micro SD up to 512 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;FTP;ICMP;IGMP;ARP;RTCP;RTP;RTMP
Compatibility	ONVIF (Profile S & Profile G & Profile T);CGI;SDK
Max. number of users	20
Streaming method	Unicast / Multicast
Web browser live view	IE, Chrome, Firefox, Safari
Management software	DMSS
Compatible accessories	PFA2590
