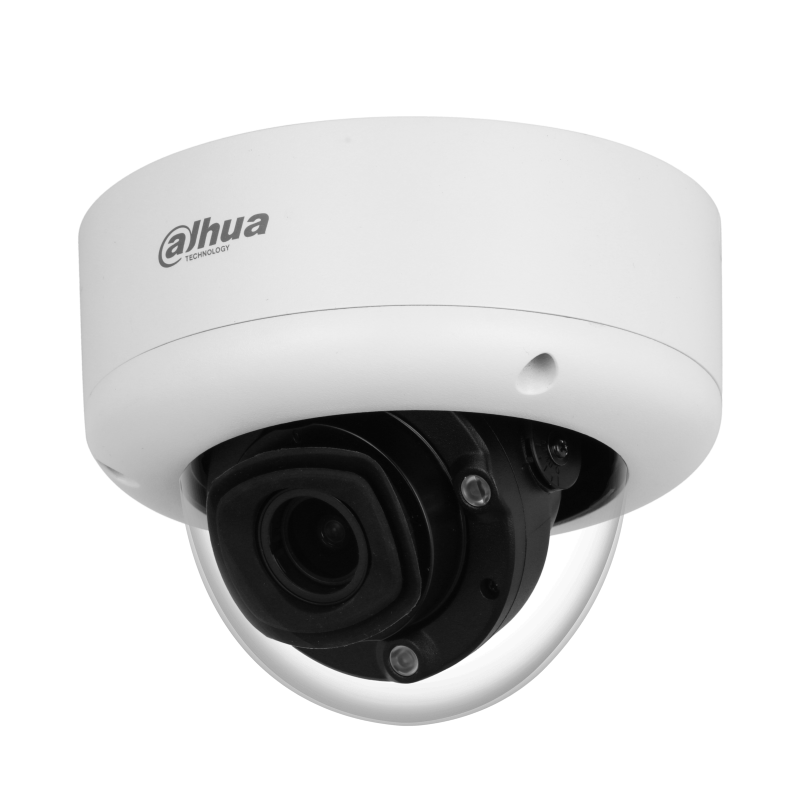

IP camera Dahua IPC-HDBW7842E1-Z-2712F-DC12AC24V-X
€1,352.52
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | WizMind |
| Color | White |
| Image sensor | 1/1.8” 8 Megapixel Progressive CMOS |
| RAM/ROM | 4 GB/8 GB |
| Resolution | 4K (3840 × 2160) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.0006 lux@F1.2 (Color, 30 IRE) 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 40 |
| IR On/Off Control | Auto |
| IR LEDs | 3 |
| Storage | FTP; SFTP; Micro SD card (1 TB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 355° (pan), 0° - 80° (tilt), 0° - 355° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 12 mm |
| Mounting type | Ø16 |
| Max. aperture | F1.2 |
| Field of view | 105°–48° (H) |
| Iris Type | P-Iris |
| Minimum focus distance | 1.8 m |
Video
| Frames per second | Default: Main Stream: 3840 × 2160@(1–25/30 fps) Sub stream: 1920×1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) High Frame Rate: Main Strea |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 5 streams |
| Bandwidth | 340 Mbps incoming |
| Bitrate | H.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 140dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 8 zones |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
Perimeter protection
| AI features | Abandoned/missing object, AcuPick, Defog (electronic fog removal), E-PTZ, EIS (Electronic image stabilization), Face detection, Face recognition, Heat map, Intrusion, Metadata, Parking space detection, People counting, Perimeter protection, PPE Detection, Privacy masking, ROI (Region of interest), Pet Detection, SMD Plus (human/vehicle detection) |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; abandoned object; missing object; detection |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 3/2 |
| Video port | 1 channel (CVBS output, BNC) |
| RS485 | 1 |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 1 TB |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Profile M; Auto Register |
| Compatibility | ONVIF (Profile S/Profile G/Profile T/ Profile M); CGI; P2P |
| Web browser live view | Chrome; IE11; Firefox |
| Management software | SmartPSS Lite; DSS; DMSS |
| Compatible accessories | PFB5201C, PFA156, PFA138, PFB211W, PFA101, PFB300C |
Power supply
| Power supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
| Power consumption | Max. 18.7 W (12 VDC); 24.8 W (24 VAC); 25.2 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +65°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø159 mm x 118 mm |
| Net weight | 1.16 kg |
| Gross weight | 1.36 kg |
