- Out of stock

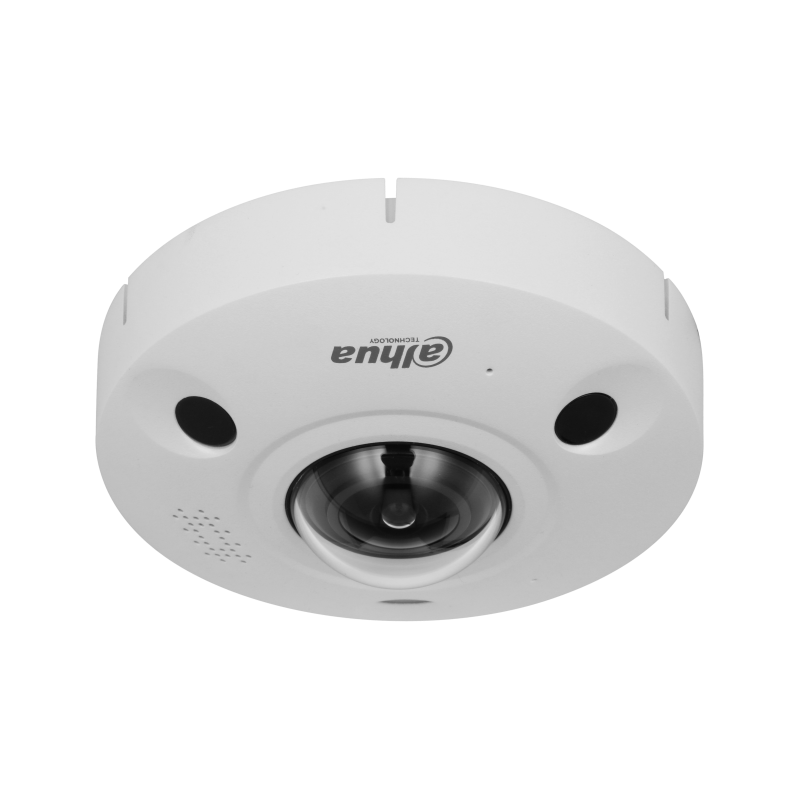

IP camera Dahua IPC-EBW8842-AS
€1,202.58
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Fisheye |
| Series | WizMind |
| Color | White |
| Image sensor | 1/1.7" 8 Megapixels Progressive CMOS |
| RAM/ROM | 2 GB/4 GB |
| Resolution | 4K (3280 × 2480) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 10 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 3 |
| Storage | FTP; Micro SD card (up to 256 GB); NAS; SFTP |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
Lens
| Lens | Fixed |
| Focal length | 1.85 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 185° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.4 m |
Video
| Frames per second | Main stream: 3280 × 2480@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–25/30 fps) |
| Video compression | H.265; H.264; H.264H; MJPEG (sub) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bitrate | H264: 8 kbps–16384 kbps H265: 3 kbps–13891 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Privacy masks | 4 zones |
| Region of interest | yes |
| Software defog | yes |
Perimeter protection
| AI features | Intrusion, Line crossing, Perimeter protection, Heat map, People counting, Fisheye dewarping |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; scene change; audio detection; voltage detection; ex |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 2 channels: wet contact, 5 mA 3–5 VDC |
| Alarm output | 2 outputs: dry contact 1000mA 30V DC/500mA 50V AC |
| Audio compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Built-in microphone | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Compatibility | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE; Edge; Firefox |
| Management software | Smart PSS; DSS; DMSS |
| Compatible accessories | PFA132-E, PFA100, PFB302S, PFB300C |
Power supply
| Power supply | 12 VDC/PoE+ (802.3at) |
| Power consumption | Max. 13 W (12 VDC); 13.9 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +70°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal |
| Dimensions | Ø149.8 mm x 59.8 mm |
| Net weight | 0.79 kg |
| Gross weight | 1.21 kg |
