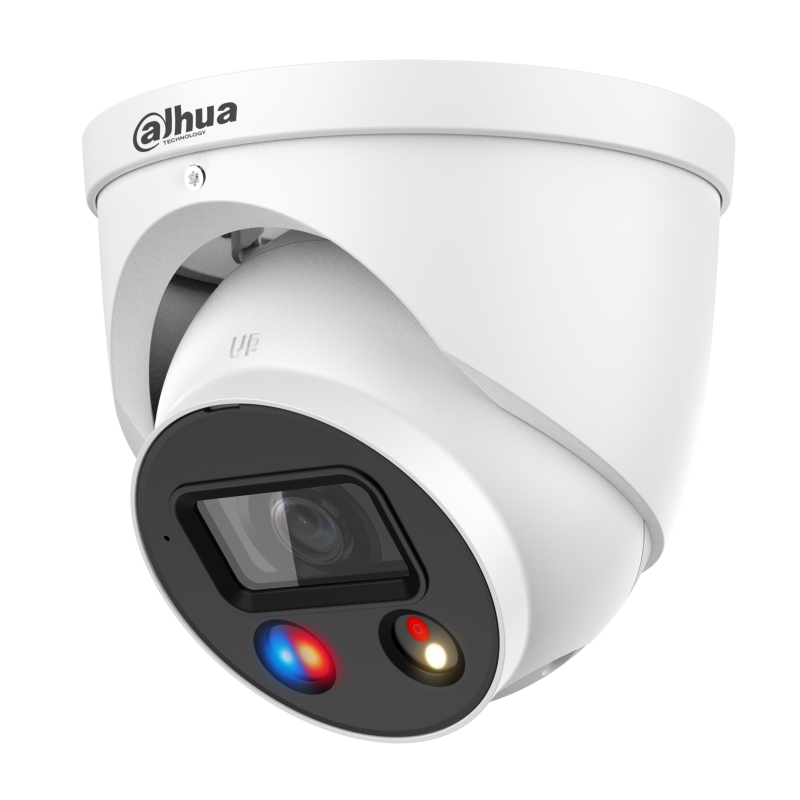

IP camera Dahua IPC-HDW3849H-AS-PV-0280B-S5

Name: IP camera Dahua IPC-HDW3849H-AS-PV-0280B-S5
Brand: Dahua
SKU: BIT-1720080_3
Price: 358.02 EUR
Availability: InStock

€358.02

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Eyeball
Series	WizSense
Color	White
Image sensor	1/2.7” 8 Megapixel Progressive CMOS
RAM/ROM	512 MB/128 MB
Resolution	4K (3840 × 2160)
Effective pixels	8
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	30
IR On/Off Control	Manual/Auto
IR LEDs	1
Fill light (white light) distance up to	30 m
Fill light on/off	Auto/manual
Number of fill LED lights	1
Storage	FTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation)

Lens

Lens	Fixed
Focal length	2.8 mm
Mounting type	M12
Max. aperture	F1.0
Field of view	106° (H)
Iris Type	Fixed aperture
Minimum focus distance	1.5 m

Video

Frames per second	Main stream: 3840 × 2160@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	AI H.265; AI H.264, Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	64 Mbps incoming
Bitrate	H.264: 32 Kbps–8192 Kbps; H.265: 32 Kbps–8192 Kbps
Bitrate control	CBR/VBR/ABR
BLC	BLC / HLC / WDR / SSA
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto
Scene Self-adaptation	Yes
Noise reduction	3D NR
Smart illumination	Yes
Image rotation	0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror image	Yes
Privacy masks	4 zones
Region of interest	yes
Software defog	yes

Perimeter protection

Performance	Line crossing; intrusion (supports classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) search	Smart search – works together with Smart NVR for more specialized search
AI features	Defog (electronic fog removal), Privacy masking, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), TiOC (red and blue light alarm), Perimeter protection, Intrusion, Line crossing

Smart features

Motion detection	yes
Smart motion detection	yes
Alarm signal	No SD card; SD card full; SD card error; service life warning (Dahua cards only); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; line crossing

Certification

Certifications

CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	1 input: 5mA 3V–5V DC
Alarm output	1 output: 300mA 12V DC
Audio compression	PCM; G.711a; G.711Mu; G.726; G.723
Built-in microphone	yes
Built-in speaker	yes
SD card	yes
SD card capacity	Micro SD up to 256 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Compatibility	ONVIF (Profile S; Profile G;Profile T); CGI
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	Smart PSS, DSS, DMSS
Compatible accessories	PFA137, PFB205W-E, PFA109, PFA152-E, PFB220C
