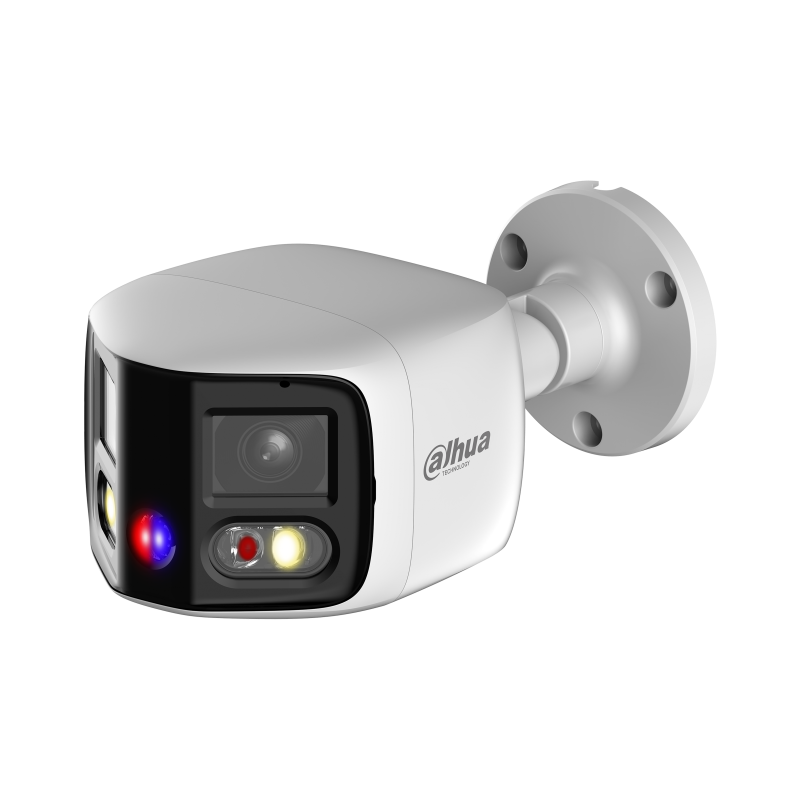

IP camera Dahua IPC-PFW3849S-A180-E2-AS-PV-0280B
€344.76
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Duo |
| Series | WizSense |
| Color | White |
| Image sensor | 2 x 1/1.7" 4 Megapixels Progressive CMOS |
| RAM/ROM | 1 GB/128 MB |
| Resolution | 4K (4096 × 1860) |
| Effective pixels | 8 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 25 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 20 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 2 |
| Storage | FTP; Micro SD card (up to 256 GB); NAS; SFTP |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 360° (pan), 0° - 77° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F1.4 |
| Field of view | 180° (H) |
| Focus control | Fixed |
| Minimum focus distance | 0.8 m |
Video
| Frames per second | Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | AI H.265; AI H.264, Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 120dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Privacy masks | 4 zones |
| Region of interest | yes |
| Software defog | yes |
Perimeter protection
| Performance | Line crossing, intrusion (both functions support classification and accurate detection of vehicles and humans) |
| AI (Artificial Intelligence) search | Smart search – works together with Smart NVR for more specialized search |
| AI features | Defog (electronic fog removal), E-PTZ, Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing, TiOC (red and blue light alarm) |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; off |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 1 input: 5mA 3V–5V DC |
| Alarm output | 1 output: 300mA 12V DC |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | RJ-45 (10/100 Base-T) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Compatibility | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS Lite; DSS; DMSS |
| Compatible accessories | PFA157, PFA130-E |
Power supply
| Power supply | DC 12V (±30%), PoE (802.3af) |
| Power consumption | Max. 9 W (12 VDC); 10.3 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | 183.1 mm × 99.0 mm × 78.0 mm |
| Net weight | 0.695 kg |
| Gross weight | 0.87 kg |
