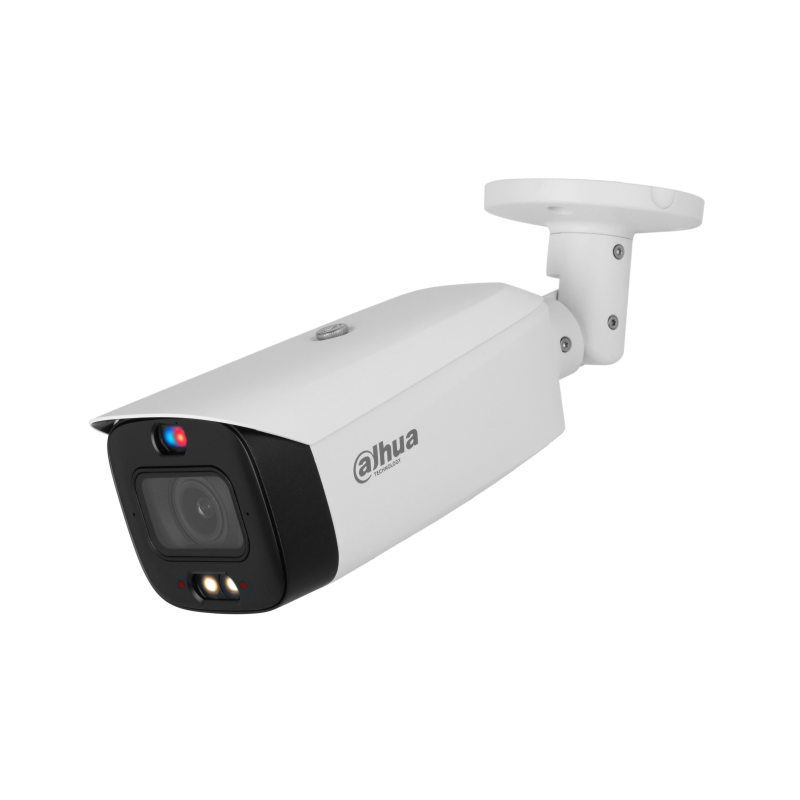

IP camera Dahua IPC-HFW3549T1-ZAS-PV-27135-S5

Name: IP camera Dahua IPC-HFW3549T1-ZAS-PV-27135-S5
Brand: Dahua
SKU: BIT-1720211
Price: 475.32 EUR
Availability: InStock

€475.32

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Bullet
Series	WizSense
Color	White
Image sensor	1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM	1 GB/256 MB
Resolution	5M (2960 × 1668)
Effective pixels	5
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	50
IR On/Off Control	Manual/Auto
IR LEDs	2
Fill light (white light) distance up to	50 m
Fill light on/off	Auto/manual
Number of fill LED lights	2
Storage	FTP; SFTP; Micro SD card (512 GB); NAS

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation)

Lens

Lens	Varifocal
Focal length	2.7 mm to 13.5 mm
Mounting type	Ø16
Max. aperture	F1.0
Field of view	113° - 36°(H)
Iris Type	Fixed aperture
Minimum focus distance	1.5 m

Video

Frames per second	Main stream: 2880 × 1620/2960 × 1668@(1–20 fps)/2688 × 1520 @(1–30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	AI H.265; AI H.264, Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	64 Mbps incoming
Bitrate	H.264:3 kbps–16384 kbps H.265:3 kbps–16384 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR / SSA
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto / manual
Scene Self-adaptation	Yes
Noise reduction	3D NR
Smart illumination	Yes
Image rotation	0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror image	Yes
Privacy masks	4 zones
Electronic image stabilization	yes
Software defog	yes

Perimeter protection

AI features

Privacy masking, ROI (Region of interest), Defog (electronic fog removal), EIS (Electronic image stabilization), SMD Plus (human/vehicle detection), AcuPick, Smart Dual Illuminators, Active deterrence, TiOC (red and blue light alarm), Perimeter protection, Intrusion, Line crossing

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing, Intrusion
Smart motion detection	yes
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; abandoned object; missing object; dete

Certification

Certifications

CE-LVD: EN 62368-1; CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	1 channel: wet contact, 5 mA 3–5 VDC
Alarm output	1 channel: wet contact, 300 mA 12 VDC
Two-way audio	Yes
Audio compression	G.711a; G.711Mu; PCM; G.726; G.723
Built-in microphone	yes
Built-in speaker	yes
SD card	yes
SD card capacity	Micro SD up to 512 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Compatibility	ONVIF (Profile S; Profile G; Profile T); CGI
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	SmartPSS Lite; DSS; DMSS
Compatible accessories	PFA130-E, PFA135, PFA152-E

Power supply

Power supply	12 VDC/PoE (802.3af)
Power consumption	Max. 7.9 W (12 VDC); 9.2 W (PoE)

Operating conditions

Operating temperature	-30°C to +60°C
Operating humidity	< 95% RH (non-condensing)
Storage temperature	-40°C to +60°C
Protection rating	IP67
