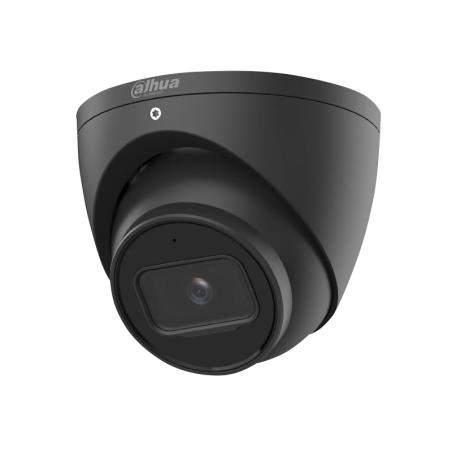

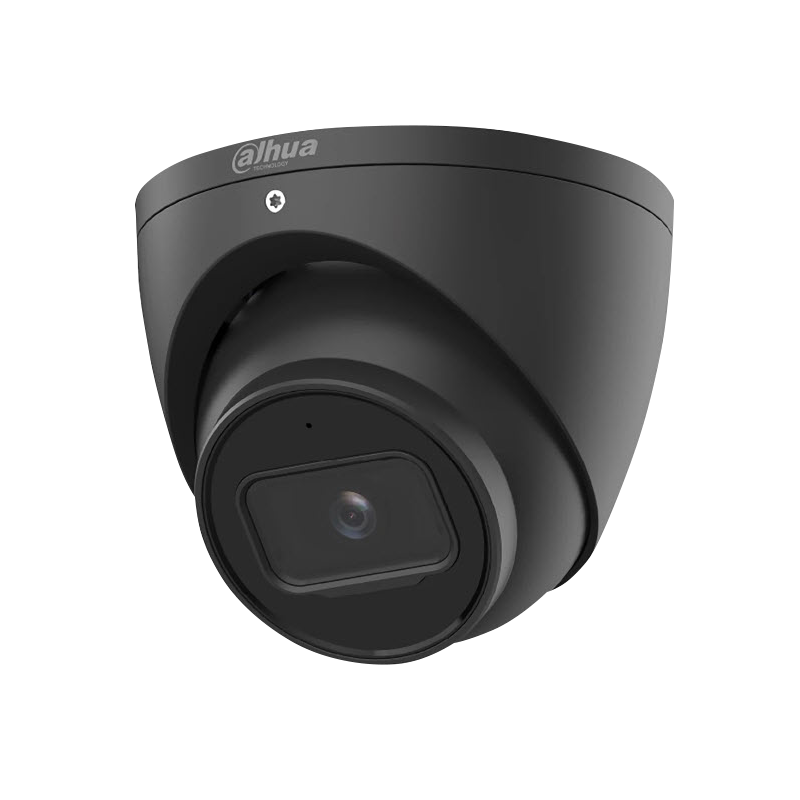

IP camera Dahua IPC-HDW3541EM-S-0280B-S2 - black

Name: IP camera Dahua IPC-HDW3541EM-S-0280B-S2 - black
Brand: Dahua
SKU: BIT-1720117
Price: 198.9 EUR
Availability: OutOfStock

€198.90

Tax included

Quantity

Out of stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Eyeball
Series	WizSense
Color	Black
Image sensor	1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM	512 MB/128 MB
Resolution	5M (2960 × 1668)
Effective pixels	5
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	50
IR On/Off Control	Manual/Auto
IR LEDs	2
Storage	FTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation)

Lens

Lens	Fixed
Focal length	2.8 mm
Mounting type	M12
Max. aperture	F1.4
Field of view	97° (H)
Iris Type	Fixed aperture
Minimum focus distance	1.1 m

Video

Frames per second	Main stream: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / 2688 × 1520@ (1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/ 704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	64 Mbps incoming
Bitrate	H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR / SSA
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto
Scene Self-adaptation	Yes
AFSA (anti-flicker self-adaptation)	Yes
Noise reduction	3D NR
Image rotation	0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror image	Yes
Privacy masks	4 zones
Region of interest	yes
Software defog	yes

Perimeter protection

Performance	Line crossing; intrusion (supports classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) search	Smart search – works together with Smart NVR for more specialized search
AI features	Defog (electronic fog removal), Privacy masking, ROI (Region of interest), Intrusion, Line crossing

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing; Intrusion
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; scene change; audio detection; voltage detection

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Additional ports

Audio compression	PCM; G.711a; G.711Mu; G.726; G.723
Built-in microphone	yes
SD card	yes
SD card capacity	Micro SD up to 256 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Compatibility	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	Smart PSS, DSS, DMSS
Compatible accessories	PFA139, PFB204W, PFA152-E, PFA106, PFB220C
