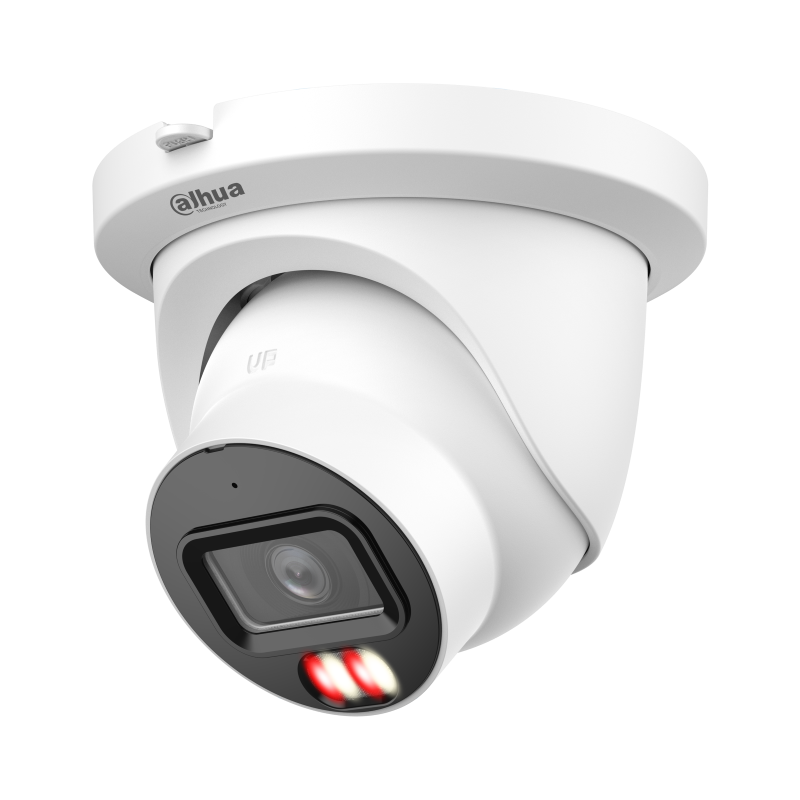

IP camera Dahua IPC-HDW5559TM-ASE-IL-0280B

Name: IP camera Dahua IPC-HDW5559TM-ASE-IL-0280B
Brand: Dahua
SKU: BIT-1720085_4
Price: 316.2 EUR
Availability: OutOfStock

€316.20

Tax included

Quantity

Out of stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Eyeball
Series	WizMind
Color	White
Image sensor	1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM	2 GB/4 GB
Resolution	5M (2960 × 1668)
Effective pixels	5
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	50
IR On/Off Control	Manual/Auto
IR LEDs	2
Fill light (white light) distance up to	50 m
Fill light on/off	Auto/manual
Number of fill LED lights	2
Storage	FTP; SFTP; Micro SD card (1 TB); NAS

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0° - 360° (pan), 0° - 80° (tilt) and 0° - 360° (rotation)

Lens

Lens	Fixed
Focal length	2.8 mm
Mounting type	M12
Max. aperture	F1.6
Field of view	108.4° (H)
Iris Type	Fixed aperture
Minimum focus distance	1 m

Video

Frames per second	Main stream: 2960×1668@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	AI, Smart H.265+/ Smart H.264+
Streaming capability	4 streams
Bandwidth	80 Mbps incoming
Bitrate	H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR / SSA
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto / manual
Scene Self-adaptation	Yes
Noise reduction	3D NR
Smart illumination	Yes
Image rotation	0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror image	Yes
Privacy masks	4 mosaics + 8 color sectors
Region of interest	yes
Software defog	yes

Perimeter protection

AI features

Smart Dual Illuminators, Defog (electronic fog removal), ROI (Region of interest), Privacy masking, Perimeter protection, Intrusion, Line crossing, SMD Plus (human/vehicle detection), AcuPick, Face detection, People counting, Heat map, Metadata, Parking space detection, Scene Changing

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing, Intrusion
Smart motion detection	yes
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; loitering detection; people gathering; detection

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	1 channel: wet contact, 5 mA 3–5 VDC
Alarm output	1 output: 1000mA 30V DC/500mA 50V AC
Audio compression	G.711a; G.711Mu; PCM; G.726; G.723
Built-in microphone	yes
SD card	yes
SD card capacity	Micro SD up to 1 TB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Compatibility	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Max. number of users	20
Web browser live view	Chrome; IE11; Firefox
Management software	DSS; DMSS; DoLynk Care

Power supply

Power supply	12 VDC (±30%); PoE+ (802.3at); ePoE
Power consumption	Max. 13.3 W (12 VDC); 15.6 W (PoE)

Operating conditions

Operating temperature	-40°C to +60°C
Operating humidity	< 95% RH (non-condensing)
Storage temperature	-40°C to +60°C
Protection rating	IP67
