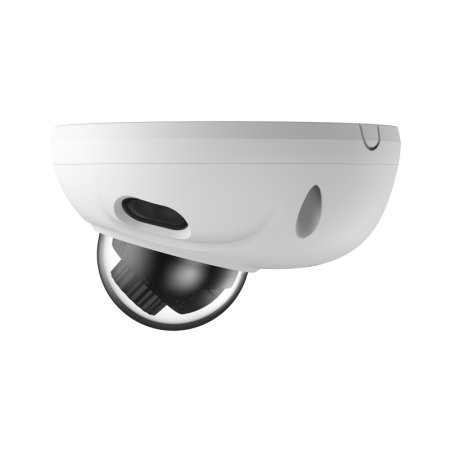

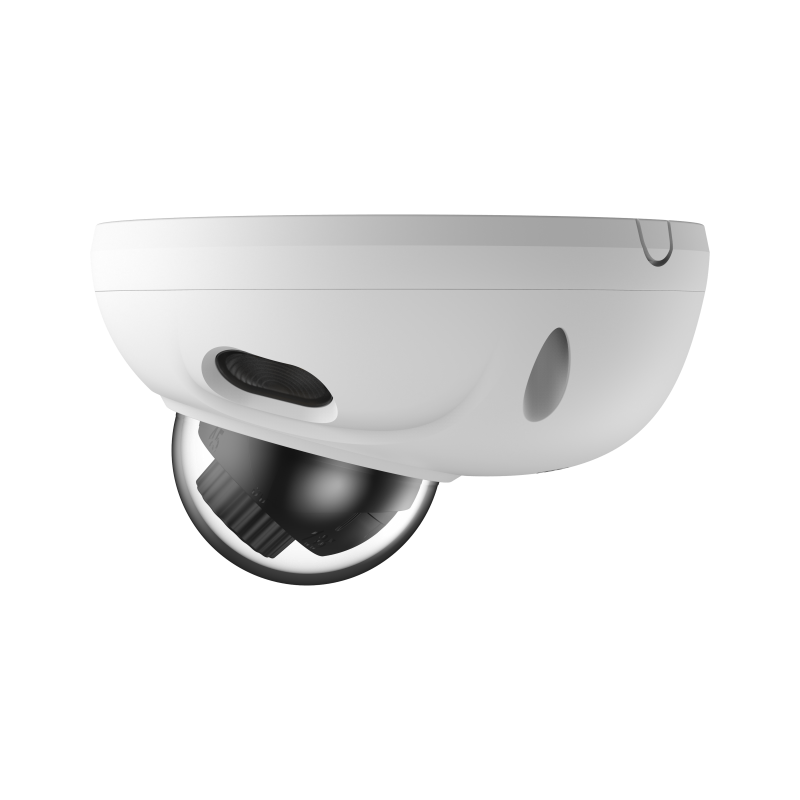

IP camera Dahua IPC-HDBW3649F-AS-IL-0280B

€246.84
Tax included
Quantity

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeDome
SeriesWizSense
ColorWhite
Image sensor1/2.7” 6 Megapixel Progressive CMOS
RAM/ROM1 GB/256 MB
Resolution6M (3288 × 1850)
Effective pixels6
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.008 Lux@F1.6 (Color, 30 IRE) 0.0008 Lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs4
Fill light (white light) distance up to30 m
Fill light on/offAuto/manual
Number of fill LED lights4
StorageFTP; SFTP; Micro SD card (512 GB); NAS

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movementPan: -30°–30°; Tilt: 0°–80°; Rotation: 0° to 360°

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.6
Field of view108.4° (H)
Focus controlFixed
Minimum focus distance1.4 m

Video

Frames per secondMain stream: 3288 × 1850@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Smart CodecSmart H.265+/ Smart H.264+, AI H.265; AI H.264
Streaming capability3 streams
Bandwidth64 Mbps incoming
BitrateH.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Bitrate controlCBR/VBR/ABR
BLCBLC / HLC / WDR / SSA
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Scene Self-adaptationYes
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror imageYes
Privacy masks8 zones
Software defogyes

Perimeter protection

AI featuresDefog (electronic fog removal), Privacy masking, Perimeter protection, Intrusion, Line crossing, SMD Plus (human/vehicle detection), AcuPick, Face detection, Scene Changing, Smart Dual Illuminators

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; scene change; audio detection; voltage detection

Certification

CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input1 input: wet contact, 5 mA 3–5 VDC or dry contact
Alarm output1 channel: wet contact, 300 mA 12 VDC
Audio compressionPCM; G.711a; G.711Mu; G.726; G.723
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 512 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
CompatibilityONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Max. number of users20
Web browser live viewChrome; IE11; Firefox
Management softwareSmart PSS Lite; DSS; DMSS; DoLynk Care

Power supply

Power supply12 VDC (±30%); PoE (802.3af)
Power consumptionMax. 4.6 W (12 VDC); 10.1 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH (non-condensing)
Storage temperature-40°C to +60°C
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ111 mm x 64.8 mm
Net weight0.423 kg
Gross weight0.59 kg
