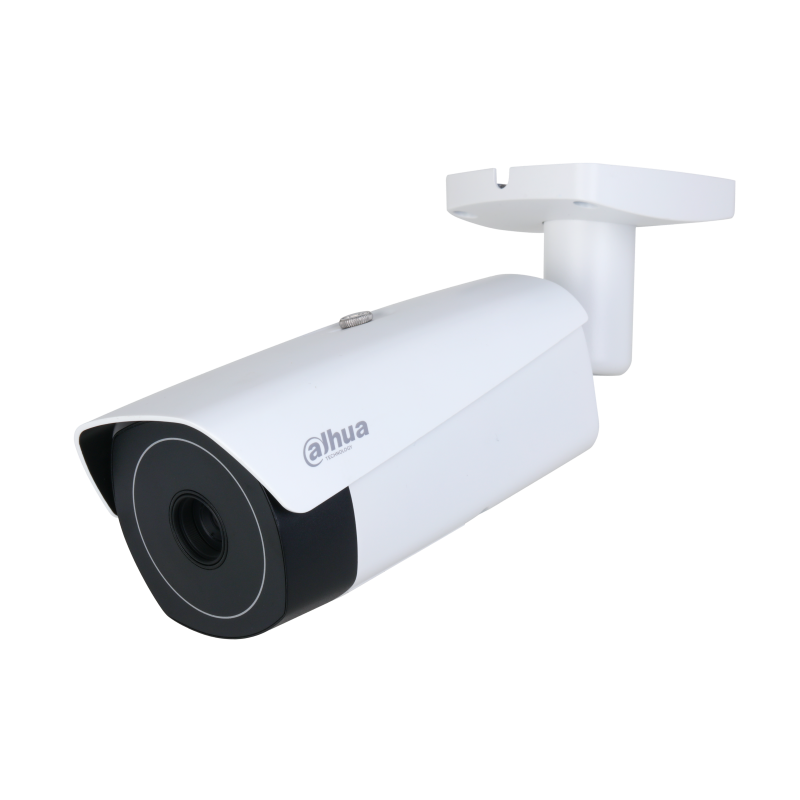

IP camera Dahua TPC-BF5601-TB13
€7,461.82
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Thermal |
| Color | White |
| Image sensor | Thermal camera: VOx uncooled thermal sensor technology |
| Resolution | Thermal camera: 640 × 512 |
| Storage | FTP; Micro SD card (512 GB) |
Camera
| Thermal camera specific features | Pixel size 12 μm; Thermal sensitivity (NETD) <35mK@f/1.0; Spectral range 8~14 μm; Thermal lens: 13 mm; 18 color palettes (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 etc.); Temperature measurement range |
Lens
| Focal length | 13 mm |
| Max. aperture | F1.0 |
| Field of view | 37° (H) |
| Minimum focus distance | 4 m |
Video
| Frames per second | Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Thermal (60 Hz): Main stream: 1 fps–30 fps,30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Bandwidth | 64 Mbps incoming |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
Perimeter protection
| AI features | Heat detection, Digital Detail Enhancement (DDE), Hot and cold spot tracking, SMD Plus (human/vehicle detection), Perimeter protection, Intrusion, Line crossing |
Smart features
| Intelligent video surveillance | Line crossing; Intrusion |
| Smart motion detection | yes |
Certification
| Certifications | CE, FCC |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input/output | 2/2 |
| Video port | 1 channel BNC output / CVBS video output |
| RS485 | 1 |
| Audio compression | G.711a; G.711mu; AAC; PCM |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Network protocols | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP;Multicast; SFTP; 802.1x; |
| Compatibility | ONVIF; CGI; DAHUA SDK |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Compatible accessories | PFA121, PFA152-E, PFA151 |
Power supply
| Power supply | 12 VDC ± 20%, PoE (802.3af), ePoE |
| Power consumption | < 14W |
Operating conditions
| Operating temperature | -30°C to +70°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +70°C |
| Protection rating | IP67 |
Construction
| Dimensions | 291 mm × 103 mm × 97 mm |
| Net weight | 1.4 kg |
| Gross weight | 1.9 kg |
