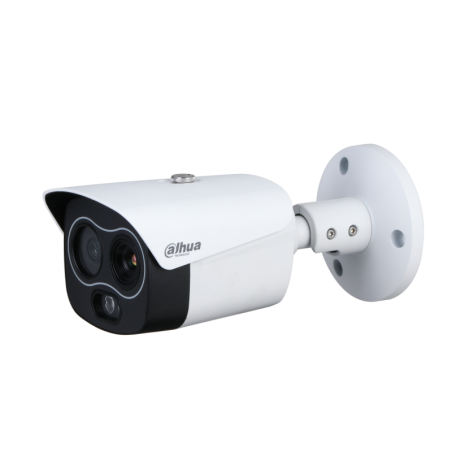

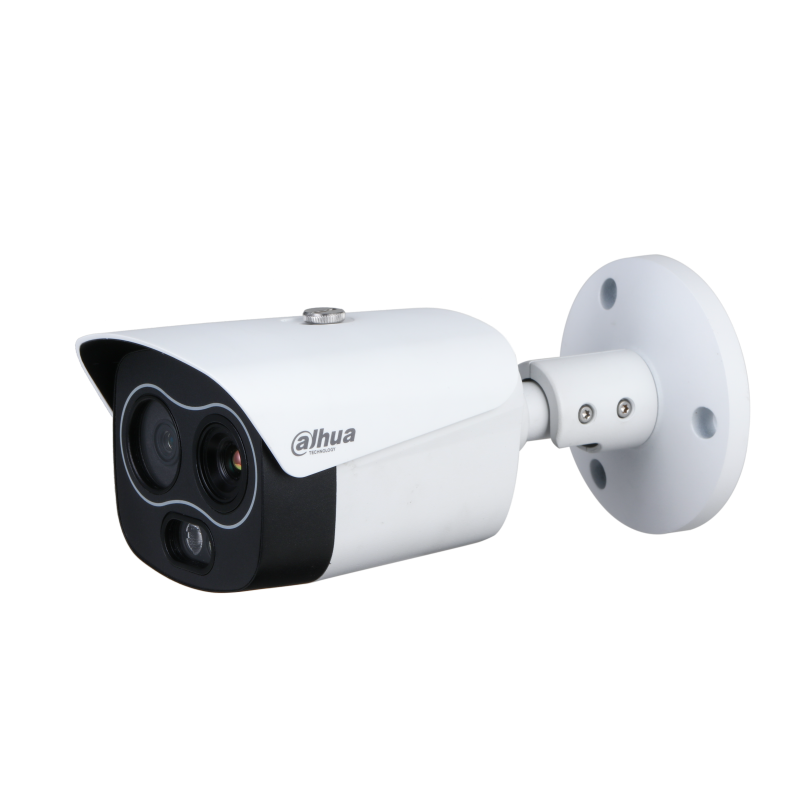

Thermal camera Dahua TPC-BF1241-TB7F8-DW-S8
€876.18
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Thermal |
| Color | White |
| Image sensor | Thermal camera with Vanadium Oxide Uncooled FPA technology + 1/2.7" 4 Megapixel visible camera |
| Resolution | Thermal camera: 256 × 192 + Visible camera: 4MP |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Visible camera 1/30000s–1s |
| Minimum illumination | Visible camera Color: 0.05 lux B&W: 0.005 lux 0 lux (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Thermal camera specific features | Pixel size 12μm; Spectrum 8μm–14μm; Thermal sensitivity (NETD) < 40 mK (@f/1.0, 25 Hz, 300 K); Max. aperture F1.0; Digital Detail Enhancement (DDE) - Yes; Digital zoom - 16 levels; AGC Auto/Manual; Noise redu |
Lens
| Lens | Thermal camera: Fixed + Visible camera: Fixed |
| Focal length | Thermal camera: 7 mm + Visible camera: 8 mm |
| Max. aperture | Thermal camera: F1.0 + Visible camera: F2.0 |
| Field of view | Thermal camera H: 24° + Visible camera H: 33.4° |
| Iris Type | Fixed aperture |
| Minimum focus distance | Thermal camera: 1 m + Visible camera: 2.5 m |
Video
| Frames per second | Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Vi |
| Video compression | H.265; H.264; H.264H; MJPEG |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Region of interest | yes |
Perimeter protection
| AI features | Line crossing, Intrusion, Perimeter protection, Digital Detail Enhancement (DDE), ROI (Region of interest), Hot and cold spot tracking, SMD Plus (human/vehicle detection), Smoking Detection, Call Detection, Heat detection |
Smart features
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input/output | 2/2 |
| RS485 | 1 |
| Audio compression | G.711a; G.711mu; PCM |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Compatibility | ONVIF; CGI; DAHUA SDK |
| Max. number of users | 10 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Compatible accessories | PFA130-E, PFA152-E |
Power supply
| Power supply | 12V±20% DC; POE |
| Power consumption | Max. <8.5 W (12 VDC), 10 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +70°C |
| Protection rating | IP67 |
Construction
| Dimensions | 205.5 mm × 90.4 mm × 90.1 mm |
| Net weight | 0.9 kg |
| Gross weight | 1.3 kg |
