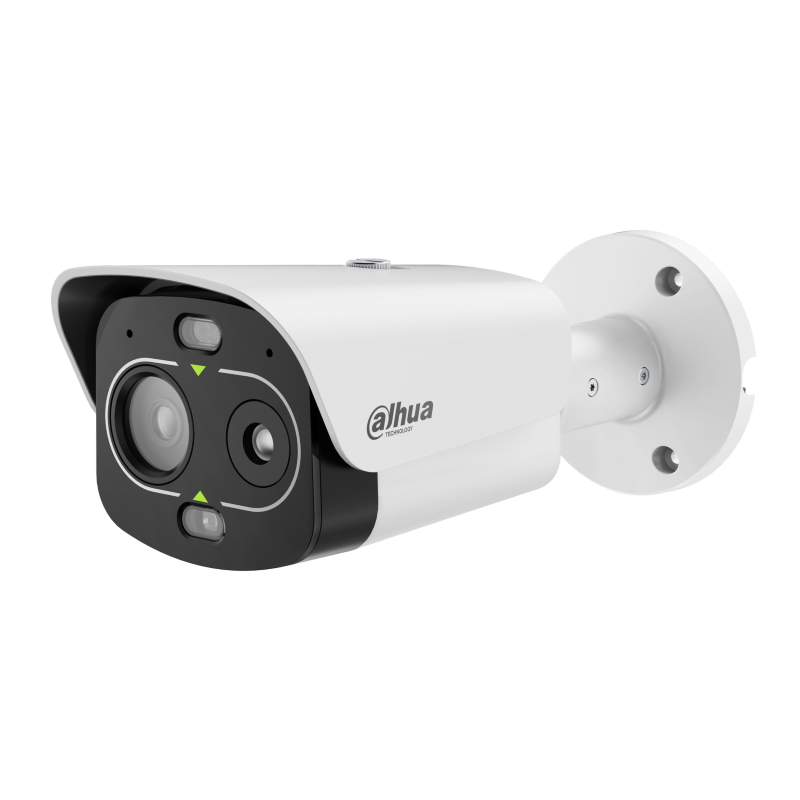

Thermal camera Dahua TPC-BF1241-TB3F4-DW-S8-V1
€910.86
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Thermal |
| Color | White |
| Image sensor | Thermal camera with Vanadium Oxide Uncooled FPA technology + 1/1.8" 4 Megapixel visible camera |
| Resolution | Thermal camera: 256 × 192 + Visible camera: 4MP |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Visible camera 1/30000s–1s |
| Minimum illumination | Visible camera Color: 0.05 lux B&W: 0.005 lux 0 lux (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Thermal camera specific features | Pixel size 12μm; Spectral range 8μm–14μm; Thermal sensitivity (NETD) < 25 mK (@f/1.0); Aperture F1.0; Digital Detail Enhancement (DDE) Yes; Digital zoom 16 levels; AGC Auto/Manual; Noise reduction 2D NR; 3D NR; Image flip |
Lens
| Lens | Fixed |
| Focal length | Thermal camera: 3.5 mm + Visible camera: 4 mm |
| Zoom | Thermal camera: 16 levels |
| Max. aperture | Thermal camera: F1.0 + Visible camera: F1.6 |
| Field of view | Thermal camera H: 50.6° + Visible camera H: 88° |
| Iris Type | Fixed aperture |
| Minimum focus distance | Thermal camera: 0.5 m + Visible camera: 1 m |
Video
| Frames per second | Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default; Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default; Thermal (60 Hz): Main stream: 1 fps– |
| Video compression | H.265; H.264; H.264H; MJPEG |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 0°/90°/180°/270° |
| Region of interest | yes |
Perimeter protection
| AI features | ROI (Region of interest), Perimeter protection, Line crossing, Intrusion, Heat detection, Digital Detail Enhancement (DDE), Fire detection, Hot and cold spot tracking, SMD Plus (human/vehicle detection), Smoking Detection, Smoke detection, Call Detection |
Smart features
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
Additional ports
| Audio input | 1 |
| Audio output | 2 |
| Alarm input/output | 2/2 |
| RS485 | 1 |
| Audio compression | G.711a; G.711mu; PCM; AAC |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x |
| Compatibility | ONVIF; CGI; DAHUA SDK |
| Max. number of users | 12 |
| Web browser live view | Chrome; IE11; Firefox |
| Compatible accessories | PFA157, PFA130-E |
Power supply
| Power supply | 12 (±20%)–24 VDC; PoE (802.3af) |
| Power consumption | Max. <12 W (12 VDC); 11.5 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +65°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +70°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Dimensions | 233 mm × 97.6 mm × 99.8 mm |
| Net weight | 1.1 kg |
| Gross weight | 1.4 kg |
