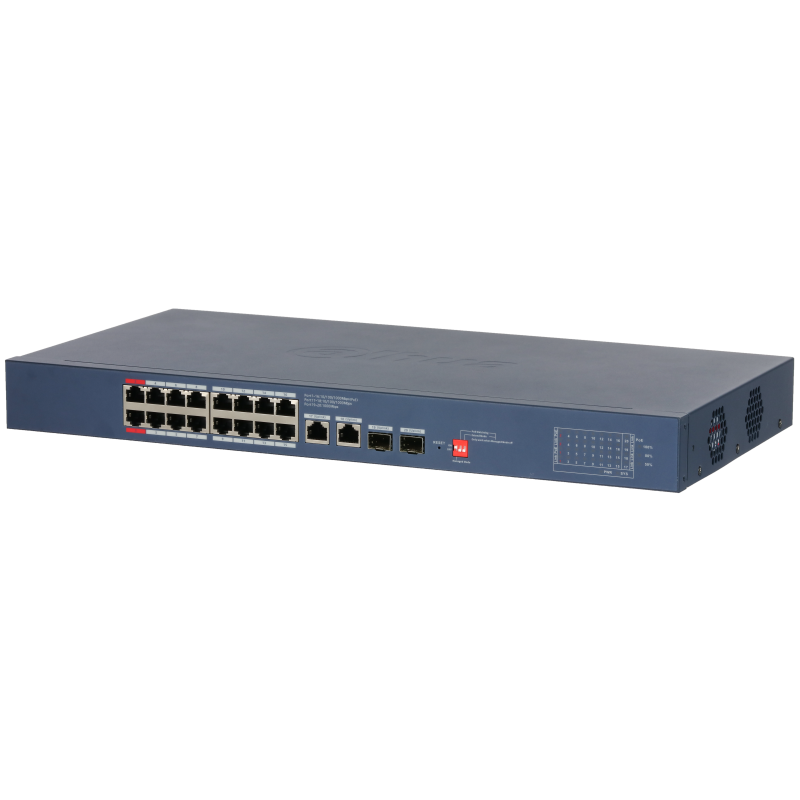

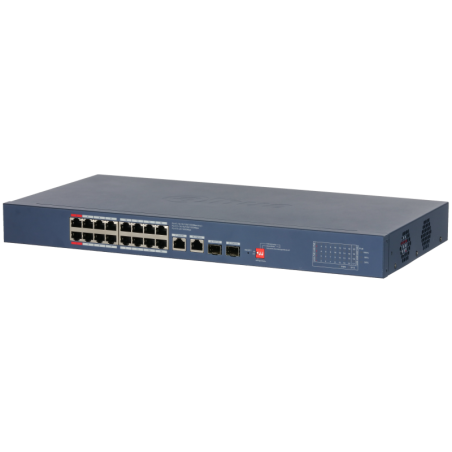

Switch Dahua CS4220-16GT-135

Name: Switch Dahua CS4220-16GT-135
Brand: Dahua
SKU: 1750028_3
Price: 200.94 EUR
Availability: InStock

€200.94

Tax included

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Managed	yes
Layer	Layer 2
Gigabit	yes
PoE	yes
Hi-PoE	Ports 1 and 2: 90W (orange ports)
Number of ports	16
Mounting type	Communication cabinet or free-standing

Ethernet ports	16 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink); 2 × SFP 1000 Mbps (Uplink)
Optical ports	2*1000 Mbps
PoE consumption	Ports 1 and 2 ≤90W, Ports 3 to 16 ≤30W, Total ≤135W
PoE pin assignment	Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-); Port 3-16: 1,2, (V+), 3,6, (V-)
PoE protocols	IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Watchdog	yes
Compliant with standards	IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
Switching capacity	40Gbps
Packet forwarding rate	29.76 Mpps
Packet buffer memory	4Mbit
MAC table	8000
Flow control	Supports IEEE802.3X-based flow control
Power supply	100–240 VAC, 47–63 Hz, max 3 A
Operating temperature	-10°C ~ 55°C
Operating humidity	10% ~ 90% (non-condensing)
Electrostatic protection	Air discharge - 8KV; Contact discharge - 6KV
Lightning protection	Common mode 6KV, Differential mode 1KV
Weight (net)	2.4 kg
Dimensions (W x L x H)	440mm × 228.81mm × 43.65mm

VLAN support	802.1Q Standard VLAN
Port aggregation	Static link aggregation
Port mirroring	Local Port Mirroring, N:1 Mirroring
DHCP support	DHCP client
Security features	Port isolation
Control	Web Management, Cloud Management, Logs, Fault Alarm
PoE management	Power consumption management, Power on/off, Overload power cut-off
