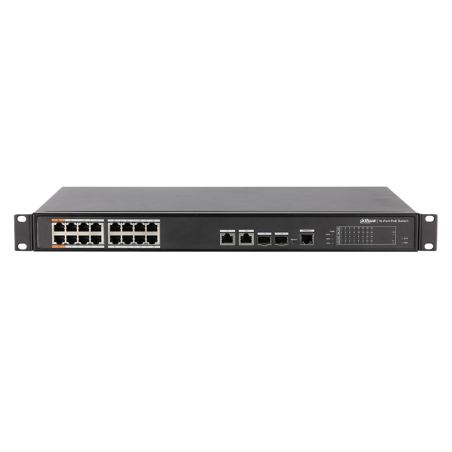

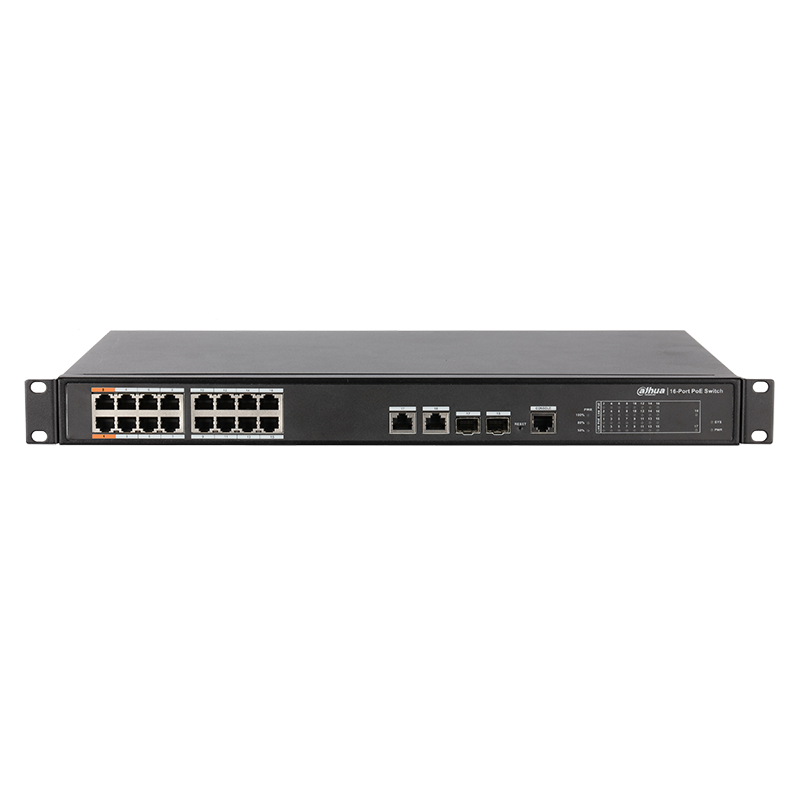

Switch Dahua PFS4218-16ET-240-V3
€366.18
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | yes |
| Layer | Layer 2 |
| Gigabit | yes |
| PoE | yes |
| Hi-PoE | Ports 1 and 2: 90W (orange ports) |
| Number of ports | 16 |
| Usage type | Standard environment |
Detailed specifications
| Ethernet ports | 16 × RJ-45 10 M/100 M (PoE), 2 × RJ-45 10 M/100 M/1000 M (uplink), 2 × SFP 1000 M (uplink) (combo) |
| PoE consumption | Ports 1–2 ≤90W, Ports 3–16 ≤30W, Total ≤190W |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt |
| PoE Watchdog | yes |
| Compliant with standards | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z |
| Switching capacity | 8.8G |
| Packet forwarding rate | 5.36Mpps |
| Packet buffer memory | 2.75Mb |
| MAC table | 4000 |
| Flow control | Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex) |
| Power supply | 100V AC–240V AC |
| Operating temperature | -10°C ~ 55°C |
| Operating humidity | 10% ~ 90% |
| Electrostatic protection | Air discharge 8KV, Contact discharge 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Dimensions (W x L x H) | 440mm x 300mm x 44mm |
Additional features
| VLAN support | 802.1Q Standard VLAN |
| Spanning Tree protocols | IEEE 802.1d (STP); 802.1w (RSTP) |
| Port aggregation | Static; LACP |
| Port mirroring | One-to-one; many-to-one |
| DHCP support | DHCP client |
| Security features | Hardware support for port-based IP and MAC binding, port-based MAC filtering and IEEE802.1x port authentication |
| QoS/Quality of Service | Low and high priority, WRR 802.1P, DSCP protocol priorities |
| PoE management | Power consumption management, Power on/off, Overload power cut-off, Green PoE, Legacy support |
