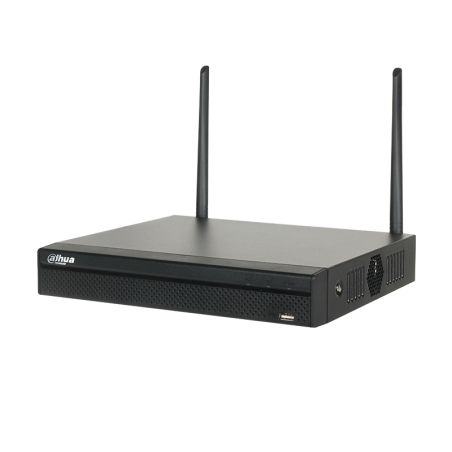

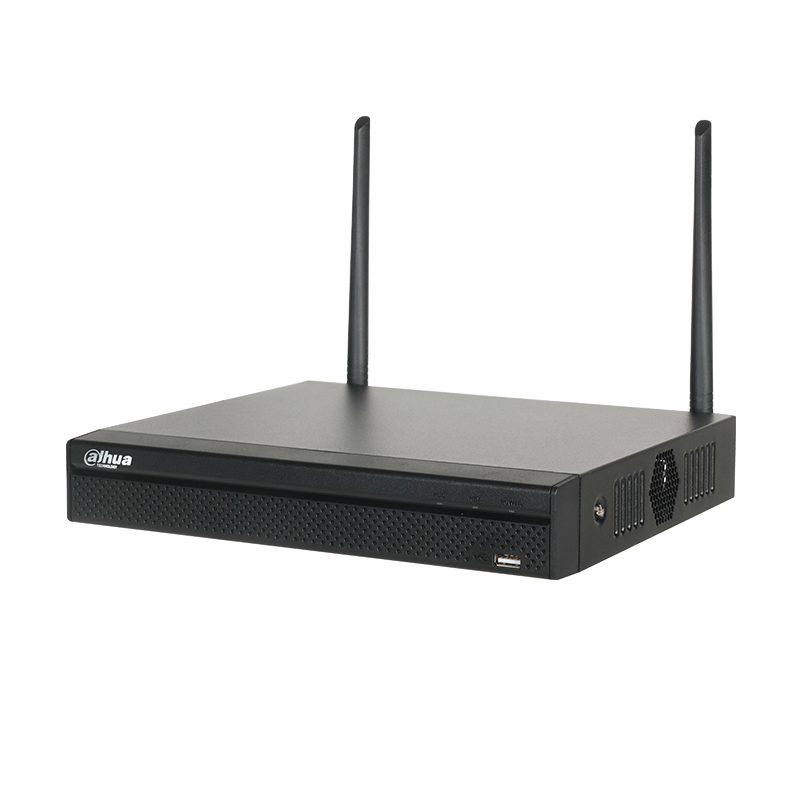

4-channel NVR recorder Dahua NVR2104HS-W-4KS2
€224.40
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | Wireless |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 4 channels |
| Max. camera resolution | 8 MP |
| Storage | 1 x SATA III port, capacity up to 4TB |
Video
| Recording | 8MP / 6MP / 5 MP / 4MP / 3MP / 1080P etc. |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Bandwidth | Max. 80Mbps wired and max. 24Mbps wireless incoming |
| Bitrate | 16Kbps ~ 20Mbps per channel |
| Bitrate control | CBR/VBR |
| OSD menu | Camera name, time and date, camera lock, motion detection, recording |
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Recording mode | Manual, scheduled, MD, on stop |
| Recording interval | 1~120 minutes (default 60 minutes), pre-event 1~30 seconds, post-event 10~300 seconds |
| Recording playback | 1/4 |
| Playback features | Play, Pause, Stop, Rewind, Fast forward, Slow playback, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Archive record search by | Date and time, MD and exact search to the second |
| Backup | USB device / network |
Smart features
| Motion detection | yes |
| Detection of | Motion, MD Zones: 396 (22 × 18) and tampering |
Certification
| Certifications | CE (EN55032, EN55024, EN50130-4, EN60950-1) FCC (Part 15 Subpart B, ANSI C63.4-2014) UL (UL60950-1) |
| Third-party compatible | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
Additional ports
| Video port | 1 x HDMI, 1 x VGA |
| USB | 2 USB 2.0 |
| Video port resolution | HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Multi-screen video output | 1/4/8/9 |
Network features
| Wi-Fi | IEEE802.11b/g/n, 50m outdoors |
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Compatibility | ONVIF 2.4, SDK, CGI |
| Max. number of users | 128 |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | Smart PSS, DSS, DMSS |
Power supply
| Power supply | DC 12V/2A |
| Power consumption | < 6.6W |
Operating conditions
| Operating temperature | 0°C to +40°C |
| Operating humidity | 0% to 90% RH (non-condensing) |
| Storage temperature | -20°C to +70°C |
Construction
| Dimensions | 226 mm × 226.9 mm × 40.4 mm |
| Net weight | 1.3 kg |
| Gross weight | 2 kg |
