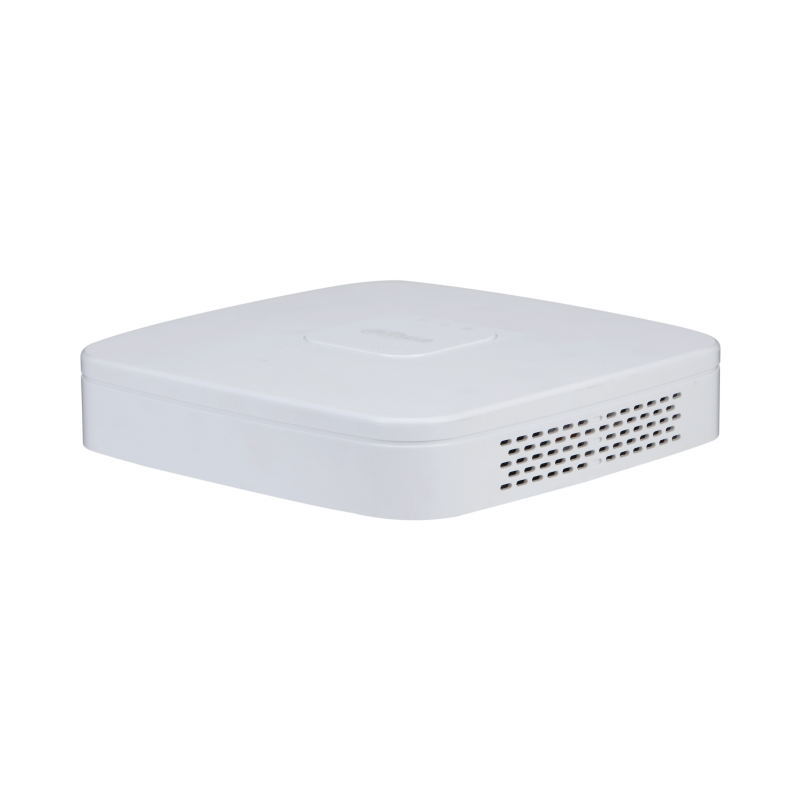

4-channel NVR recorder Dahua NVR4104-EI
€199.92
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | White |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 4 channels |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Max. camera resolution | 16 MP |
| Storage | 1 SATA port, up to 16TB |
Video
| Video compression | H.265/H.264 |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | 80 Mbps incoming |
| Decoding Capacity | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps |
| Recording playback | Up to 4 channels |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| Performance | 2 channel, 10 IVS rules for each channel |
| AI features | Face detection, Face recognition, Heat map, Intrusion, Perimeter protection, License plate recognition, SMD Plus (human/vehicle detection), Stereo behavior analytics, Line crossing, People counting |
| Perimeter protection by camera | 4 channels |
| Perimeter protection by recorder | 2 channels, 10 IVS rules per channel |
| SMD Plus by camera | 4 channels |
| SMD by recorder | 4 channels |
| Face recognition by camera | 4 channels |
| Face recognition by recorder | 4-channel FD (by camera) + FR (by recorder), image stream: 12 face images/sec., 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/sec. |
| Face detection by camera | 4 channels |
| Face detection by recorder | 1 channel |
Smart features
| Motion detection | yes |
| Smart motion detection | yes |
| Alarm signal | Motion detection, masking, video loss, scene change, PIR alarm, IPC alarm, external alarm |
Certification
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014 |
| Third-party compatible | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 2 USB 2.0 |
| Video port resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | Screen 1: 1/4; Screen 2: 1/4 |
| Audio compression | G.711a; G.711u; PCM; G726 |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Compatibility | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | DC 12V/2A |
| Power consumption | < 10W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 93% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 204.6 mm × 206.4 mm × 45.6 mm |
| Net weight | 0.45 kg |
| Gross weight | 1.07 kg |
