- New

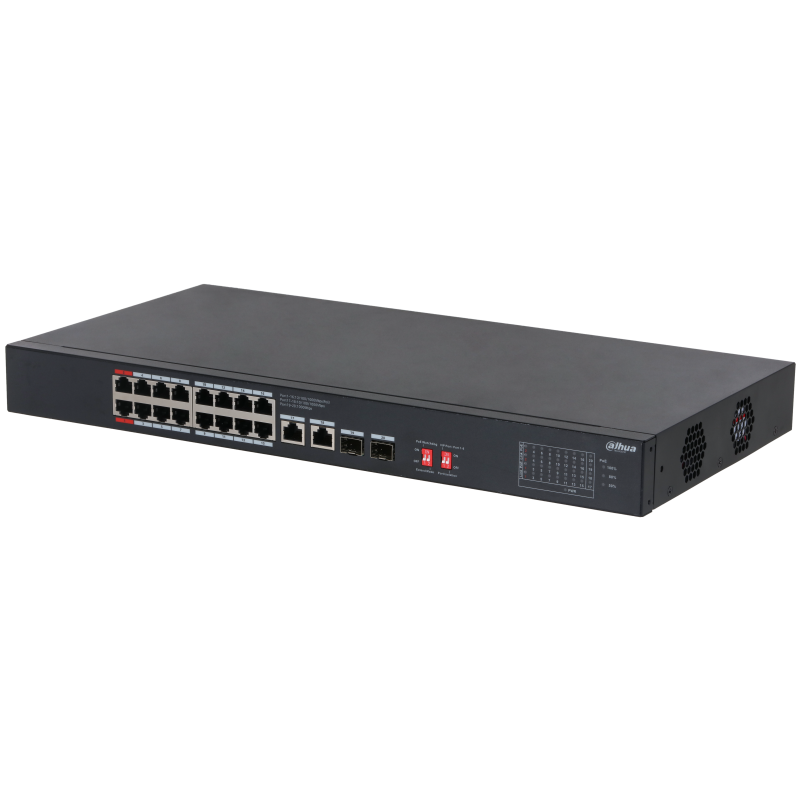

Switch Dahua S3220-16GT-240
€326.40
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | no |
| Gigabit | yes |
| PoE | yes |
| Hi-PoE | Ports 1 and 2: 90W (orange ports) |
| Number of ports | 16 |
| Mounting type | Communication cabinet or free-standing |
Detailed specifications
| Ethernet ports | 16 × RJ-45 10/100/1000 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (Uplink); 2 × SFP 1000 Mbps (Uplink) |
| Optical ports | 2*1000 Mbps |
| PoE consumption | Ports 1 and 2 ≤90W, Ports 3 to 16 ≤30W, Total ≤240W |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| Compliant with standards | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
| Switching capacity | 40 Gbps |
| Packet forwarding rate | 29.76Mpps |
| Packet buffer memory | 4Mb |
| MAC table | 8000 |
| Power supply | AC100~240V, 50/60Hz, 4A |
| Operating temperature | -10°C ~ 55°C |
| Operating humidity | 5% ~ 95% (non-condensing) |
| Electrostatic protection | Air discharge 8KV, Contact discharge 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Weight (net) | 2.32 kg |
| Dimensions (W x L x H) | 440mm × 220mm × 44mm |
