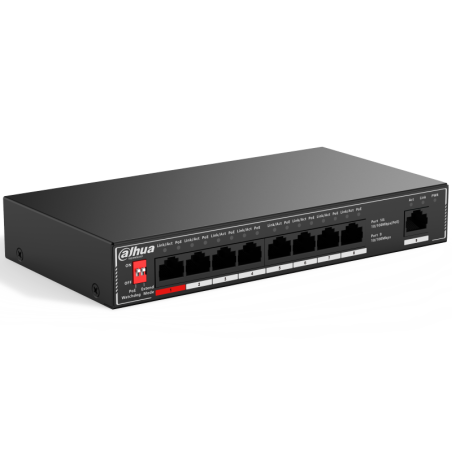

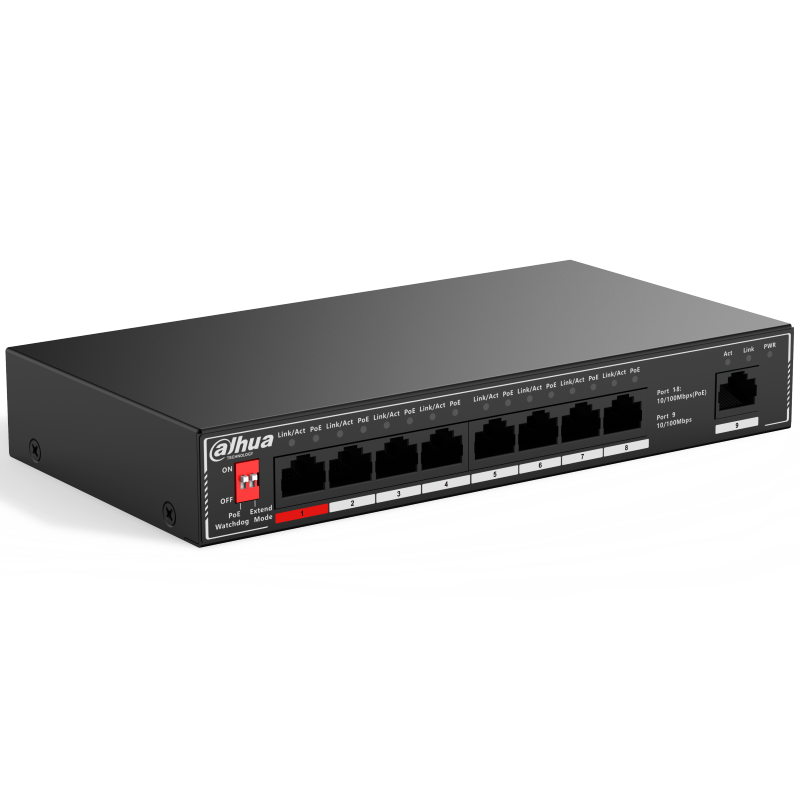

Switch Dahua SF1009P
€64.91
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | no |
| Layer | Layer 2 |
| Gigabit | no |
| PoE | yes |
| Hi-PoE | Port 1 |
| Number of ports | 8 |
| Mounting type | Wall or free-standing |
Detailed specifications
| Ethernet ports | 8 × RJ-45 10/100 Mbps (PoE), 1 × RJ-45 10/100 Mbps (Uplink) |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Watchdog | yes |
| Compliant with standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3X |
| Switching capacity | 1.8Gbps |
| Packet forwarding rate | 1.34Mpps |
| Packet buffer memory | 768Kb |
| MAC table | 2000 |
| Power supply | 48–57 VDC, 2–1.68 A |
| Operating temperature | -10°C ~ 55°C |
| Operating humidity | 5% ~ 95% |
| Electrostatic protection | Air discharge - 8KV; Contact discharge - 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Weight (net) | 0.49 kg |
| Dimensions (W x L x H) | 190mm × 100mm × 30mm |
