- New

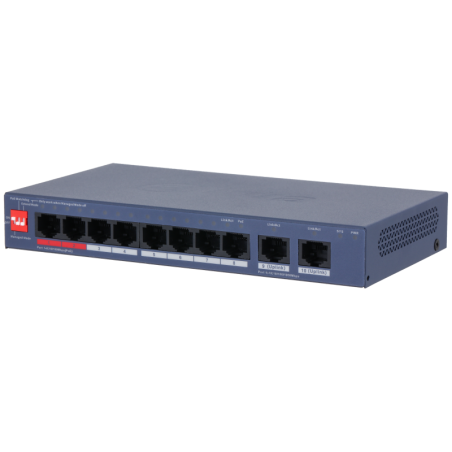

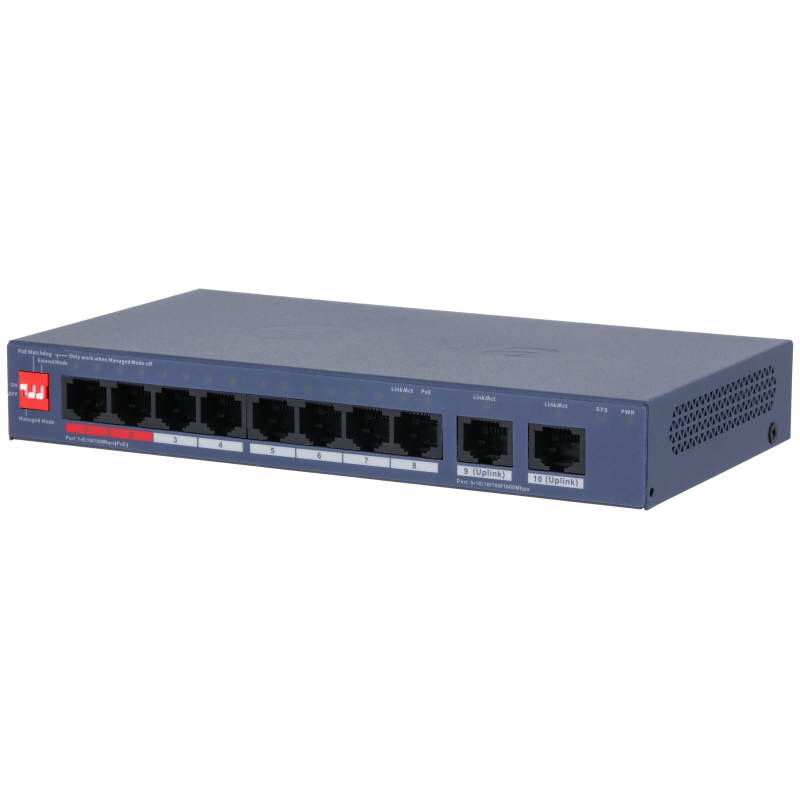

Switch Dahua CS4010-8ET2GT-110
€83.64
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | yes |
| Layer | Layer 2 |
| Gigabit | no |
| PoE | yes |
| Hi-PoE | Ports 1 and 2: 90W |
| Number of ports | 8 |
| Mounting type | Wall or free-standing |
| Usage type | Standard environment |
Detailed specifications
| Ethernet ports | 8 × RJ-45 10/100 Mbps (PoE); 2 × RJ-45 10/100/1000 Mbps (uplink) |
| PoE consumption | Ports 1 and 2 ≤90W, Ports 3 to 8 ≤30W, Total ≤110W |
| PoE pin assignment | Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-) Port 3-8: 1,2, (V+),3,6, (V-) |
| PoE protocols | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Watchdog | yes |
| Compliant with standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az |
| Switching capacity | 5.6Gbps |
| Packet forwarding rate | 4.17Mpps |
| Packet buffer memory | 4Mbit |
| MAC table | 8000 |
| Flow control | Supports IEEE802.3X-based flow control |
| Power supply | 54 VDC, 2.22 A |
| Operating temperature | -10°C ~ 55°C |
| Operating humidity | 10% ~ 90% (non-condensing) |
| Electrostatic protection | Air discharge - 8KV; Contact discharge - 6KV |
| Lightning protection | Common mode 6KV, Differential mode 1KV |
| Dimensions (W x L x H) | 184.6mm × 103.3mm × 27mm |
Additional features
| VLAN support | 802.1Q |
| Port mirroring | Local Port Mirroring, N:1 Mirroring |
| DHCP support | DHCP client |
| Security features | Port isolation |
| Control | Web Management, Cloud Management, Logs, Fault Alarm |
| PoE management | Power consumption management, Power on/off, Overload power cut-off |
