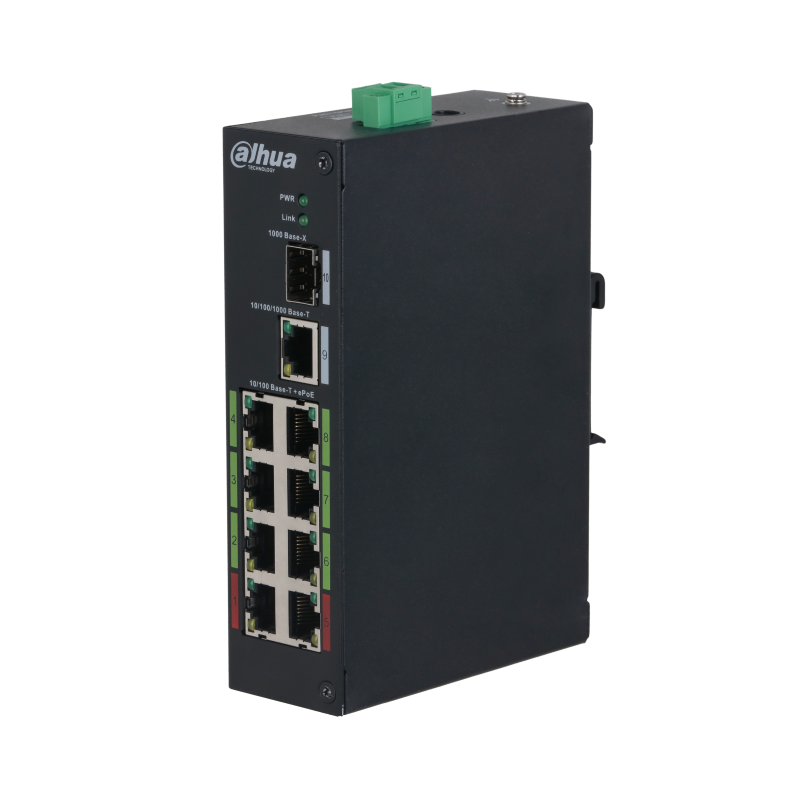

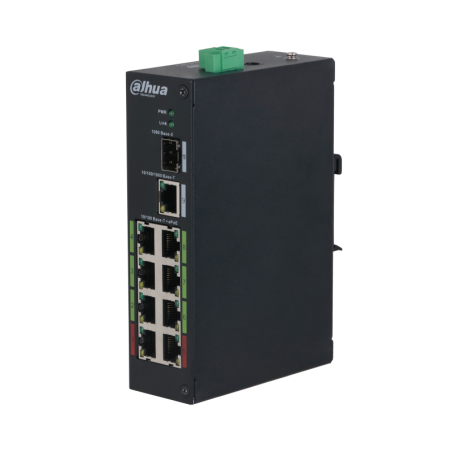

Switch Dahua LR2110-8ET-120
€237.66
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | no |
| Layer | Layer 2 |
| PoE | yes |
| Hi-PoE | Ports 1 and 5: 90W (orange ports) |
| Number of ports | 8 |
| Mounting type | DIN rail, Communication cabinet |
Detailed specifications
| Ethernet ports | 8 × RJ-45 10/100 Mbps (PoE), 1 × RJ-45 10/100/1000 Mbps (uplink), 1 × SFP 1000 Mbps (uplink) |
| Optical ports | 1*1000 Mbps |
| PoE consumption | Ports 1 and 5 ≤60W, Ports 2 to 4 and 6 to 8 ≤30W, Total ≤120W |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| Compliant with standards | IEEE802.3, IEEE802.3u, IEEE802.3ab/z, IEEE802.3X |
| Switching capacity | 8.8G |
| Packet forwarding rate | 5.36Mpps |
| Packet buffer memory | 2.75Mb |
| MAC table | 8000 |
| Power supply | 54 VDC, 2.22 A |
| Operating temperature | -30°C ~ 65°C |
| Operating humidity | 5% ~ 90% (non-condensing) |
| Electrostatic protection | Air discharge 8KV, Contact discharge 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Weight (net) | 0.6 kg |
| Dimensions (W x L x H) | 150mm × 100mm × 42mm |
