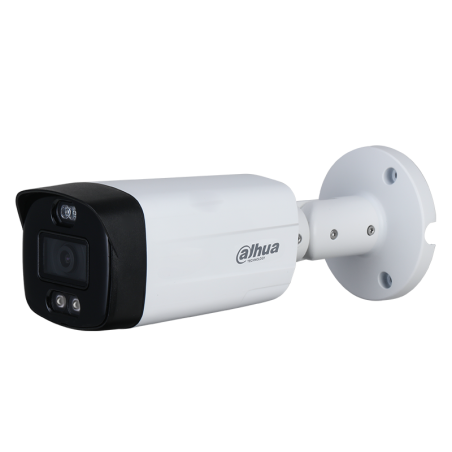

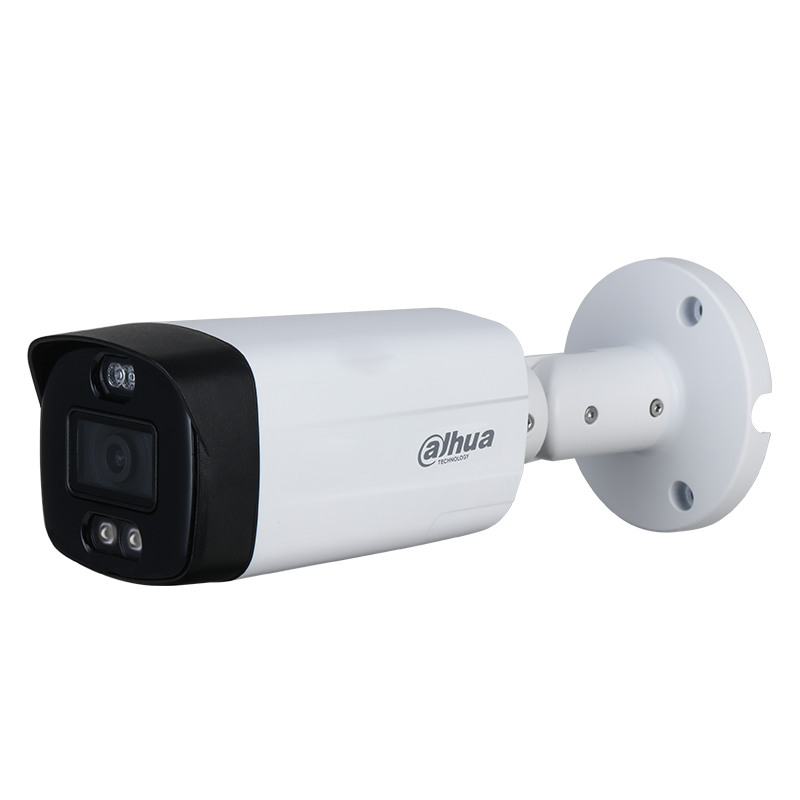

Analog camera Dahua HAC-ME1509TH-PV-0360B
€113.22
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | TiOC |
| Color | White |
| Image sensor | 1/2.7” 5 Megapixel Progressive CMOS |
| Resolution | 5M (2880 × 1620) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.005Lux/F1.2, 0Lux White Light on |
| Fill light (white light) distance up to | 40 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 2 |
Camera
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 3.6 mm |
| Mounting type | M12 |
| Max. aperture | F1.2 |
| Field of view | 83° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 1.9 m |
Video
| Frames per second | CVI: 5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps; AHD: 5M@20 fps; TVI: 5M@20 fps; CVBS: 960H |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto / manual |
| Gain Control | Auto / manual |
| Noise reduction | 2D |
| Smart illumination | Yes |
| Mirror image | On/off |
| Privacy masks | On/off (8 zones, rectangle) |
| Low-light visibility technology | Full-Color |
| Full-Color | Yes |
Perimeter protection
| AI features | TiOC (red and blue light alarm) |
Certification
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) IEC 62368-1:2014 (Second Edition) |
Additional ports
| Alarm output | 1 |
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
Network features
| Compatible accessories | PFA13G, PFA130-E, PFA152-E |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | Max. 7.7W (12V DC, warm light on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø90.7 mm × 240.7 mm |
| Net weight | 0.44 kg |
| Gross weight | 0.70 kg |
