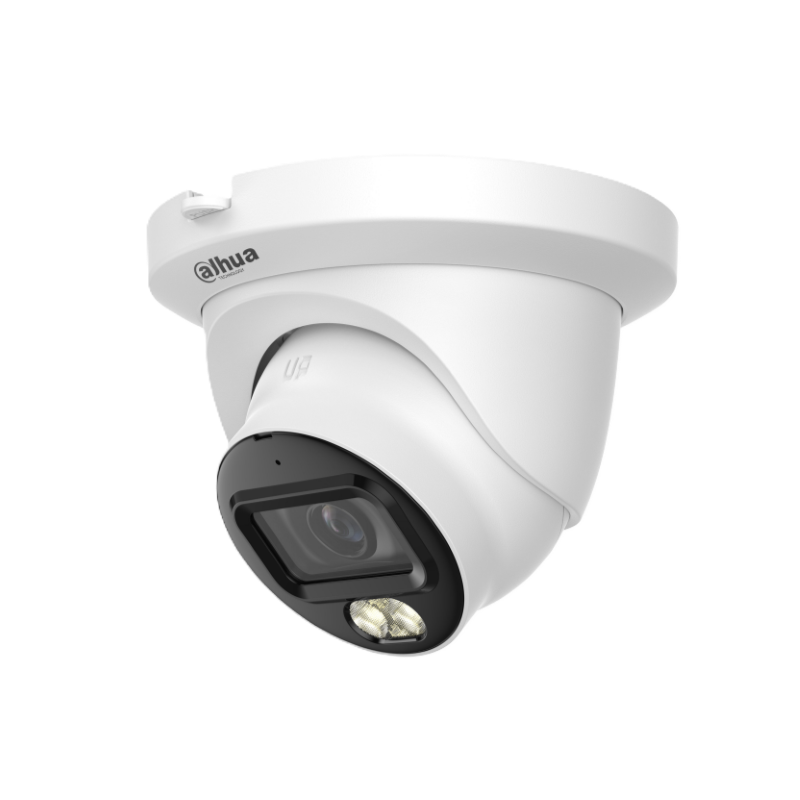

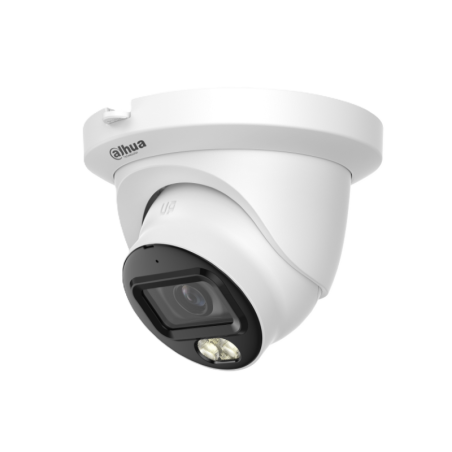

Analog camera Dahua HAC-HDW1500TLMQ-IL-A-0280B-S3-DIP
€55.08
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 5 Megapixel Progressive CMOS |
| Resolution | 5M (2880 × 1620) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Auto |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Automatic |
| Number of fill LED lights | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F1.6 |
| Field of view | 113.3° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.8 m |
Video
| Frames per second | CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto; Area WB |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
Perimeter protection
| AI features | Privacy masking, Smart Dual Illuminators |
Smart features
| Motion detection | yes |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Additional ports
| Video port | CVI/TVI/AHD/CVBS video output selectable over one BNC port (DIP switch) |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFA109, PFA13G, PFA150, PFA151, PFA156, PFB2203W, PFB220C, PFB305W |
Power supply
| Power supply | 12 VDC (±30%) |
| Power consumption | Max. 4.3 W (12 VDC, WLED on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø109.9 mm × 88.1 mm |
| Net weight | 0.33 kg |
| Gross weight | 0.44 kg |
