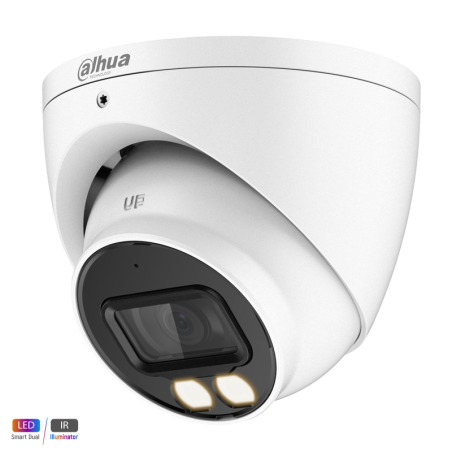

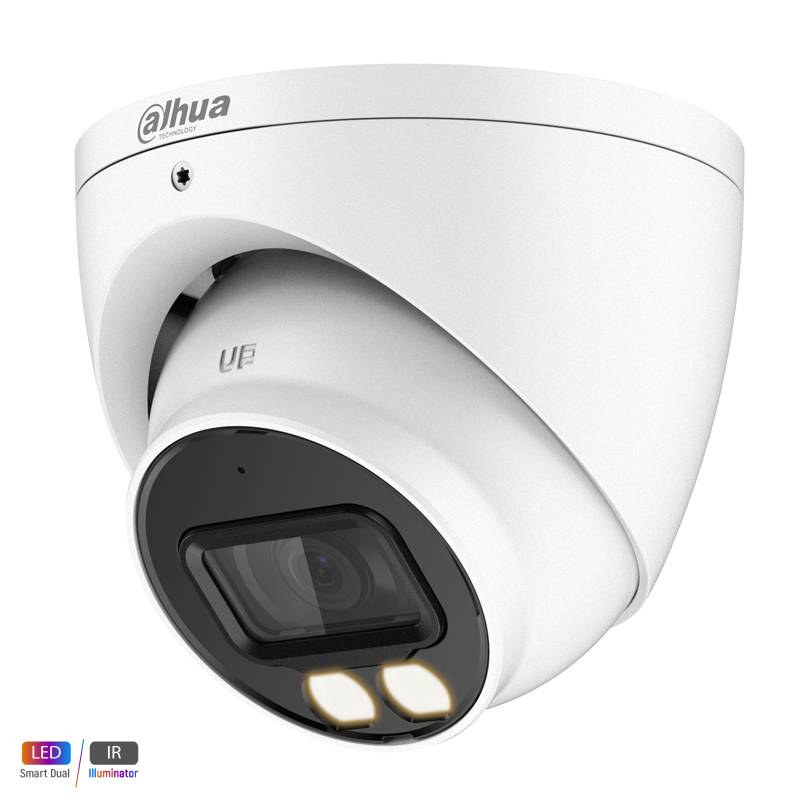

Analog camera Dahua HAC-HDW1509T-IL-A-0280B-S2
€86.70
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 1/2.7” 5 Megapixel Progressive CMOS |
| Resolution | 5M (2880 × 1620) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/3s~1/100,000s NTSC: 1/4s~1/100,000s |
| Minimum illumination | 0.001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 40 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 40 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Zoom | 4x digital |
| Mounting type | M12 |
| Max. aperture | F1.0 |
| Field of view | 111° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 1.5 m |
Video
| Frames per second | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| White balance | Auto; Area WB |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
| Software defog | yes |
Perimeter protection
| AI features | Defog (electronic fog removal), ROI (Region of interest) |
Certification
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFA130-E, PFB204W, PFA152-E, PFA151, PFA106, PFB220C |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | < 5.7 W |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | Ø106.0 mm × 93.6 mm |
| Net weight | 0.49 kg |
| Gross weight | 0.66 kg |
