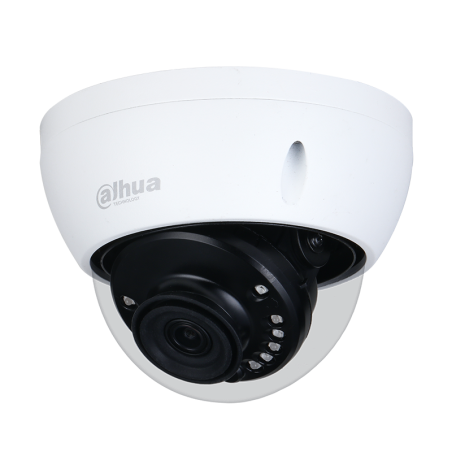

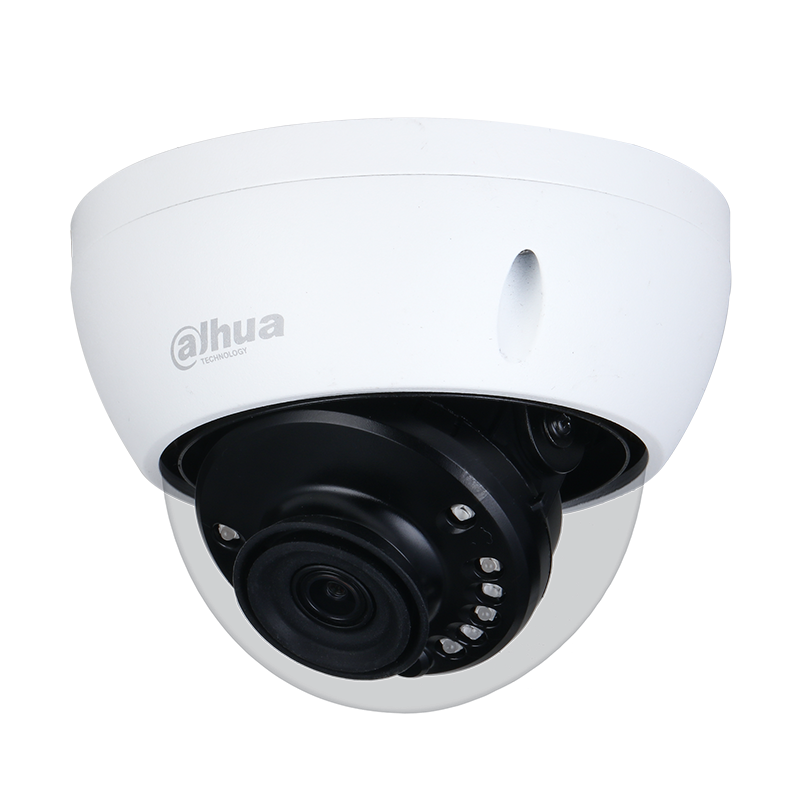

Analog camera Dahua HAC-HDBW1500E-0280B-S2
€68.34
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Lite |
| Color | White |
| Image sensor | 1/2.7” 5 Megapixel Progressive CMOS |
| Resolution | 5M (2880 × 1620) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on |
| Day/night modes | Auto (ICR) |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 12 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 355° (pan); 0° - 65° (tilt); 0° - 355° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F1.6 |
| Field of view | 111° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.9 m |
Video
| Frames per second | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto / manual |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR |
| Smart illumination | Yes |
| Mirror image | On/off |
| Privacy masks | On/off (8 zones, rectangle) |
| Low-light visibility technology | Starlight |
Certification
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | Max. 3.5W (12V DC, IR on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø109.9 mm x 81 mm |
| Net weight | 0.31 kg |
| Gross weight | 0.45 kg |
