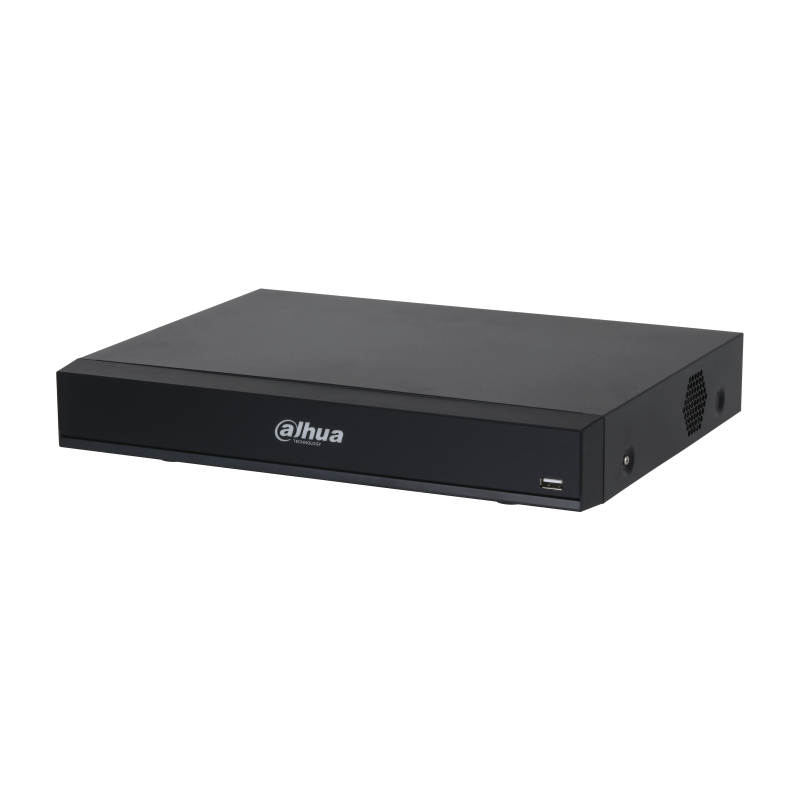

8-channel XVR recorder Dahua XVR7108H-4K-I3
€563.04
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | 4K |
| Color | Black |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| Analog camera input | 8 channels, BNC |
| IP camera input | 8+8 channels |
| Supports HDCVI cameras | 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps |
| AHD cameras | 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| TVI cameras | 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| Resolution | 4K, 6MP, 5MP, 4MP, 1080P, 720P |
| Max. camera resolution | 8 MP |
| Storage | 1 SATA port, up to 16TB |
Video
| Video compression | H.265/H.264 |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | 128 Mbps incoming |
| Bitrate | 32 kbps–8192 kbps |
| Recording mode | Main, motion detection; smart; alarm; POS |
| Recording playback | 1/4/9 |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| AI features | Quick Pick, Intrusion, Perimeter protection, Line crossing, Privacy Protection, Face detection, Face recognition, SMD Plus (human/vehicle detection), AI Video Quality Analytics, Scene Changing, Irregular Black Block Masking, E-PTZ |
| Perimeter protection by recorder | Advanced mode: 2 channels, 10 IVS per channel; General mode: 8 channels, 10 IVS per channel |
| SMD Plus by camera | 16 channels |
| SMD by recorder | 8 channels |
| Face recognition by recorder | 2 |
| Face detection by recorder | 2 channels |
Smart features
| Smart motion detection | yes |
| Alarm signal | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
Certification
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Third-party compatible | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Additional ports
| Audio input | 1-channel RCA, 8-channel BNC (Coaxial Audio) |
| Audio output | 1 (RCA port) |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port |
| RS485 | 1 |
| Video port resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | With IP extension mode off: 1/4/8/9; With IP extension mode on: 1/4/8/9/16 |
| Two-way audio | Yes |
| Audio compression | G.711a; G.711u; PCM |
| Audio sample rate | 8KHz, 16 bit per channel |
| Audio bitrate | 64 Kbps per channel |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Compatibility | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | IE, Chrome, Firefox, Safari |
Power supply
| Power supply | 12 VDC, 3 A |
| Power consumption | < 15W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 325 mm × 254.3 mm × 55 mm |
| Net weight | 1.2 kg |
| Gross weight | 1.9 kg |
